Front Passenger Side Seat Belt Warning Light Malfunction: Description

  1. CHECK COMBINATION METER ASSEMBLY
    1. Measure the resistance of the connector.

      Standard resistance

      Fig 1: Identifying Combination Meter Assembly Terminal
      G04158917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      C11-8 (P-BELT) - Body ground Ignition switch is OFF, sit on passenger seat, passenger seat belt is unfastened Below 1 Ω

    OK : Go to step   6

    NG : GO TO NEXT STEP

  2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
    1. Disconnect the B7 connector.
    2. Measure the resistance of the belt.

      Standard resistance

      Fig 2: Disconnecting B7 Connector
      G04158918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      1 - 3 Seat belt is unfastened (occupant detection sensor ON) Below 1 Ω

    NG : REPLACE FRONT SEAT INNER BELT ASSEMBLY RH

    OK : GO TO NEXT STEP

  3. INSPECT SEPARATE TYPE FRONT SEAT CUSHION PAD
    1. Disconnect the B7 connector.
    2. Measure the resistance of the belt.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      1 - 2 Seat belt is fastened Below 1,330 Ω
      1 - 2 Seat belt is unfastened Below 330 Ω
      Fig 3: Disconnecting B7 Connector
      G04158919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE SEPARATE TYPE FRONT SEAT CUSHION PAD

    OK : GO TO NEXT STEP

  4. CHECK WIRE HARNESS (COMBINATION METER - FRONT SEAT INNER BELT RH)
    1. Disconnect the C11 meter connector.
    2. Disconnect the B7 belt connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      C11-8 (P-BELT) - B7-3 Below 1 Ω
      C11-8 (P-BELT) - Body ground 10 kΩ or higher

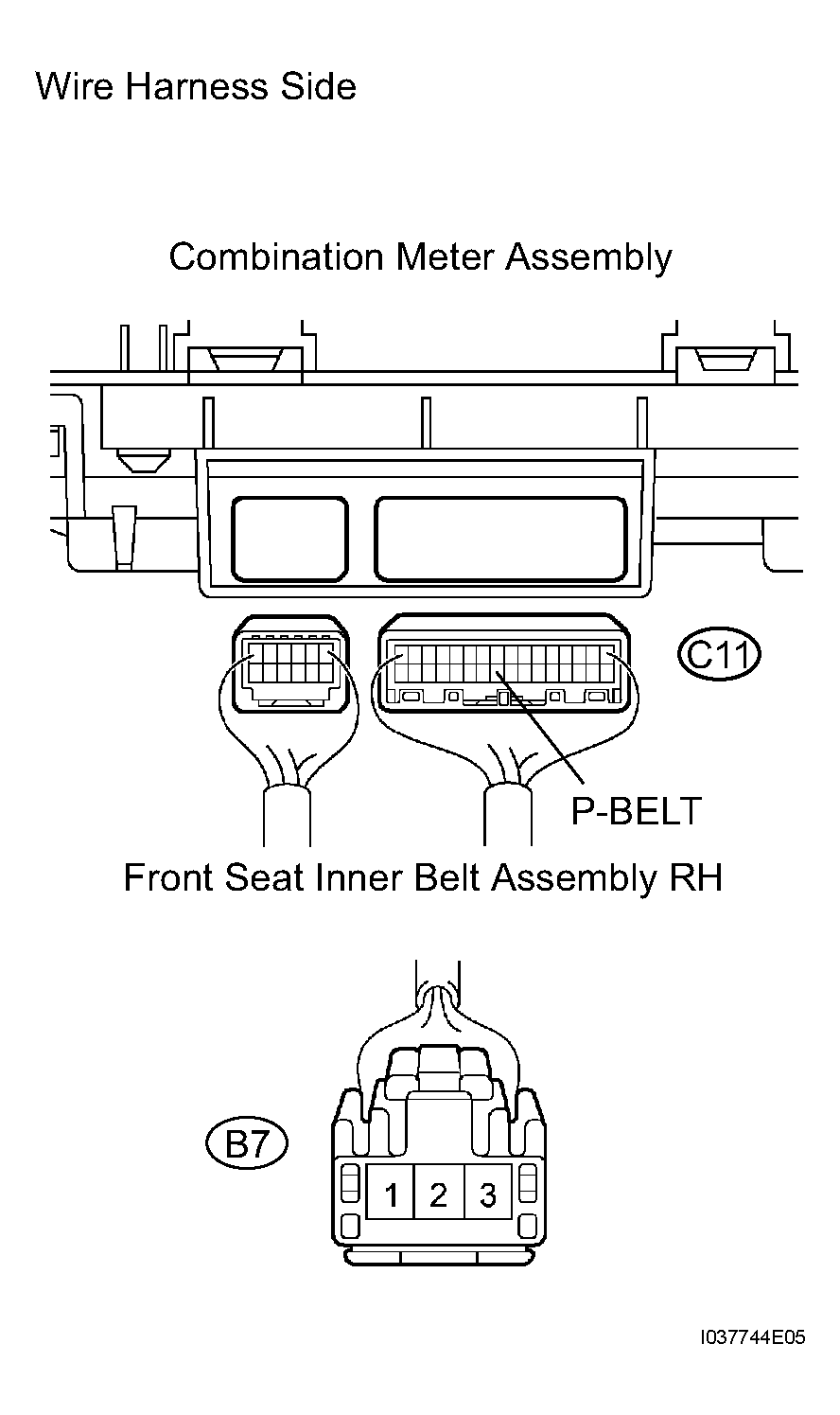

      Fig 4: Disconnecting C11 Meter Connector
      G04158920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : GO TO NEXT STEP

  5. CHECK WIRE HARNESS (FRONT SEAT INNER BELT RH - CENTER AIRBAG SENSOR)
    1. Disconnect the B7 belt connector.
    2. Disconnect the A11 sensor connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      B7-1 - A11-3 (RBE-)(1) Below 1 Ω
      B7-1 - A11-2 (RBE-)(2) Below 1 Ω
      B7-1 - Body ground 10 kΩ or higher
      (1) w/ Side airbag
      (2) w/o Side airbag

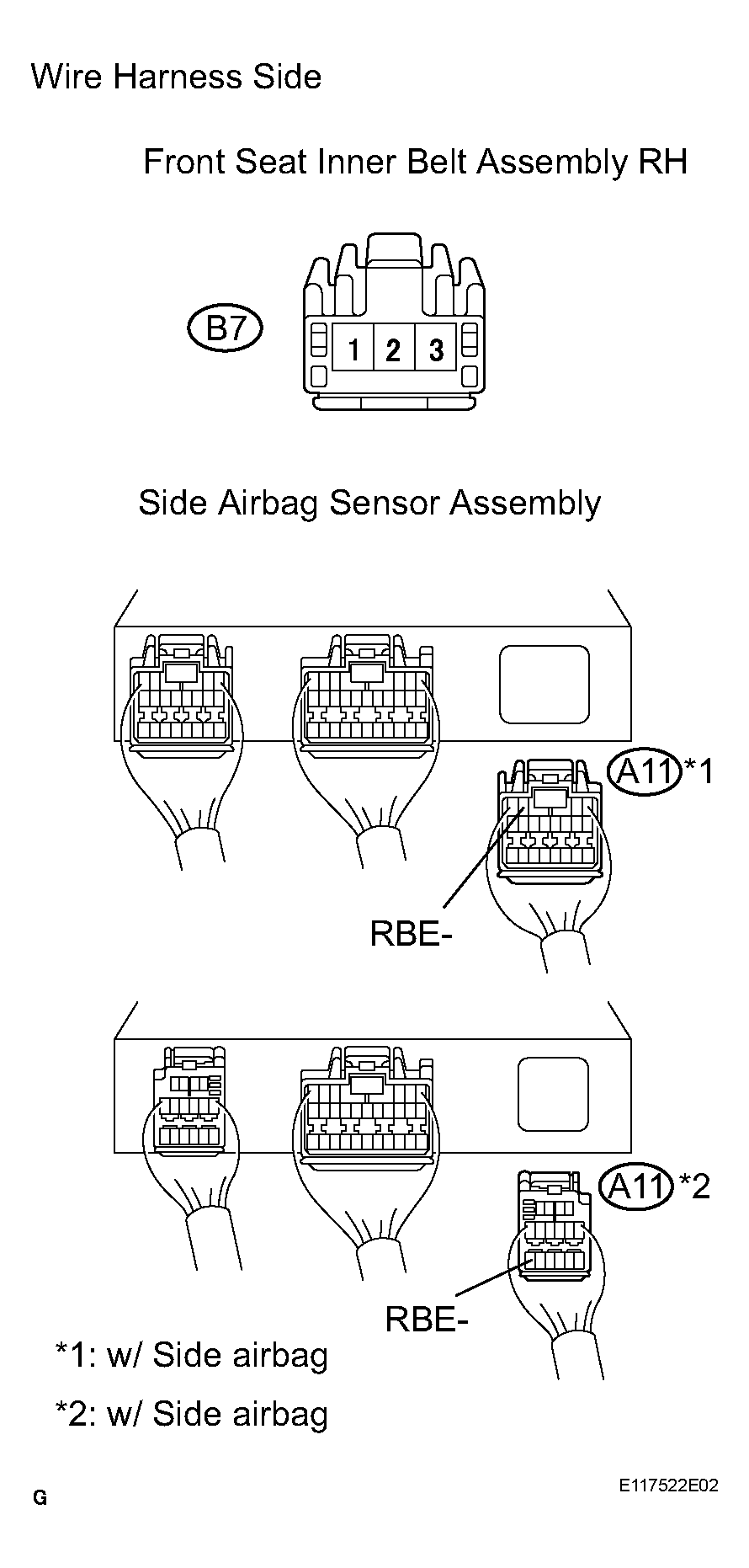

      Fig 5: Disconnecting B7 Belt Connector
      G04158921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : REPLACE COMBINATION METER ASSEMBLY

  6. CHECK COMBINATION METER ASSEMBLY (P-BELT OUT VOLTAGE)
    1. Remove the combination meter but do not disconnect the connector.
    2. Measure the voltage of the connector.

      Standard voltage

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      C10-6 (P-BELT OUT) - Body ground Ignition switch ON 10 to 14 V
      Fig 6: Identifying Combination Meter Assembly (P-Belt Out Voltage) Terminal
      G04158922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE COMBINATION METER ASSEMBLY

    OK : GO TO NEXT STEP

  7. INSPECT CENTER CLUSTER MODULE SWITCH (SEAT BELT WARNING LIGHT FOR PASSENGER'S SEAT)
    1. Remove the center cluster module switch.
    2. Apply battery voltage to the terminals of the module switch and check that the passenger seat belt warning light.

      OK : GO TO NEXT STEP

      MEASUREMENT CONDITION AND SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 9
      Battery negative (-) --> Terminal 1      		 Seat belt warning light turns on
      Fig 7: Identifying Center Cluster Module Switch Terminal
      G04158923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPLACE CENTER CLUSTER MODULE SWITCH

    OK :

  8. CHECK WIRE HARNESS (COMBINATION METER - CENTER CLUSTER MODULE SWITCH)
    1. Disconnect the C10 meter connector.
    2. Disconnect the C7 switch connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      C10-6 (P-BELT OUT) - C7-9 Below 1 Ω
      C10-6 (P-BELT OUT) - Body ground 10 kΩ or higher

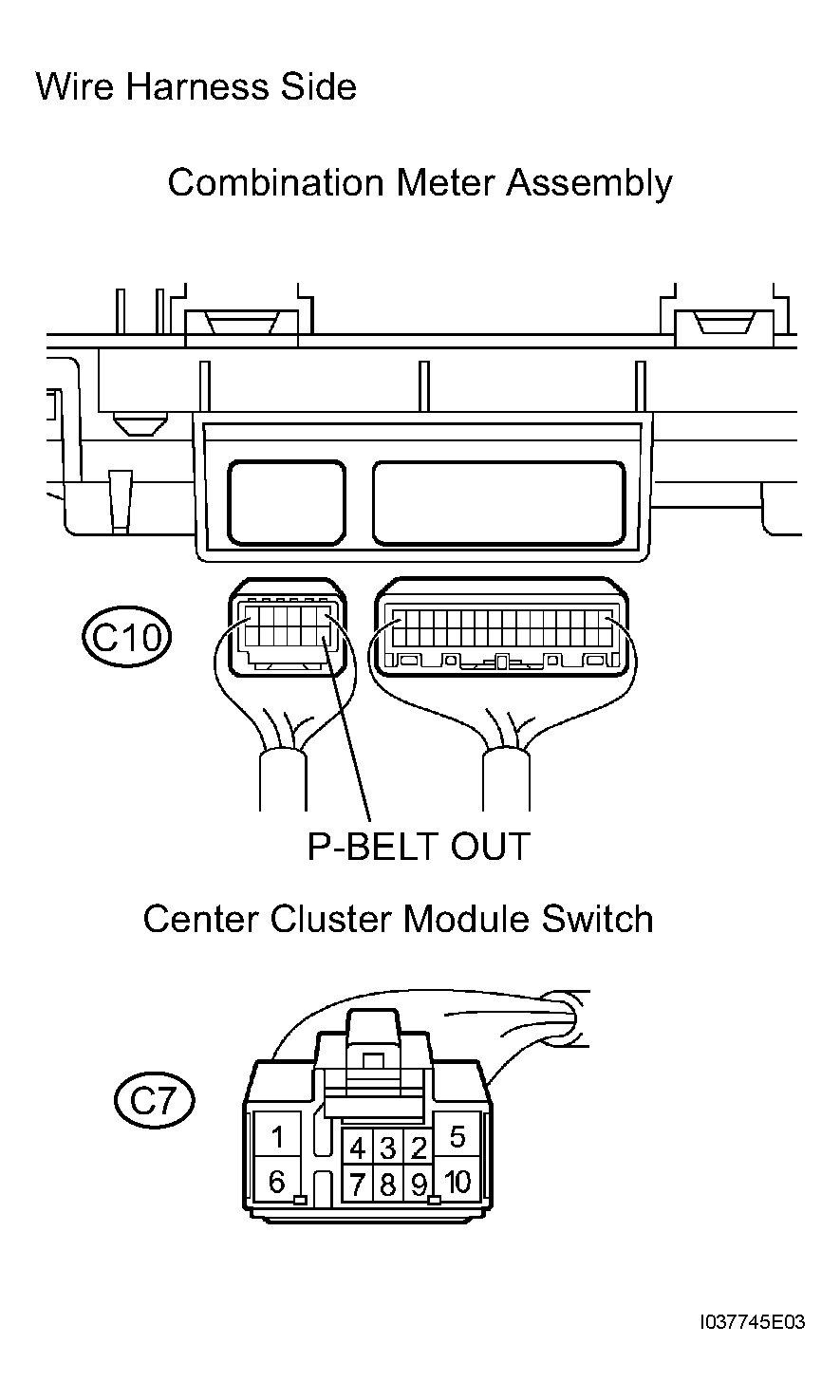

      Fig 8: Disconnecting C10 Meter Connector
      G04158924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : REPAIR OR REPLACE WIRE HARNESS (CENTER CLUSTER MODULE SWITCH - BODY GROUND)
