Inspection Procedure
- CHECK BUZZER (SEAT BELT, KEY REMINDER, TAILLIGHT REMINDER)
- Check that the seat belt, key reminder and taillight reminder warning buzzers sound.RESULT REFERENCE
Result Proceed to Seat belt warning buzzer does not sound A Key reminder warning buzzer does not sound B Taillight reminder warning buzzer does not sound (Meter illumination is normal) C All warning buzzers do not sound D
B : Go to step 5
C : Go to step 9
D : REPLACE COMBINATION METER ASSEMBLY
A : GO TO NEXT STEP
- Check that the seat belt, key reminder and taillight reminder warning buzzers sound.
- INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
- Remove the inner belt LH.
- Measure the resistance of the belt.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition B6-1 - B6-3 Seat belt is fastened 10 kΩ or higher B6-1 - B6-3 Seat belt is unfastened Below 1 Ω
NG : REPLACE FRONT SEAT INNER BELT ASSEMBLY LH
OK : GO TO NEXT STEP

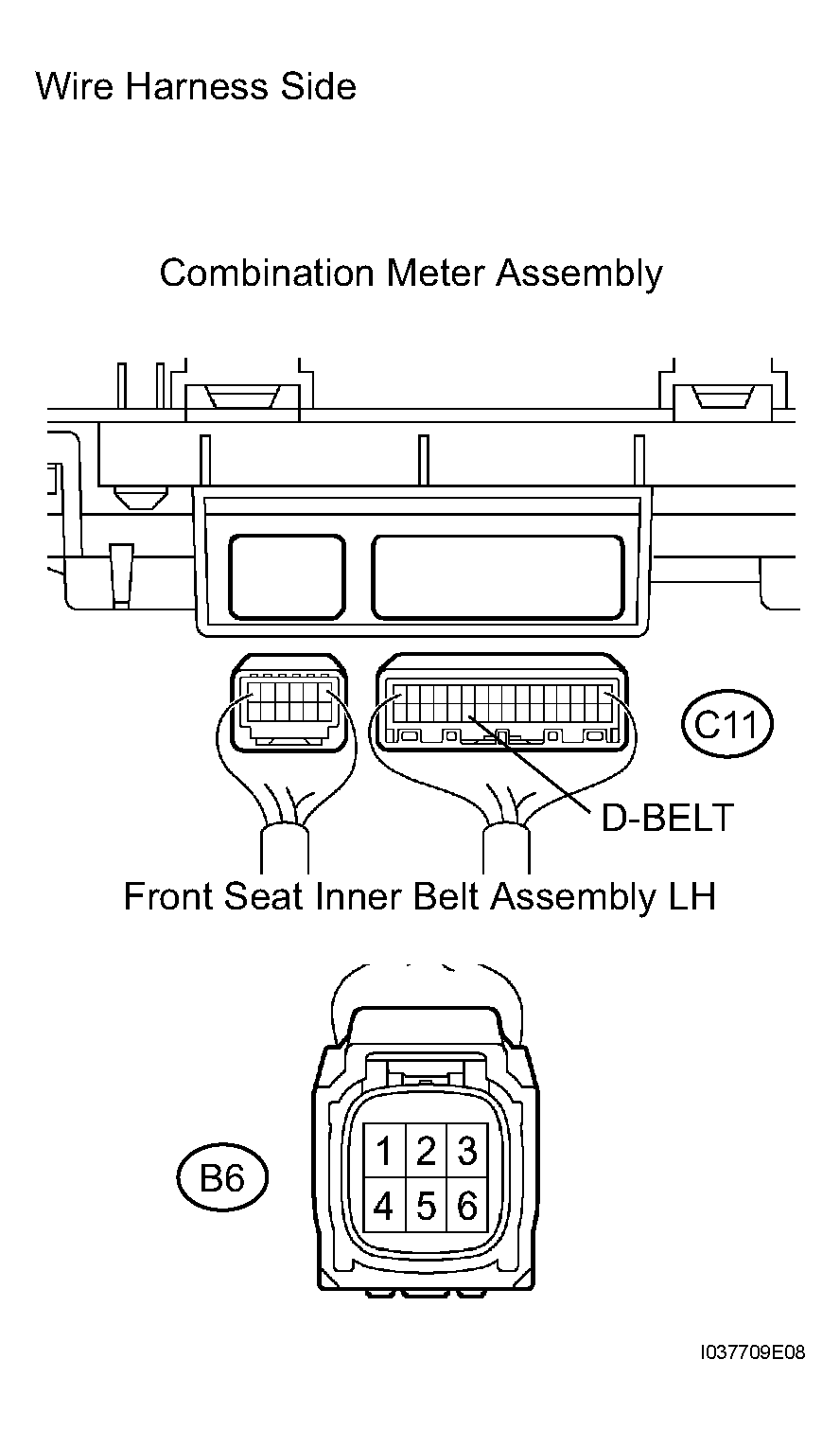

- CHECK WIRE HARNESS (COMBINATION METER - FRONT SEAT INNER BELT LH)
- Disconnect the C11 meter connector.
- Disconnect the B6 belt connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition C11-6 (D-BELT) - B6-3 Below 1 Ω C11-6 (D-BELT) - Body ground 10 kΩ or higher
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
OK : GO TO NEXT STEP

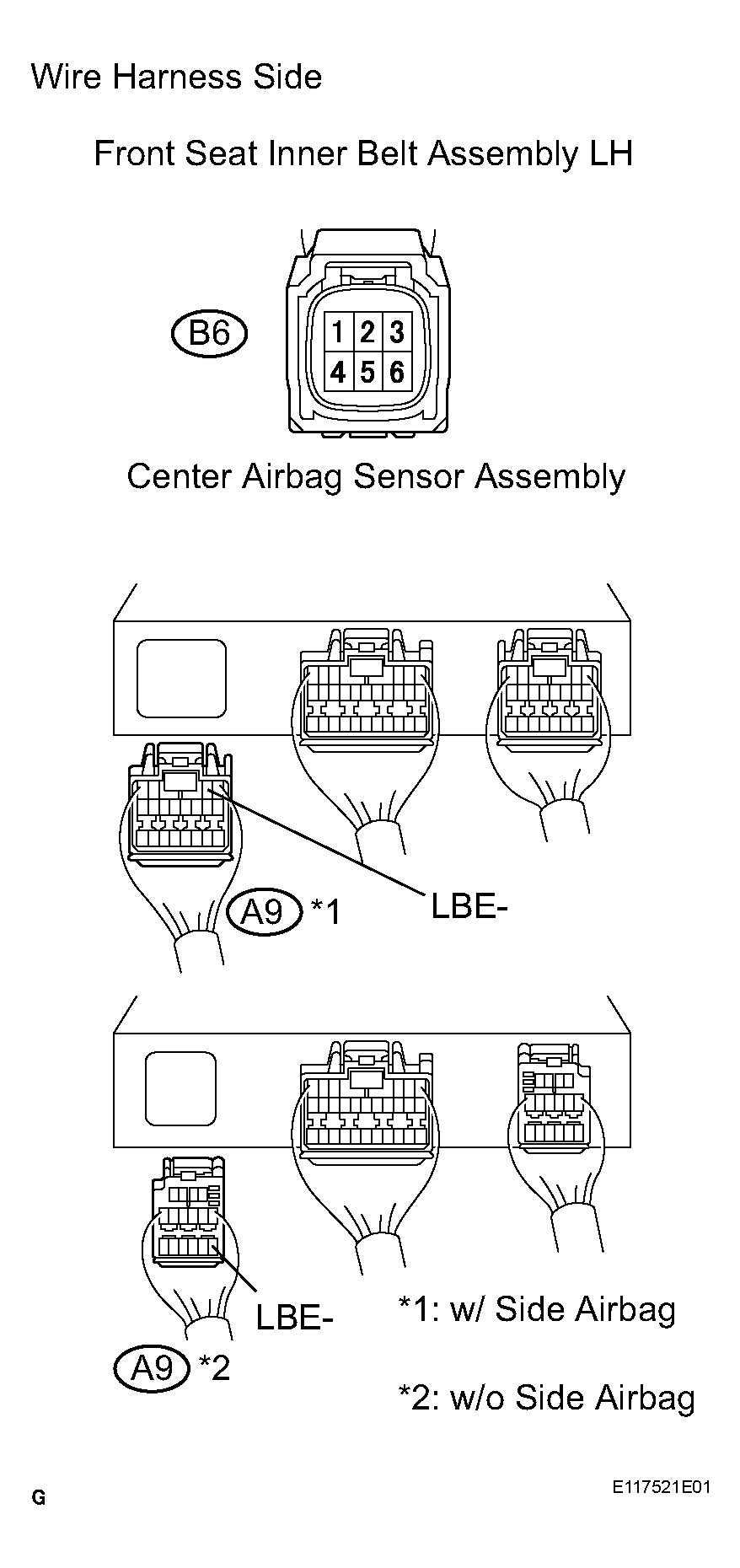

- CHECK WIRE HARNESS (FRONT SEAT INNER BELT LH - CENTER AIRBAG SENSOR)
- Disconnect the B6 belt connector.
- Disconnect the A9 sensor connector.
- measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition B6-1 - A9-2 (LBE-)(1) Below 1 Ω B6-1 - A9-7 (LBE-)(2) Below 1 Ω B6-1 - Body ground 10 kΩ or higher (1) w/ Side airbag (2) w/o Side airbag
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
OK : REPLACE COMBINATION METER ASSEMBLY

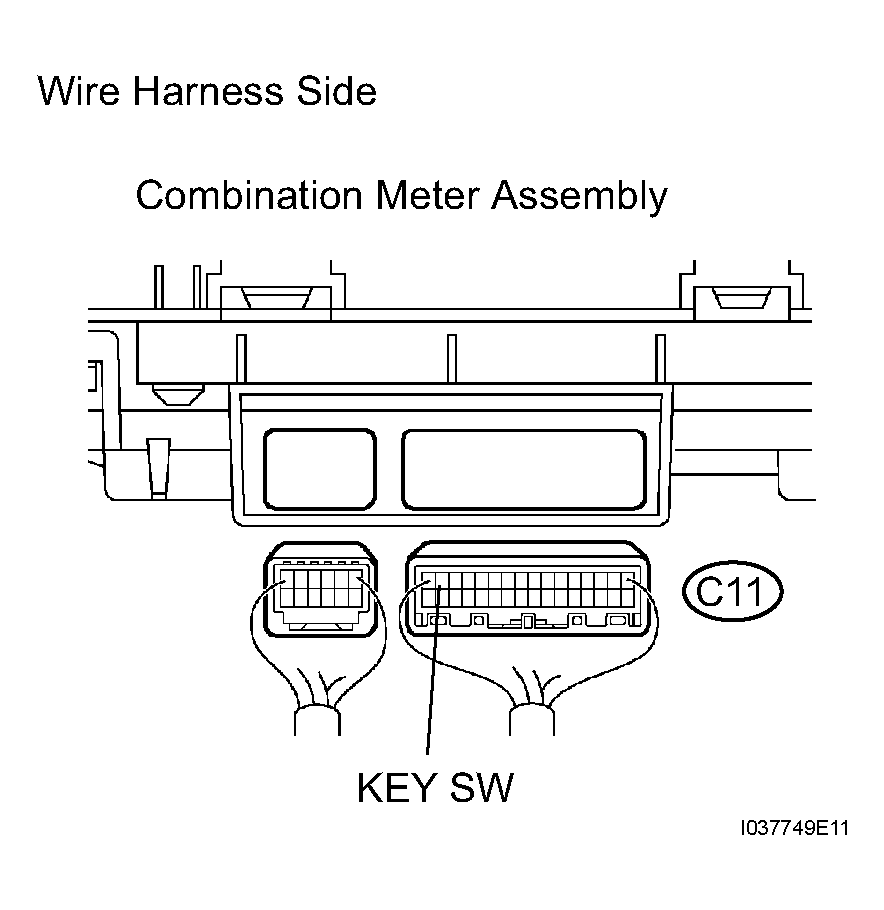

- CHECK WIRE HARNESS (COMBINATION METER - BODY GROUND)
- Disconnect the C11 meter connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition C11-18 (KEY SW) - Body ground No key in ignition key cylinder 10 kΩ or higher C11-18 (KEY SW) - Body ground key in ignition key cylinder Below 1 Ω
NG : Go to step 7
OK : GO TO NEXT STEP

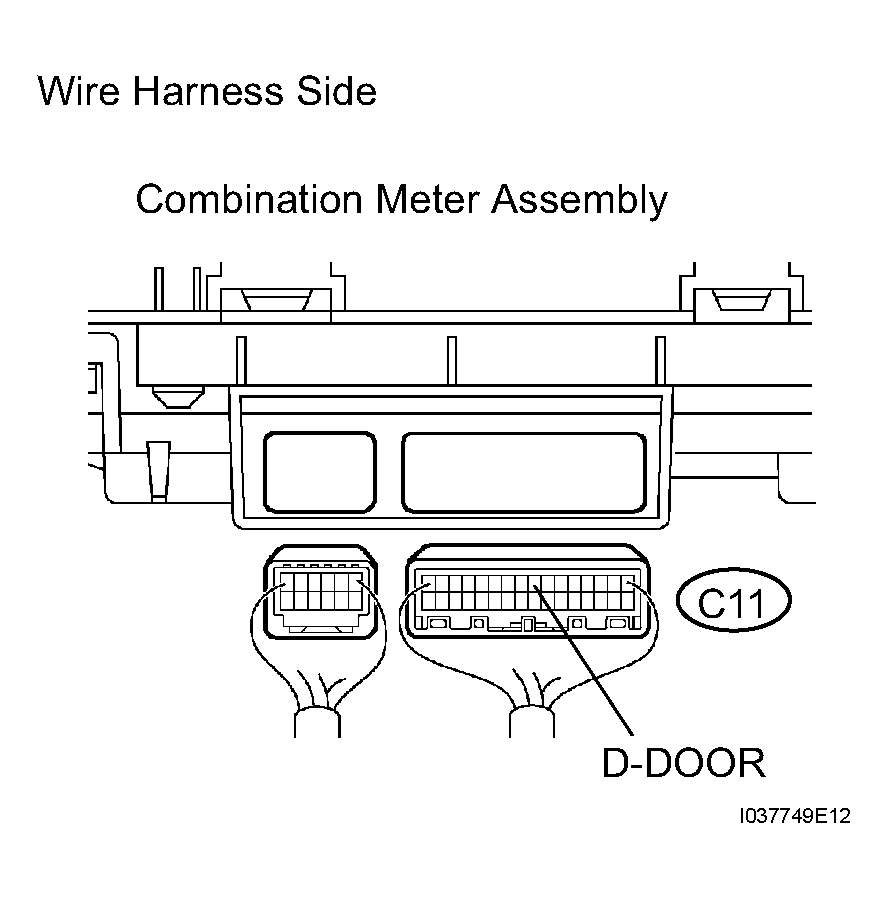

- CHECK WIRE HARNESS (COMBINATION METER - BODY GROUND)
- Disconnect the C11 meter connection.
- Measure the resistance of the wire harness side connector.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition C11-25 (D-DOOR) - Body ground Driver side door is closed 10 kΩ or higher C11-25 (D-DOOR) - Body ground Driver side door is open Below 1 Ω
NG : Go to step 8
OK : REPLACE COMBINATION METER ASSEMBLY
- INSPECT UNLOCK WARNING SWITCH ASSEMBLY
- Remove the unlock warning switch.
- Measure the resistance of the switch.
Standard resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition 1 - 2 No key in ignition key cylinder 10 kΩ or higher 1 - 2 Key in ignition key cylinder Below 1 Ω
NG : REPLACE UNLOCK WARNING SWITCH ASSEMBLY
OK : REPAIR OR REPLACE HARNESS AND CONNECTOR (UNLOCK WARNING SWITCH - METER AND BODY GROUND)
- INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
- Remove the courtesy switch.
- Measure the resistance of the switch.
Standard resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition 1 - Body ground Driver side courtesy switch is pushed 10 kΩ or higher 1 - Body ground Driver side courtesy switch is not pushed Below 1 Ω
NG : REPLACE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
OK : REPAIR OR REPLACE HARNESS AND CONNECTOR (FRONT DOOR COURTESY LIGHT SWITCH - METER AND BODY GROUND)
- INSPECT COMBINATION METER ASSEMBLY
- Disconnect the C11 meter connection.
- Measure the resistance of the wire harness side connector.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition C11-25 (D-DOOR) - Body ground Driver side door is closed 10 kΩ or higher C11-25 (D-DOOR) - Body ground Driver side door is open Below 1 Ω
OK : REPLACE COMBINATION METER ASSEMBLY
NG : GO TO NEXT STEP
- INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
- Remove the courtesy light switch.
- Measure the resistance of the switch.
Standard resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition 1 - Body ground Driver side courtesy switch shaft is pushed 10 kΩ or higher 1 - Body ground Driver side courtesy switch shaft is not pushed Below 1 Ω
NG : REPLACE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
OK : REPAIR OR REPLACE HARNESS AND CONNECTOR (FRONT DOOR COURTESY LIGHT SWITCH - METER AND BODY GROUND)
