Inspection Procedure

HINT:

When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.

1. READ VALUE OF INTELLIGENT TESTER (ENGINE SPEED)*1
   1. Check the DATA LIST for the proper functioning of the engine speed.

      ECM:

      ECM REFERENCE



      Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
      ENGINE SPD	Engine speed / Min.: 0 rpm, Max.: 16,383 rpm	Almost equal to actual engine speed (When engine is running)	-

      OK: Engine speed on tester is almost equal to actual engine speed.

   NG : GO TO  SFI SYSTEM

   OK : GO TO NEXT STEP

2. CHECK COMBINATION METER ASSEMBLY*2
   1. Remove the combination meter but do not disconnect the connector.
   2. Start the engine.
   3. Using an oscilloscope, check the signal waveform of the meter.

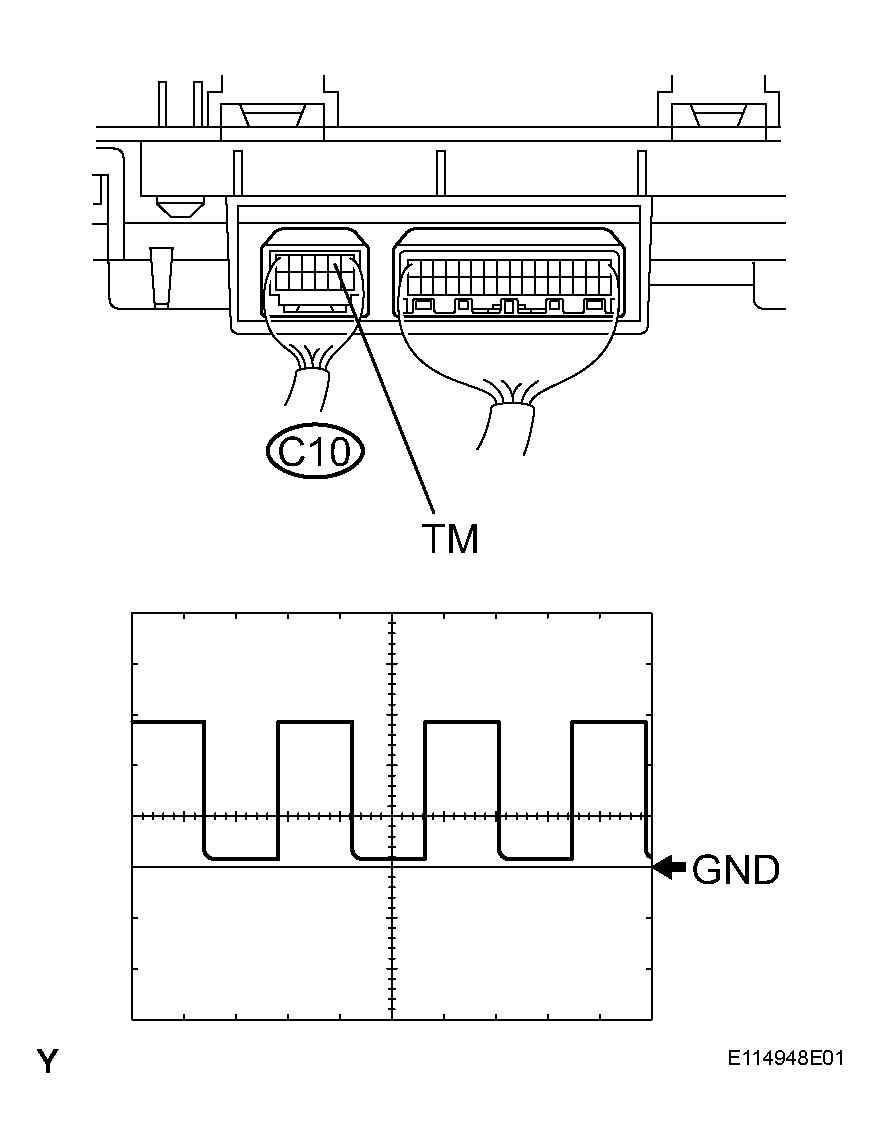

      Fig 1: Checking Signal Waveform Of Meter

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      ITEM CONTENT



      Item	Content
      Terminal No.	C10-11 ™ - Body ground
      Tool Setting	5 V/DIV., 10 msec/DIV.
      Vehicle Condition	Engine idling

      OK: As shown in the illustration.

   NG : REPLACE COMBINATION METER ASSEMBLY

   OK : GO TO NEXT STEP

3. CHECK WIRE HARNESS (COMBINATION METER - ECM)
   1. Disconnect the C10 meter connector.
   2. Disconnect the E6 ECM connector.
   3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection	Specified Condition
      C10-11 ™ - E6-5 (TACH)	Below 1 Ω
      C10-11 ™ - Body ground	10 kΩ or higher

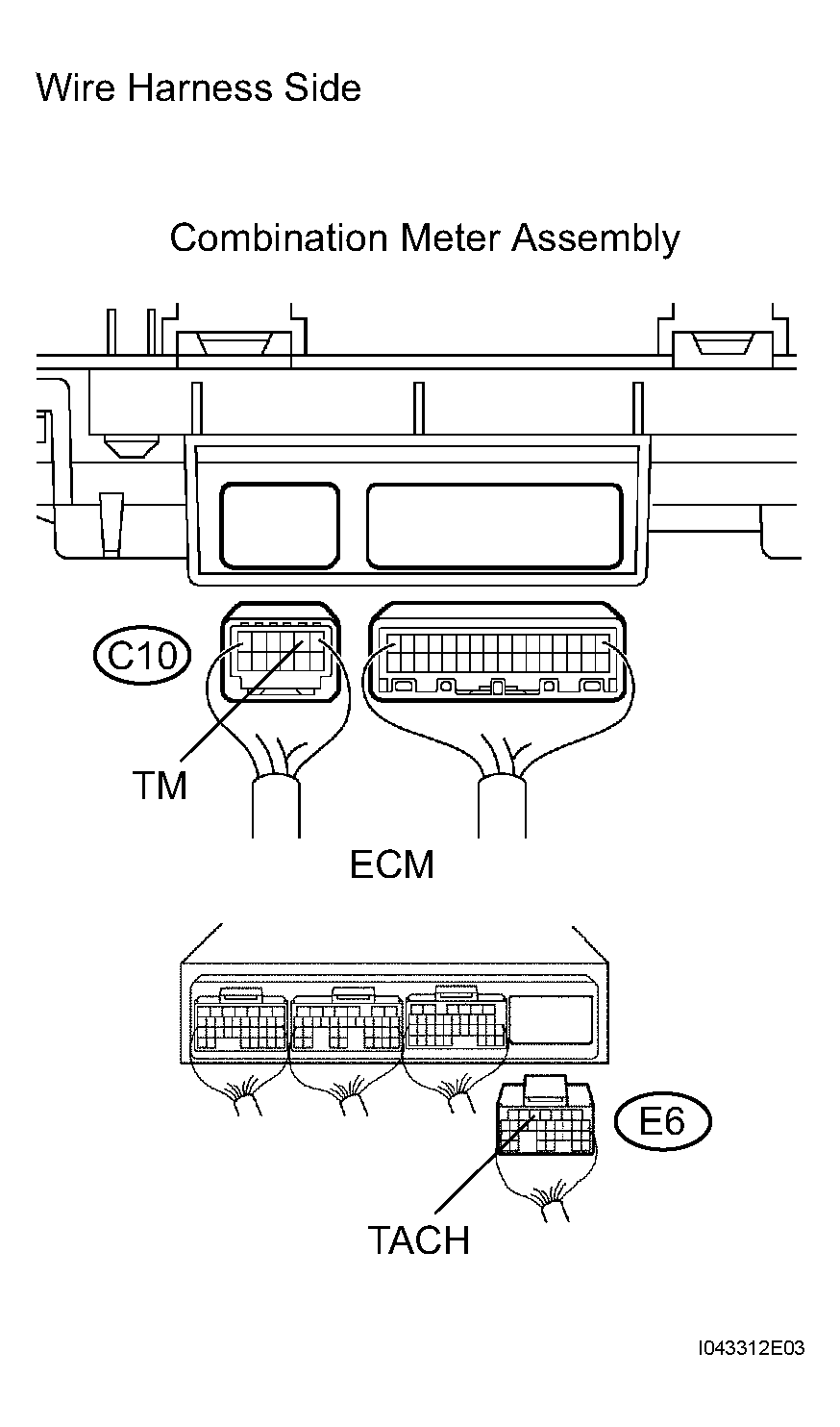

      Fig 2: Disconnecting C10 Meter Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

   OK : REPLACE ECM
