Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

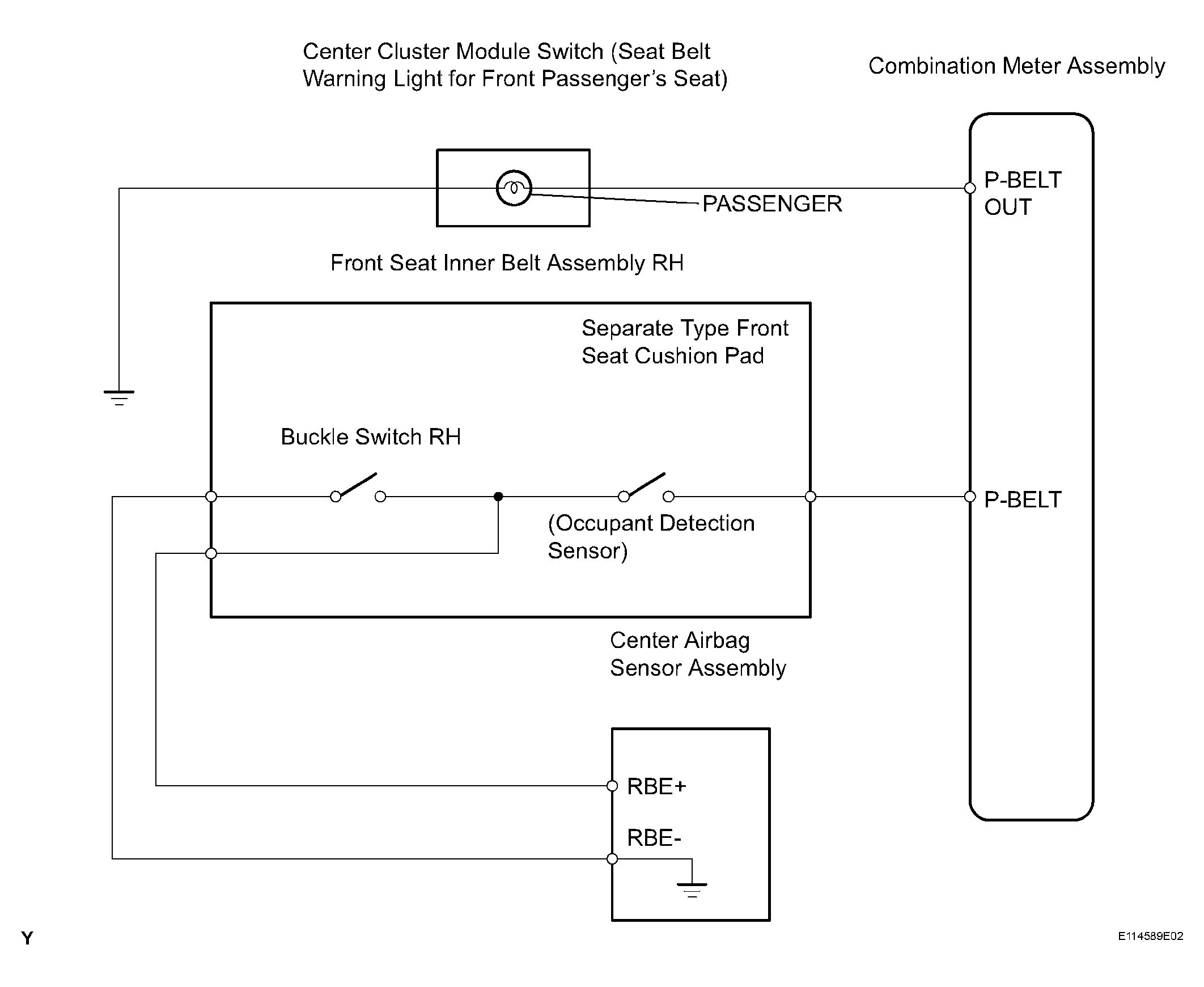

Fig 1: Front Passenger Side Seat Belt Warning Light Malfunction - Wiring Diagram
G04158916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
