Inspection Procedure

INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

Measure the resistance of the belt.

Standard resistance

Fig 1: Inspecting Front Seat Inner Belt Assembly LH Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
B6-1 - B6-3	Seat belt is fastened	10 kΩ or higher
B6-1 - B6-3	Seat belt is unfastened	Below 1 Ω

NG : REPLACE FRONT SEAT INNER BELT ASSEMBLY LH

OK : GO TO NEXT STEP

CHECK WIRE HARNESS (COMBINATION METER - FRONT SEAT INNER BELT LH)

Measure the resistance of the wire harness side connectors.

Standard resistance

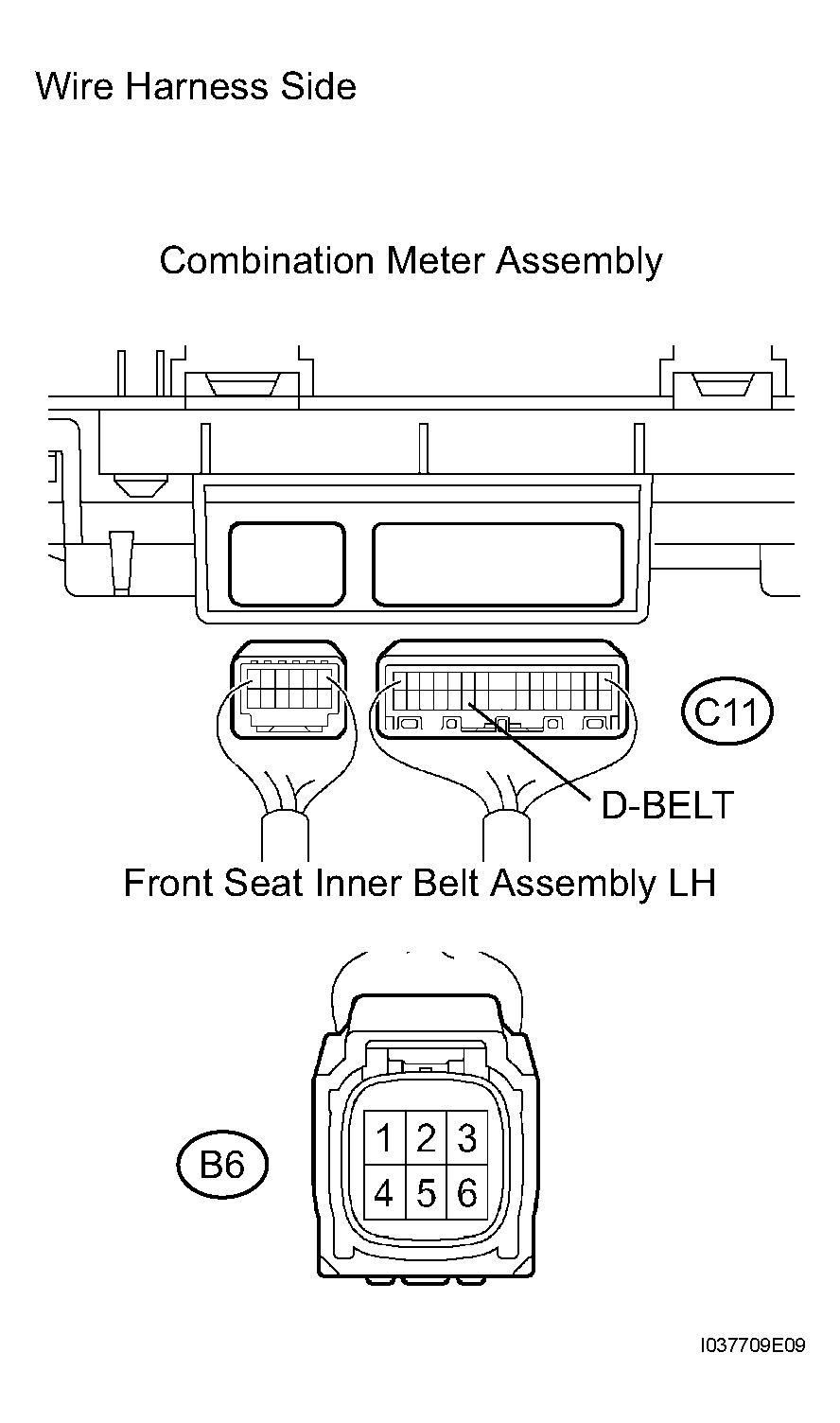

Fig 2: Disconnecting C11 Meter Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection	Specified Condition
C11-6 (D-BELT) - B6-3	Below 1 Ω
C11-6 (D-BELT) - Body ground	10 kΩ or higher

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

OK : GO TO NEXT STEP

CHECK WIRE HARNESS (FRONT SEAT INNER BELT LH - CENTER AIRBAG SENSOR)

Measure the resistance of the wire harness side connectors.

Standard resistance

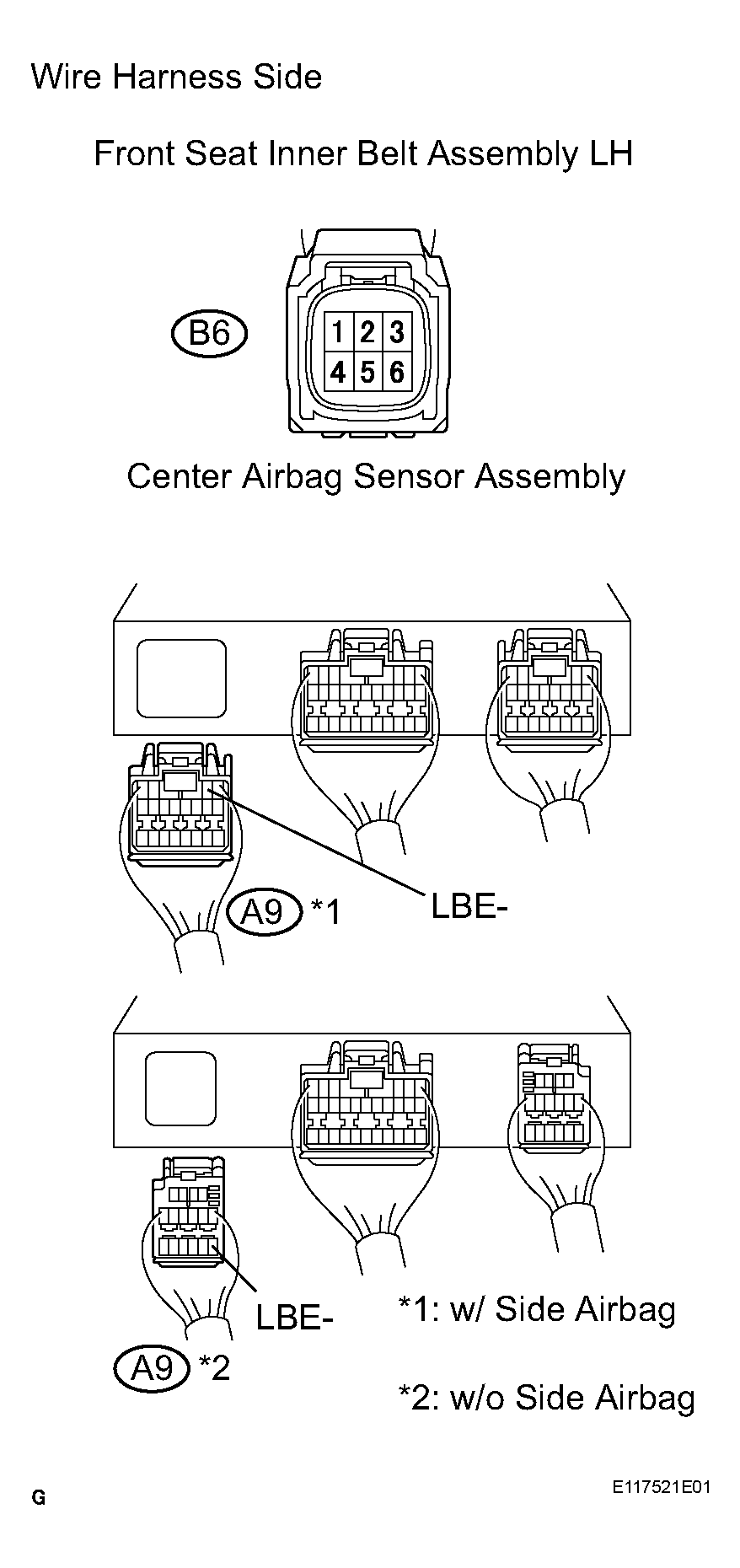

Fig 3: Disconnecting B6 Belt Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TESTER CONNECTION AND SPECIFIED CONDITION

Tester Connection

Specified Condition

B6-1 - A9-2⁽¹⁾ (LBE-)

Below 1 Ω

B6-1 - A9-7⁽²⁾ (LBE-)

Below 1 Ω

B6-1 - Body ground

10 kΩ or higher

⁽¹⁾	w/ Side airbag

⁽²⁾	w/o Side airbag

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

OK : REPLACE COMBINATION METER ASSEMBLY
