Rear Seat Assembly: Removal

1. Detach the seat cushion's 2 front hooks from the vehicle body.
   NOTE: Follow the instructions below carefully as the cushion frame deforms easily.

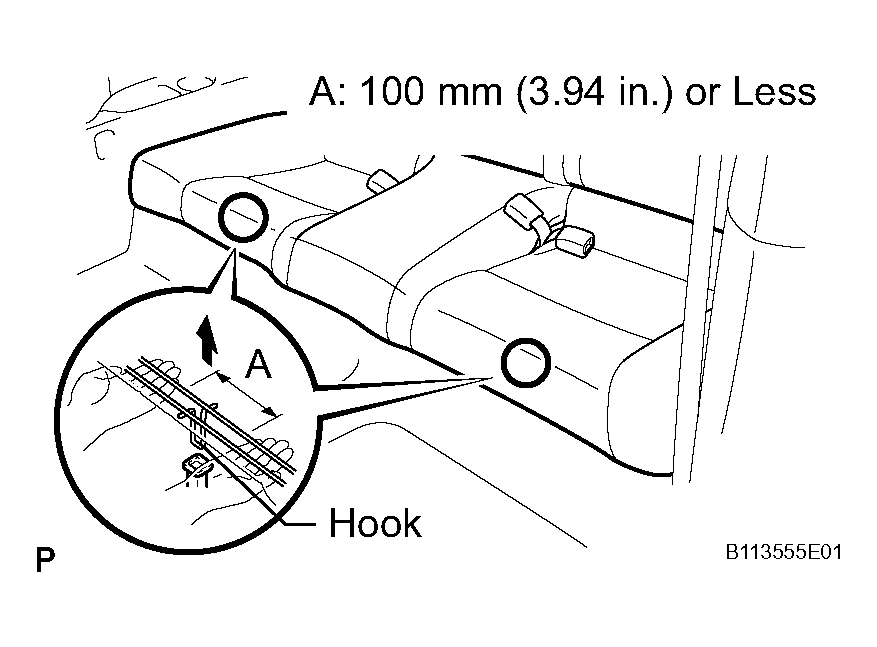

   Fig 1: Identifying Front Hook

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.
   2. Repeat for the other hook.

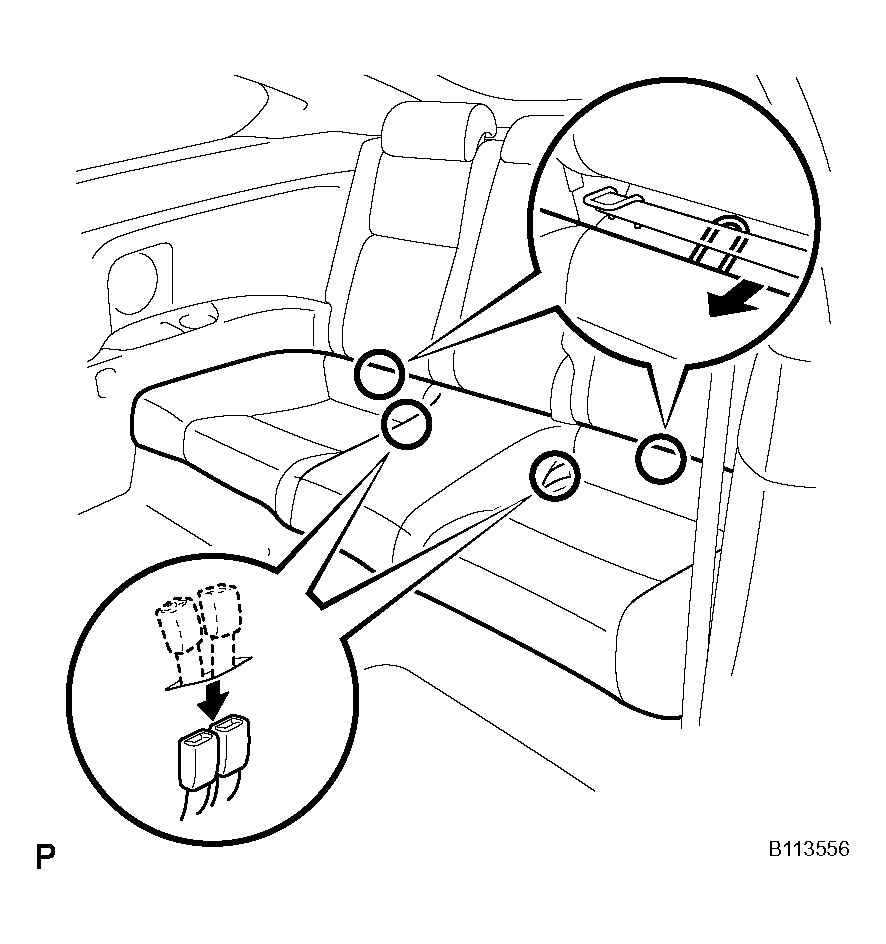

2. Remove the inner belts through the slits on the seat cushion.
3. Detach the seat cushion's 2 rear hooks from the seatback. Then remove the seat cushion.

Fig 2: Detaching Seat Cushion Rear Hooks From Seatback

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Detach the 12 claws and remove the 3 anchor covers as shown in the illustration.

1. Remove the 3 bolts and 3 anchor brackets.

1. Fully fold the seatback forward.
2. Remove the 2 bolts on the rear side of the seatback.
3. Return the seatback to the upright position.
4. Remove the 2 bolts on the front side of the seatback. Then remove the seatback.

Fig 4: Removing Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and rear seat outer belt floor anchor.
2. Fully fold the seatback forward.
3. Remove the 2 bolts on the rear side of the seatback.
4. Return the seatback to the upright position.
5. Remove the 2 bolts on the front side of the seatback. Then remove the seatback.

Fig 5: Removing Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, detach the claws and remove the 2 lock hooks.

HINT:

Tape the screwdriver tip before use.

1. Using a clip remover, remove the 2 clips.
2. Partially remove the floor carpet, and remove the 4 bolts and seat leg.
