Driver Side Knee Airbag Assembly: Removal

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see AIRBAG SYSTEM  ).
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Remove the 4 bolts and driver side knee airbag.
    2. Disconnect the connector.
    NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

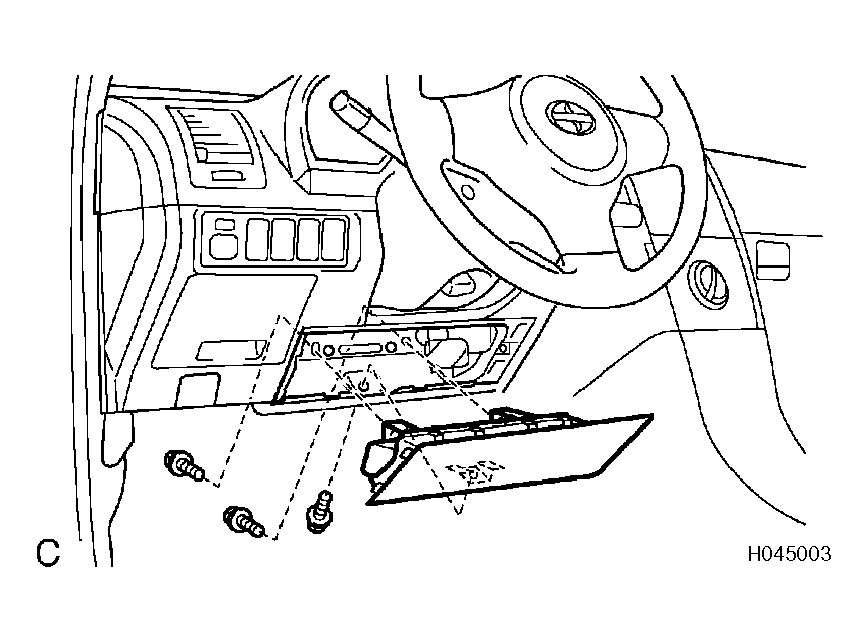

    Fig 1: Removing Bolts And Driver Side Knee Airbag
    G04223940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
