Seat Belt Warning Light for Passenger Seat does not Operate: Wiring Diagram

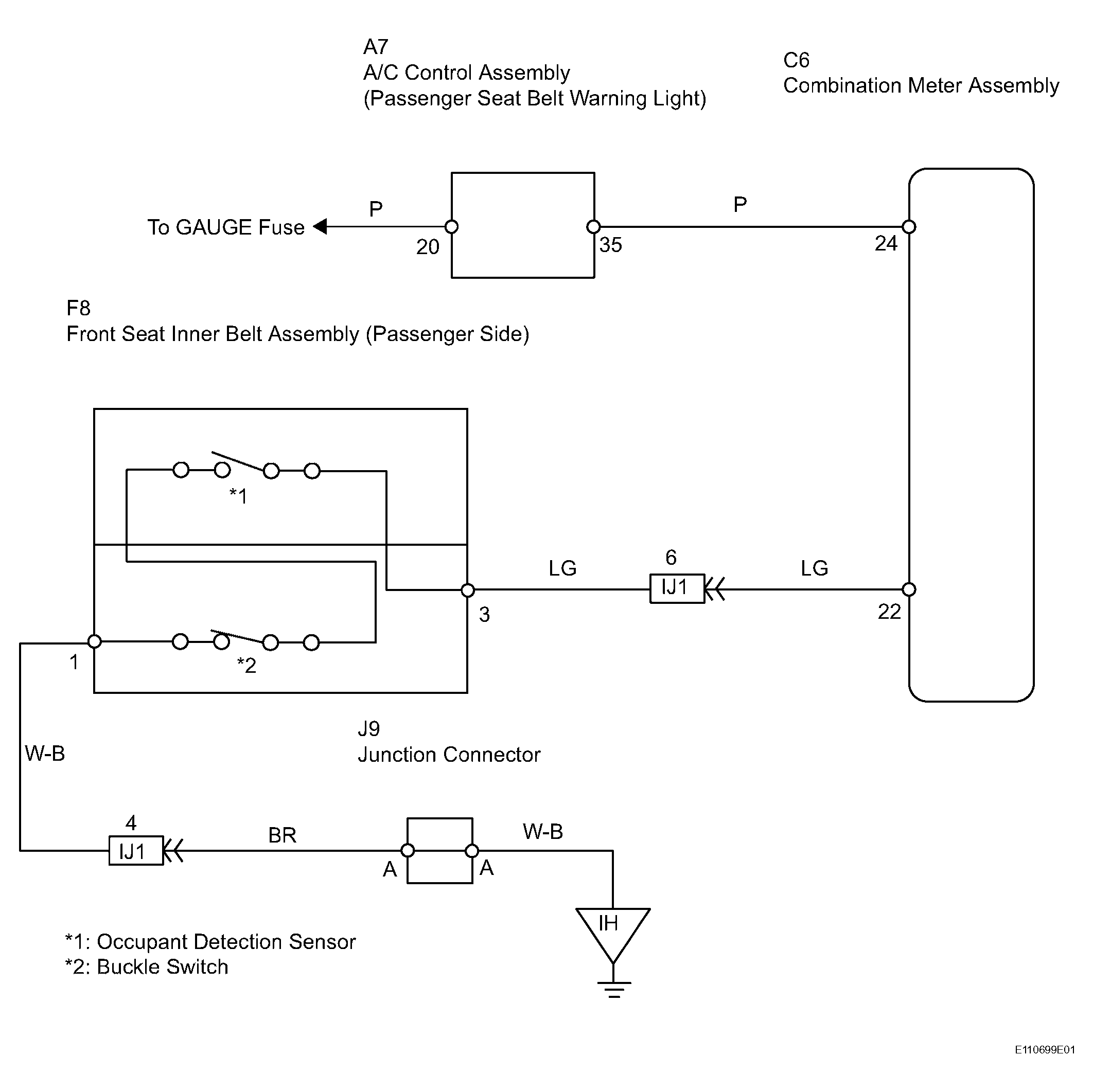

Fig 1: Seat Belt Warning Light For Passenger Seat Does Not Operate - Wiring Diagram
G04224362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
