Seat Belt Warning Light for Driver Seat does not Operate: Wiring Diagram

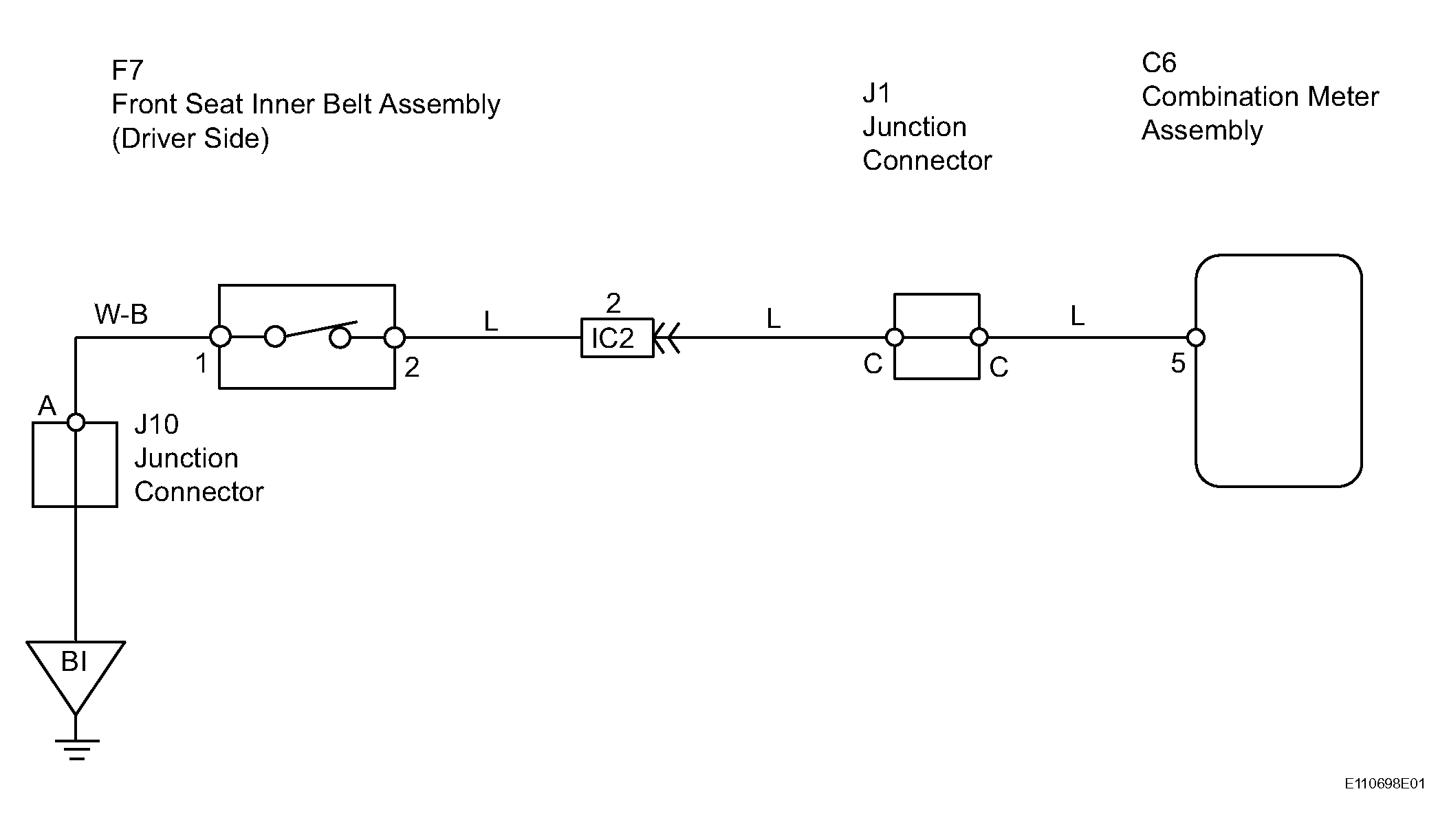

Fig 1: Seat Belt Warning Light For Driver Seat Does Not Operate - Wiring Diagram
G04224359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
