Parts Location

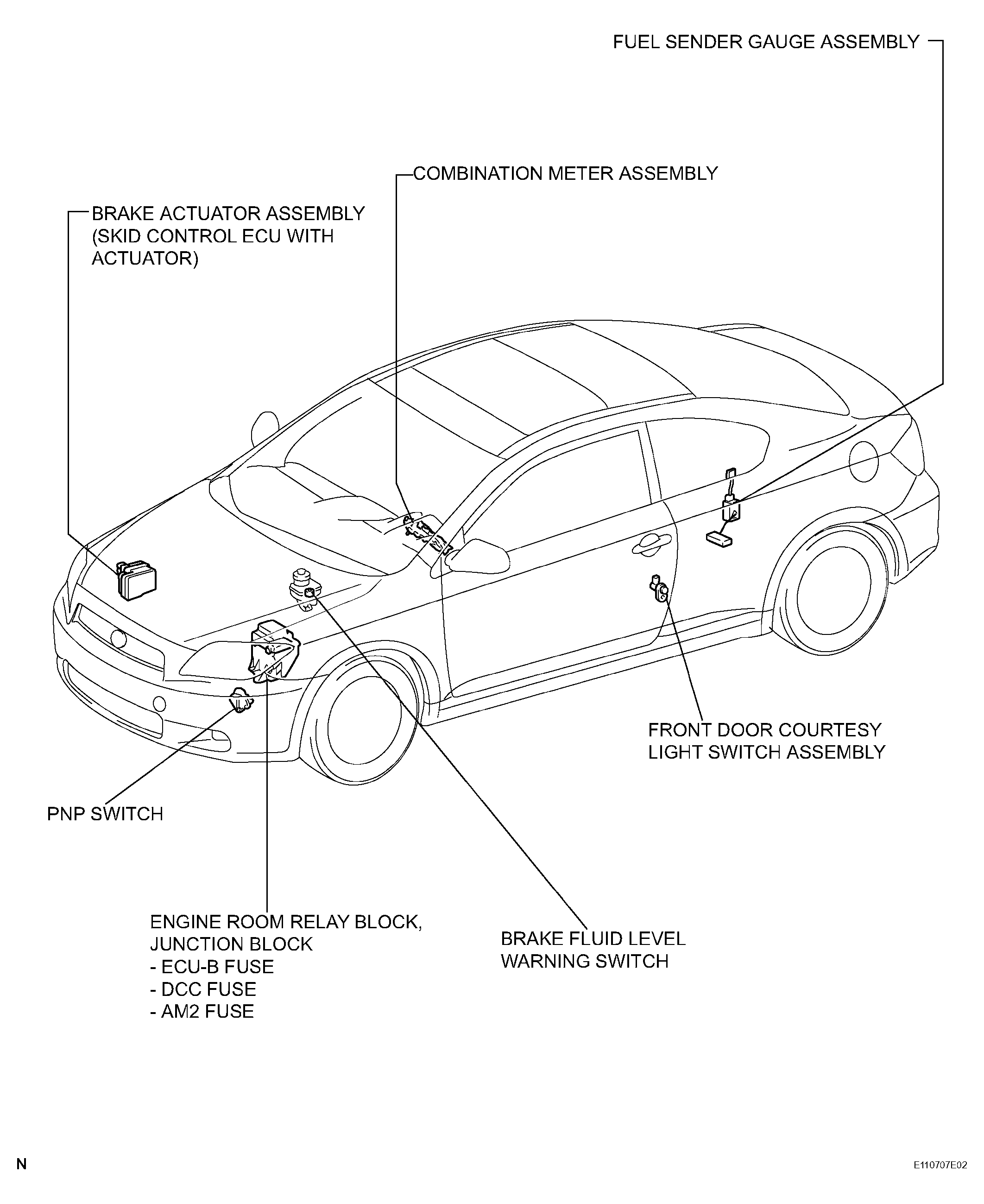

Fig 1: Identifying Meter/Gauge System Part Location (1 Of 3)
G04224323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

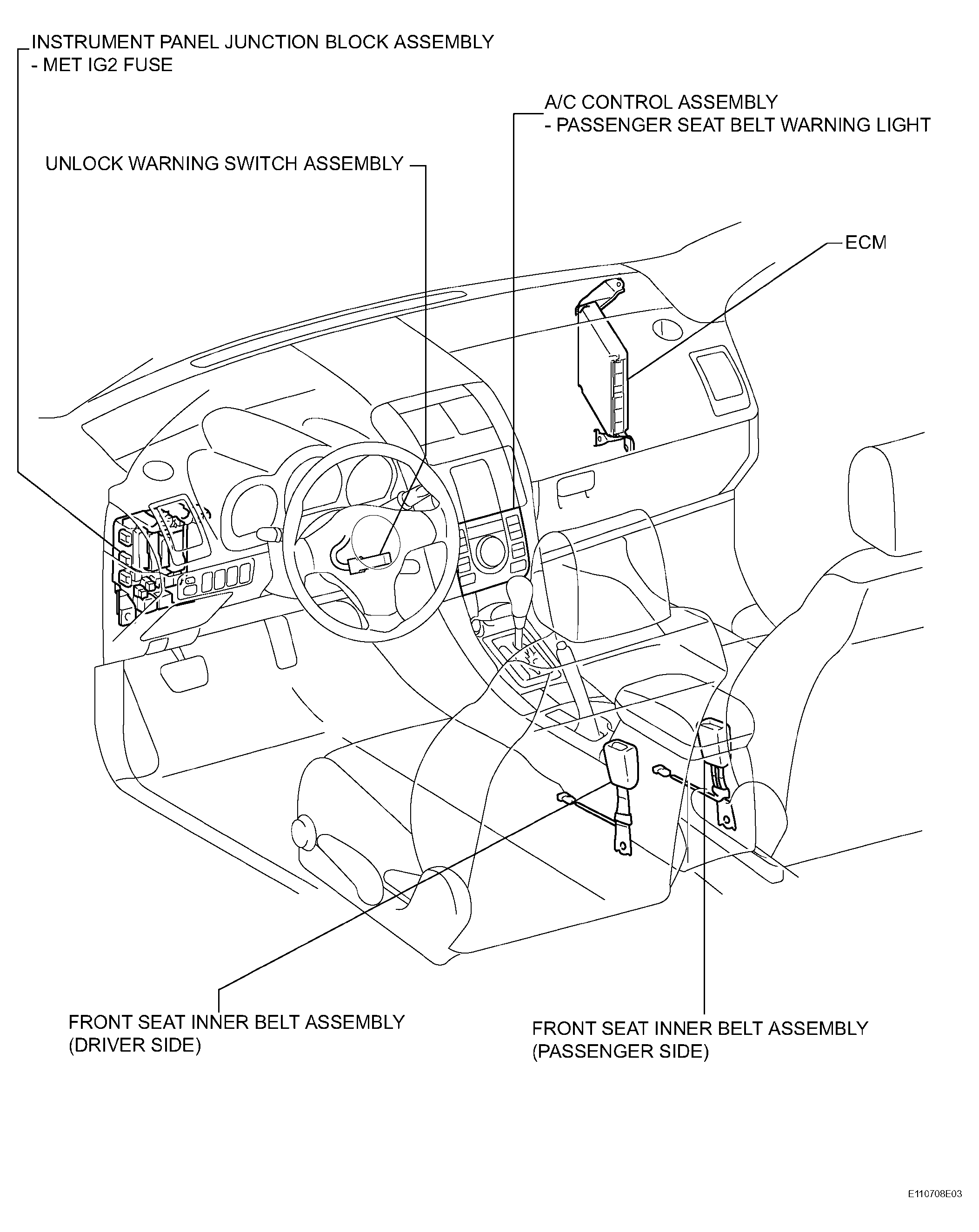

Fig 2: Identifying Meter/Gauge System Part Location (2 Of 3)
G04224324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

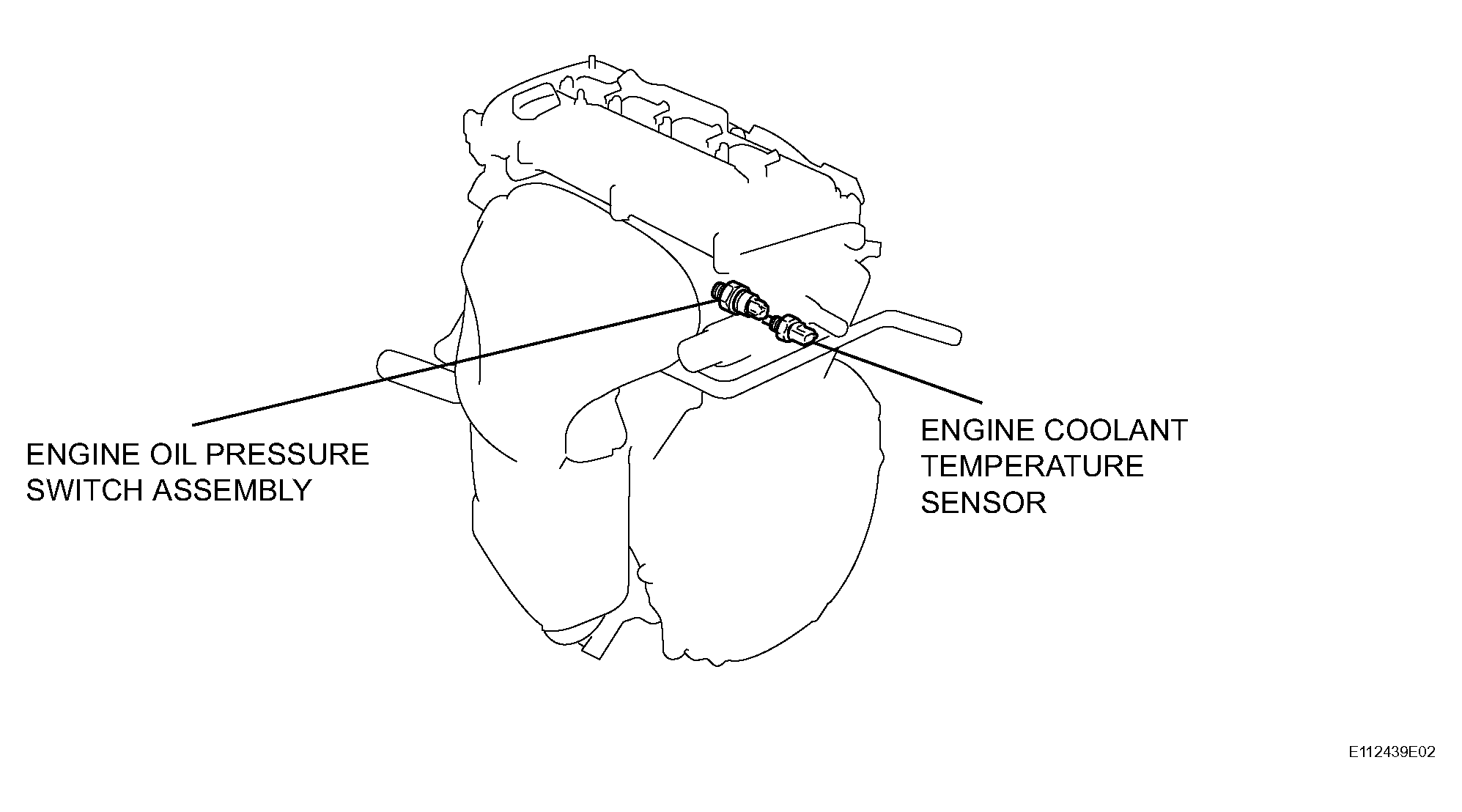

Fig 3: Identifying Meter/Gauge System Part Location (3 Of 3)
G04224325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
