Malfunction in Tachometer: Wiring Diagram

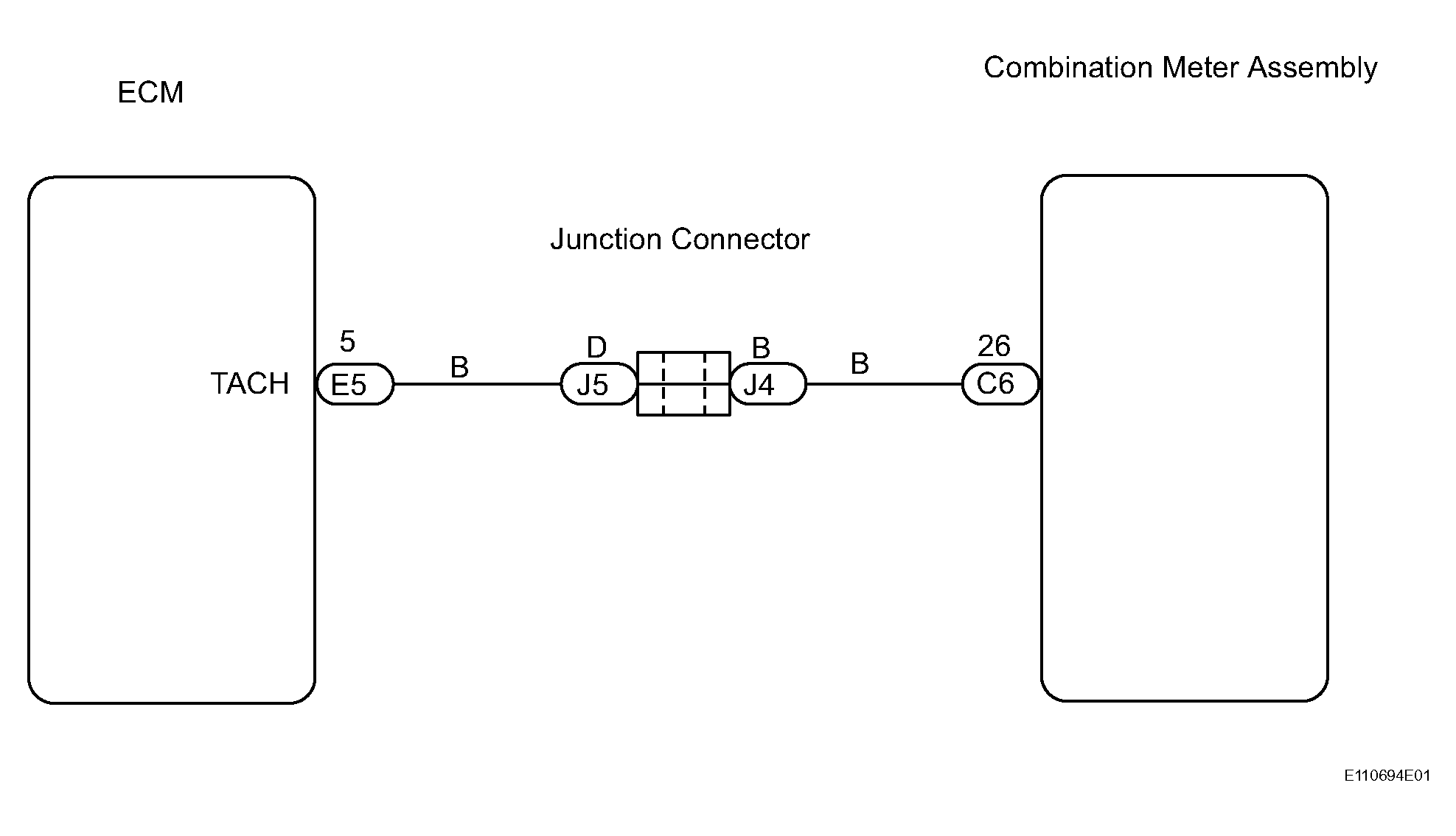

Fig 1: Malfunction In Tachometer - Wiring Diagram

G04224344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
