Inspection Procedure
- READ VALUE OF INTELLIGENT TESTER (ENGINE SPEED SIGNAL)
- Operate the intelligent tester according to the step on the display and select "DATA LIST".
ECM
ITEM AND NORMAL CONDITIONItem Measurement Item/Range (Display) Normal Condition Diagnostic Note Engine Spd Engine speed/Min.: 0 rpm, Max.: 16,383 rpm Almost the same as actual engine speed (When engine is running) - OK: Engine speed display on the tester is almost the same as the actual engine speed.
NG : GO TO ENGINE CONTROL SYSTEM
OK : GO TO NEXT STEP
- Operate the intelligent tester according to the step on the display and select "DATA LIST".
- CHECK COMBINATION METER ASSEMBLY
- Disconnect the C6 meter connector.

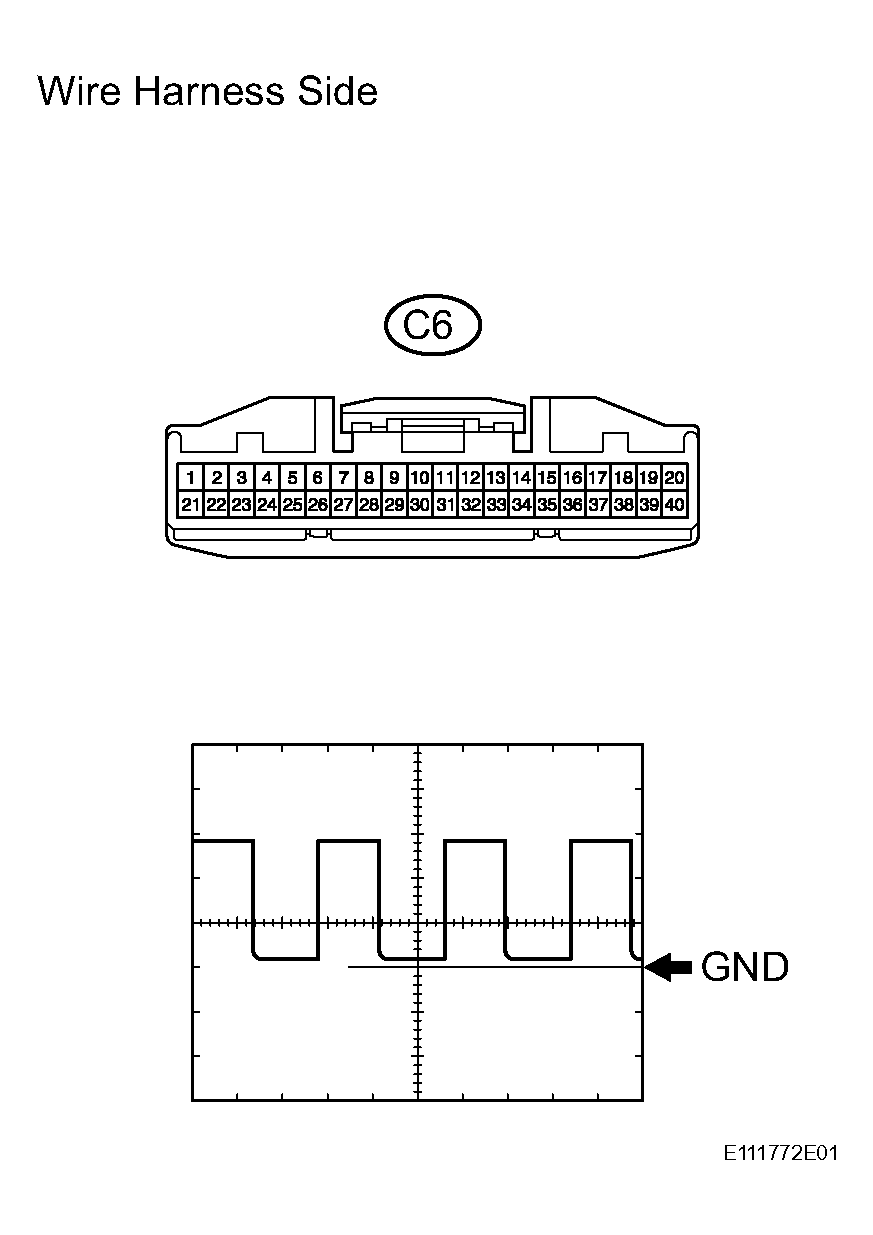

- Using an oscilloscope, check the signal waveform of the meter.TESTER CONNECTION AND VEHICLE CONDITION
Tester Connection Tool Setting Vehicle Condition C6-26 - Body ground 5V/DIV., 10 msec./DIV. Engine idle speed OK: As shown in the illustration.
NG : Go to step 3
OK: REPLACE COMBINATION METER ASSEMBLY

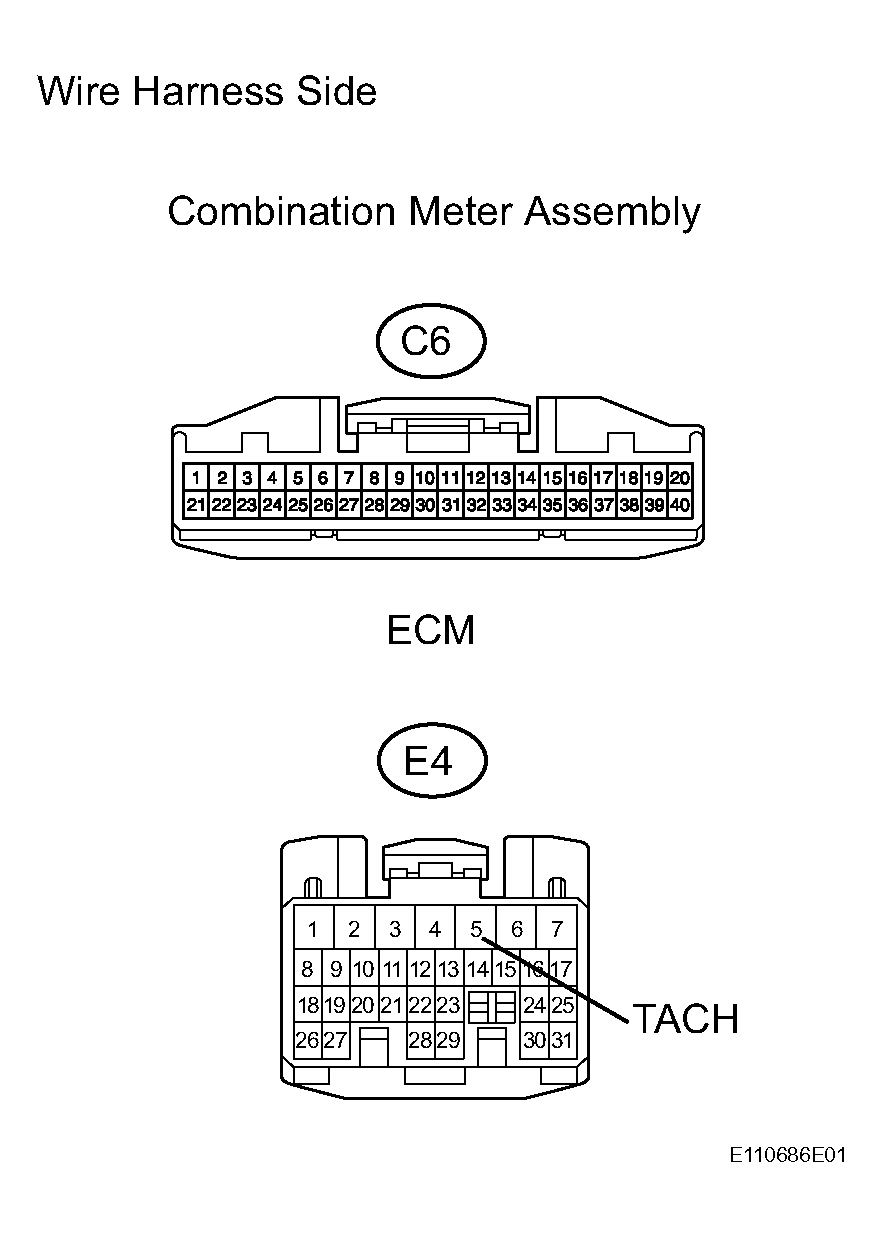

- CHECK WIRE HARNESS (COMBINATION METER ASSEMBLY - ECM)
- Disconnect the C6 meter connector.
- Disconnect the E4 ECM connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Specified Condition C6-26 - E4-5 Below 1 Ω C6-26 - Body ground 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: REPLACE ECM
