Malfunction in Fuel Receiver Gauge: Wiring Diagram

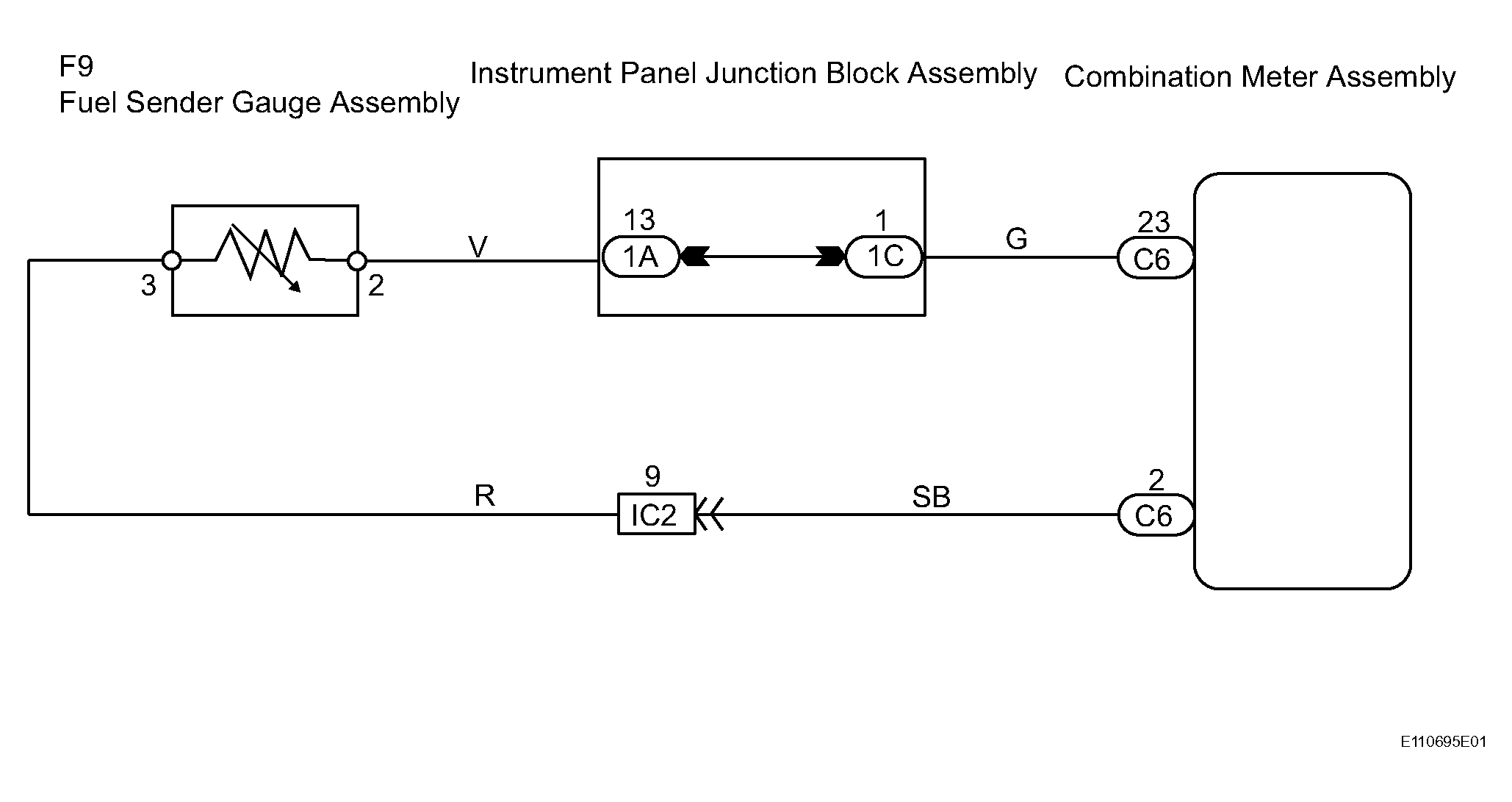

Fig 1: Malfunction In Fuel Receiver Gauge - Wiring Diagram

G04224347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
