DTC P0351, P0352, P0353, P0354: Ignition Coil "A" Primary/Secondary Circuit, Ignition Coil "B" Primary/Secondary Circuit, Ignition Coil "C" Primary/Secondary Circuit, Ignition Coil "D" Primary/Secondary Circuit: Wiring Diagram

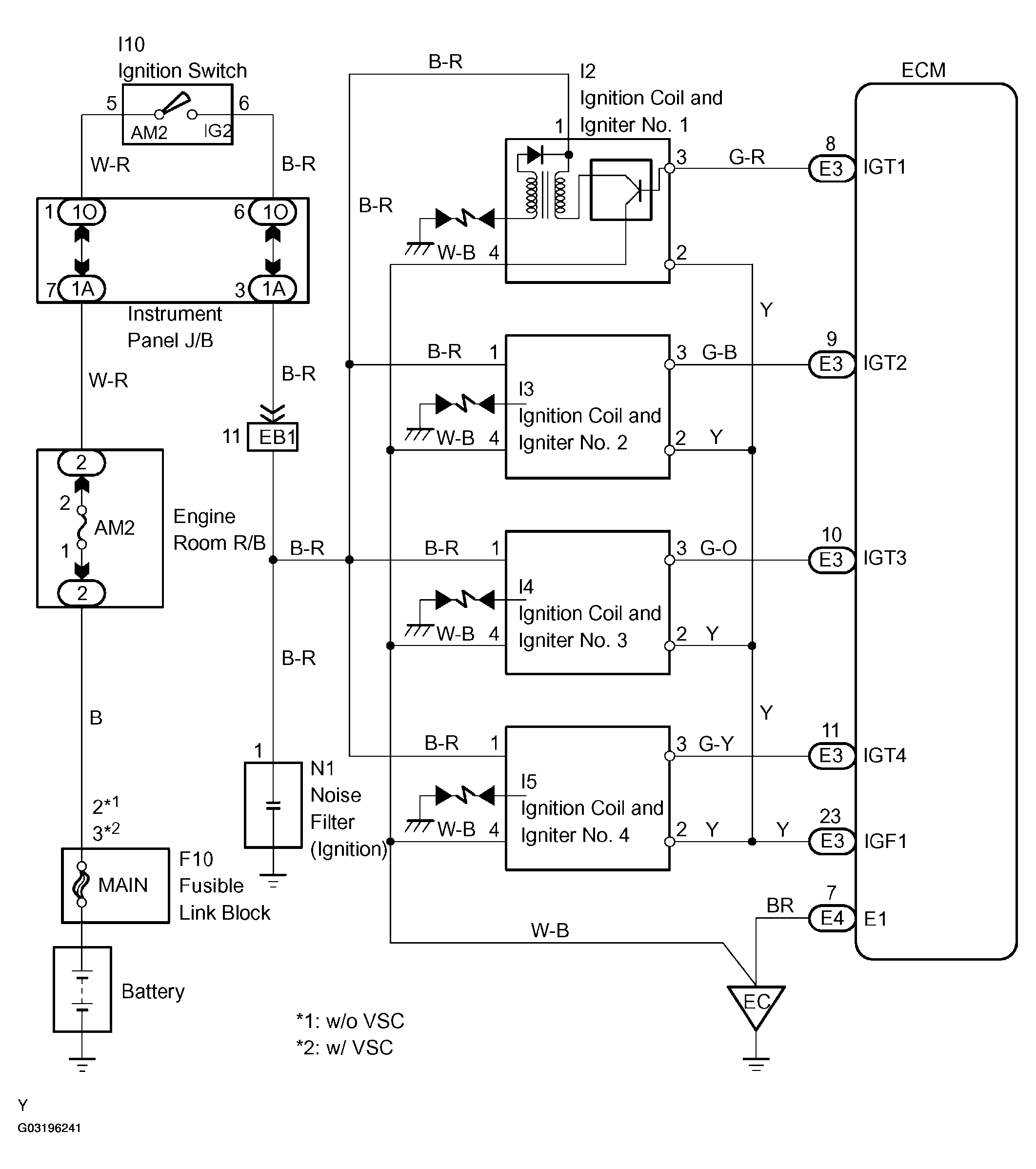

Fig 1: Ignition Coil Primary/Secondary Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
