Parking Brake Lever Sub-ASSY: Components

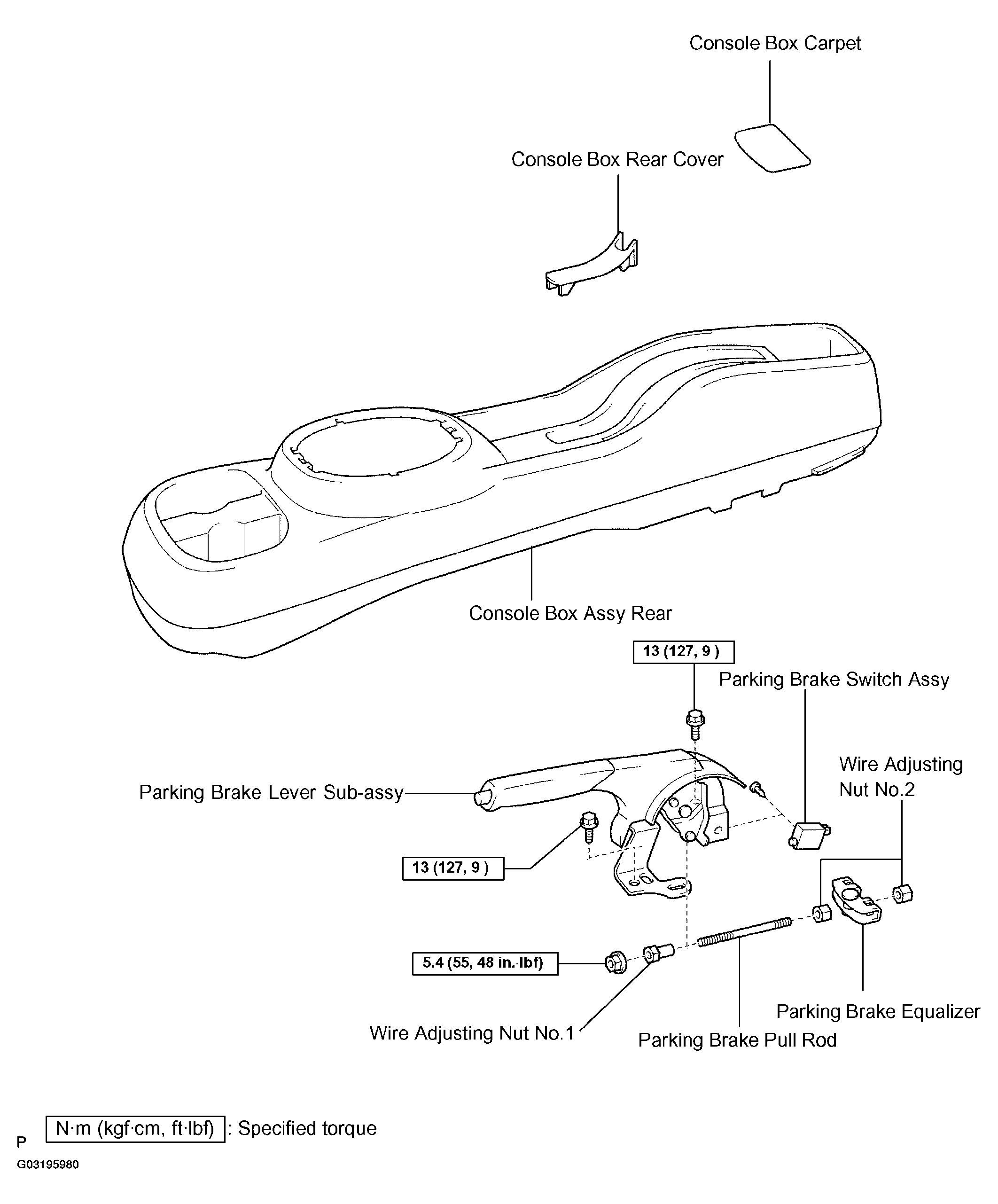

Fig 1: Identifying Parking Brake Sub Assy Components

G03195980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
