VSC Warning Light Circuit (Remains On): Wiring Diagram

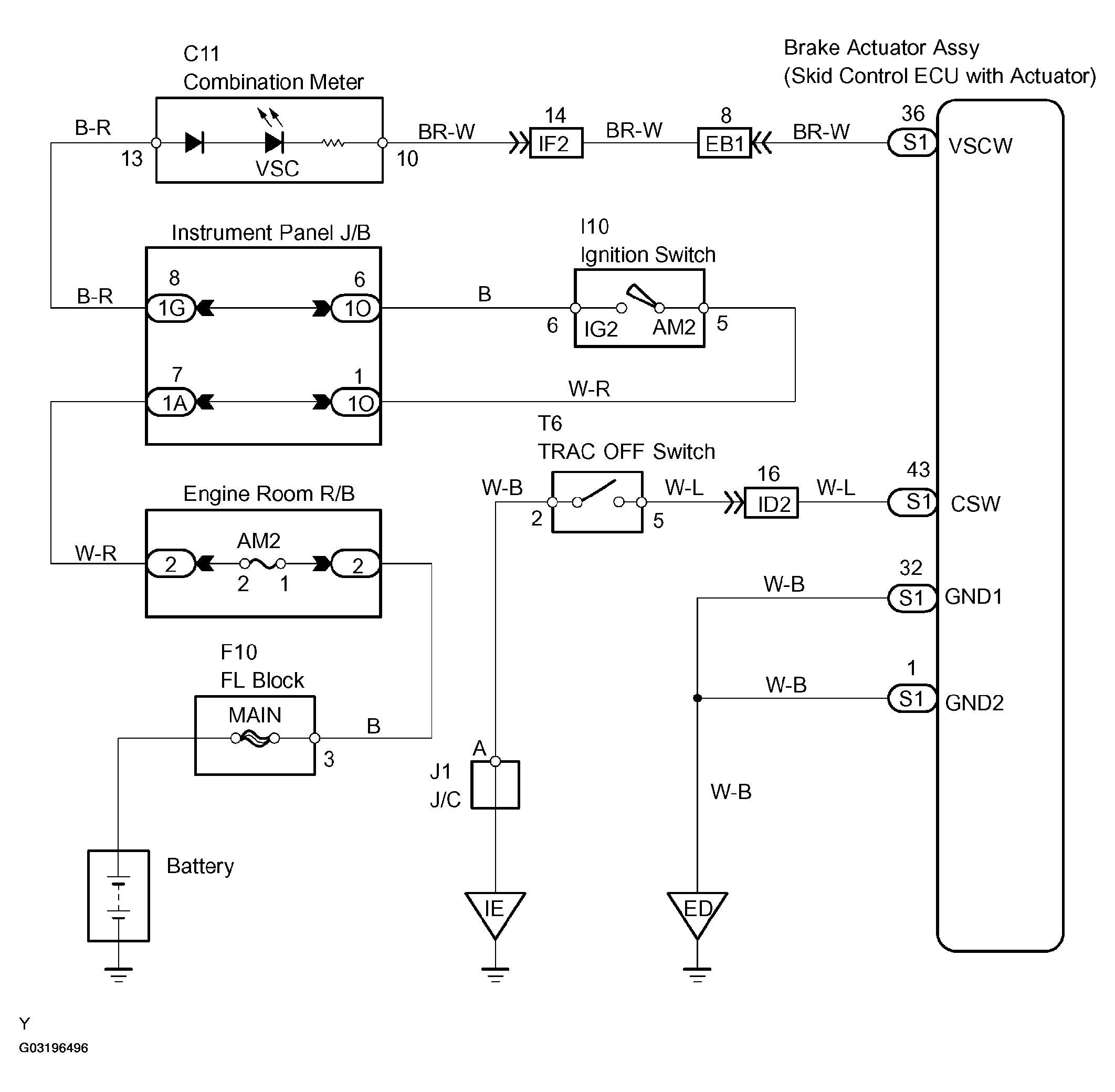

Fig 1: Wiring Diagram

G03196496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
