TRAC Off Indicator Light, TRAC Off Switch Circuit: Wiring Diagram

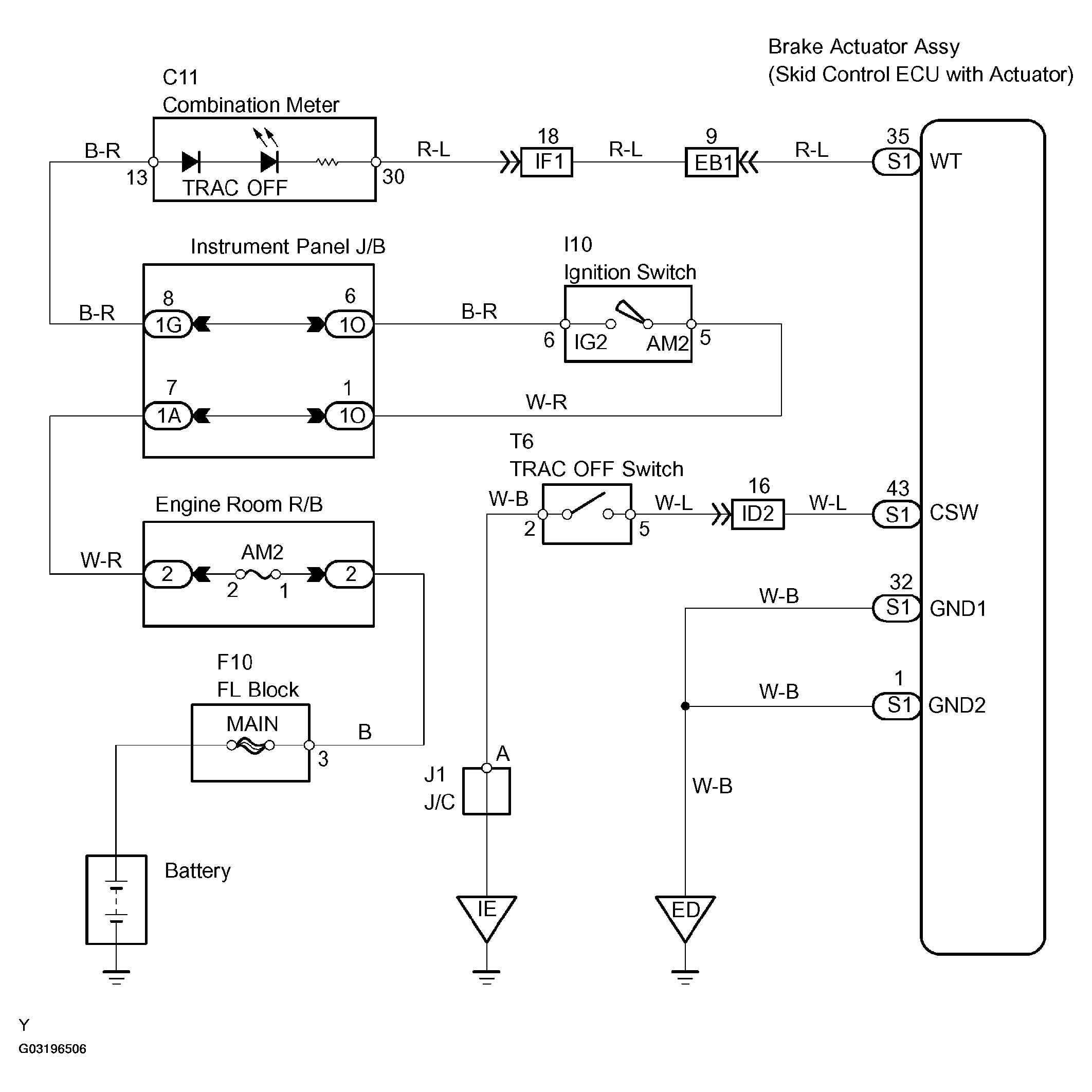

Fig 1: Wiring Diagram

G03196506

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
