Slip Indicator Light Circuit: Wiring Diagram

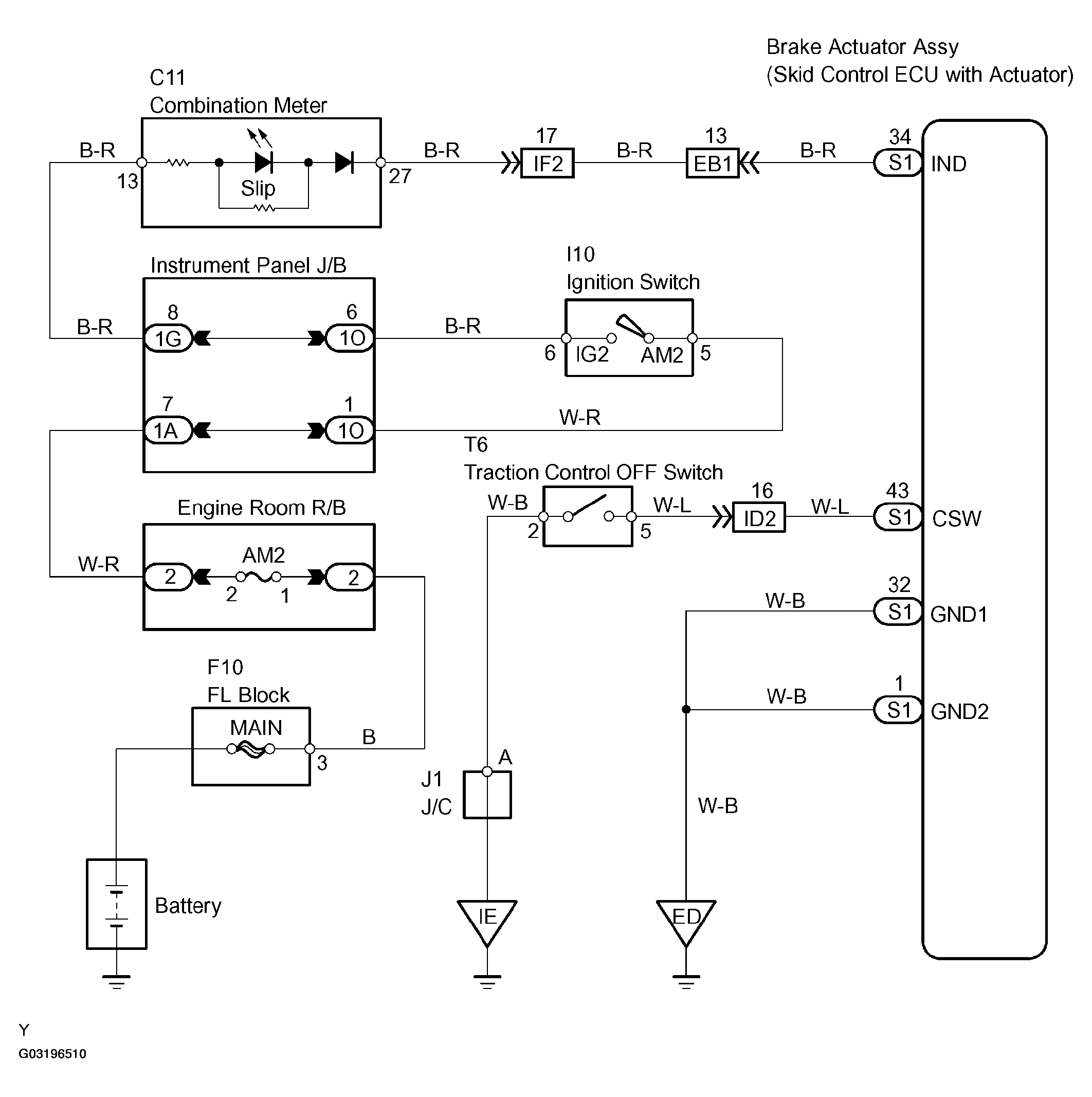

Fig 1: Wiring Diagram

G03196510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
