Skid Control Buzzer Circuit: Wiring Diagram

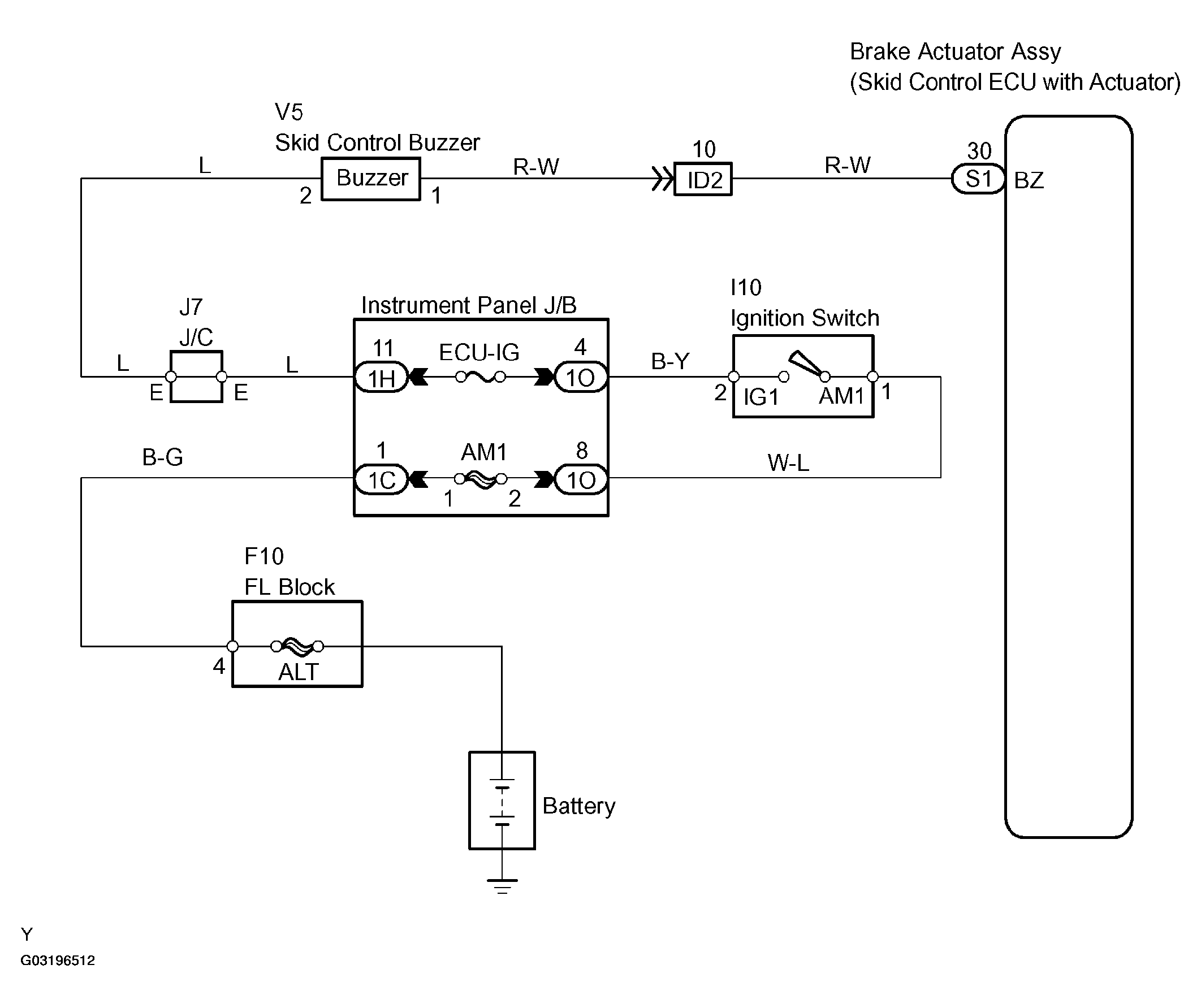

Fig 1: Wiring Diagram

G03196512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
