Abs With EBD & BA & TRAC & VSC System: Location

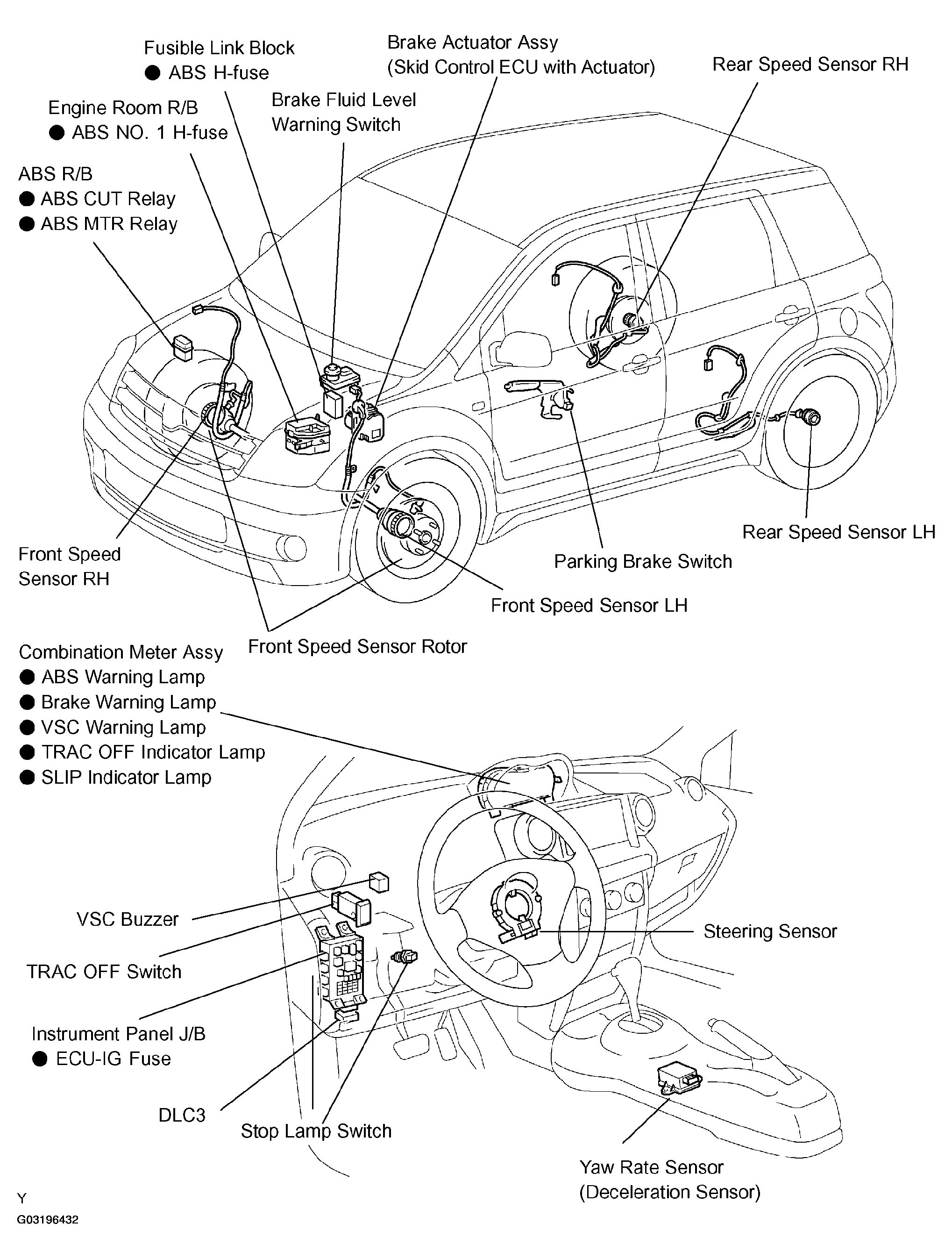

Fig 1: Identifying Component Location Of ABS With EBD & BA & TRAC & VSC System
G03196432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
