DTC C1210/36, C1336/39: Zero Point Calibration Of Yaw Rate Sensor Undone, Zero Point Calibration Of Deceleration Sensor Undone: Wiring Diagram

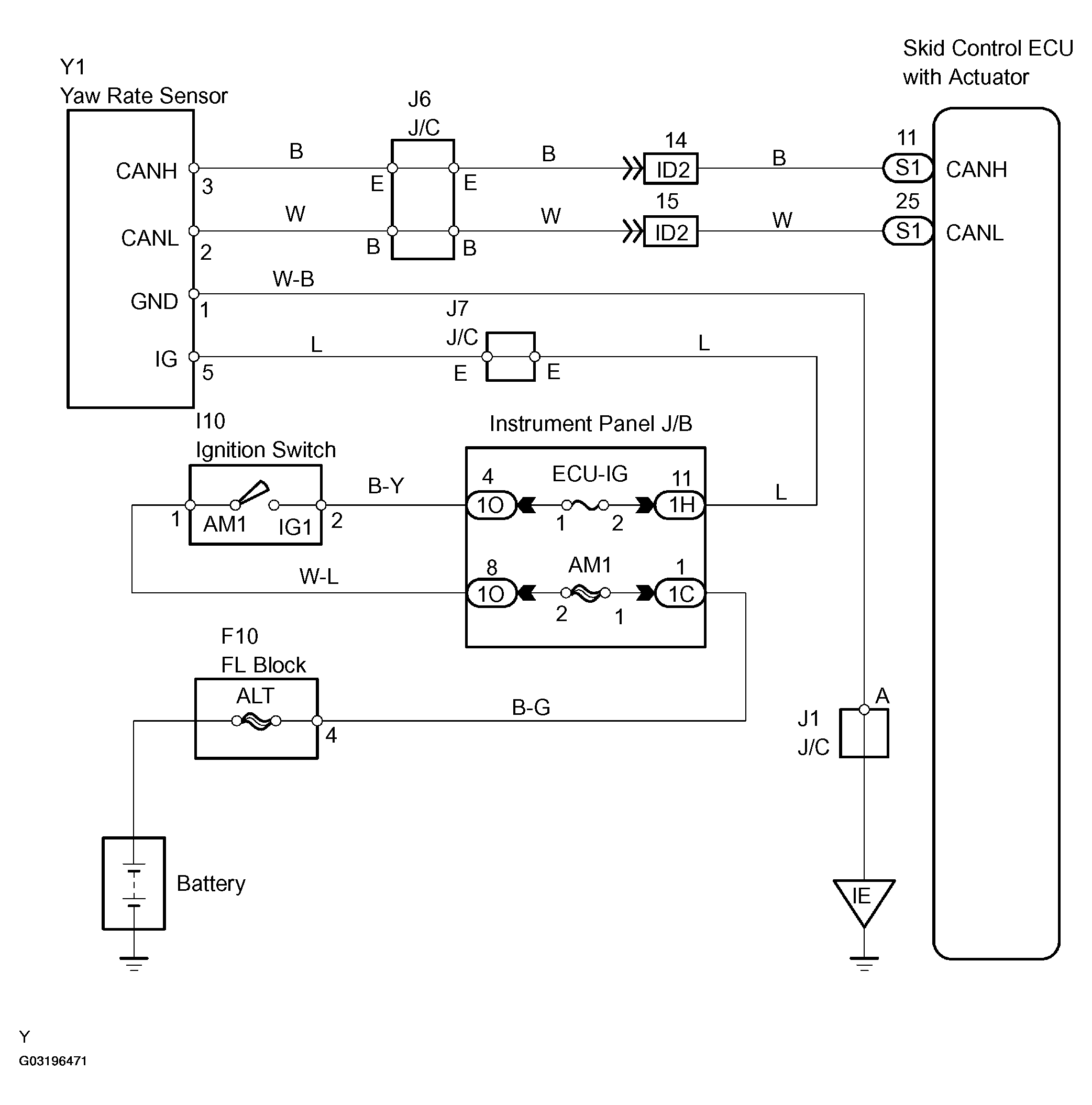

Fig 1: Wiring Diagram
G03196471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
