Inspection Procedure

  1. CHECK WIRE HARNESS (ECM - SKID CONTROL ECU)
    1. Disconnect the skid control connector and ECM connector.
    2. Measure the resistance according to the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      E6-25 (VSC+) - S1-8 (TRC+) Below 1 Ω
      E6-24 (ENG+) - S1-9 (ENG+) Below 1 Ω
      E6-31 (VSC-) - S1-22 (TRC-) Below 1 Ω
      E6-30 (ENG-) - S1-23 (ENG-) Below 1 Ω
      E6-25 (VSC+) - Body ground 10 kΩ or higher
      E6-24 (ENG+) - Body ground 10 kΩ or higher
      E6-31 (VSC-) - Body ground 10 kΩ or higher
      E6-30 (ENG-) - Body ground 10 kΩ or higher

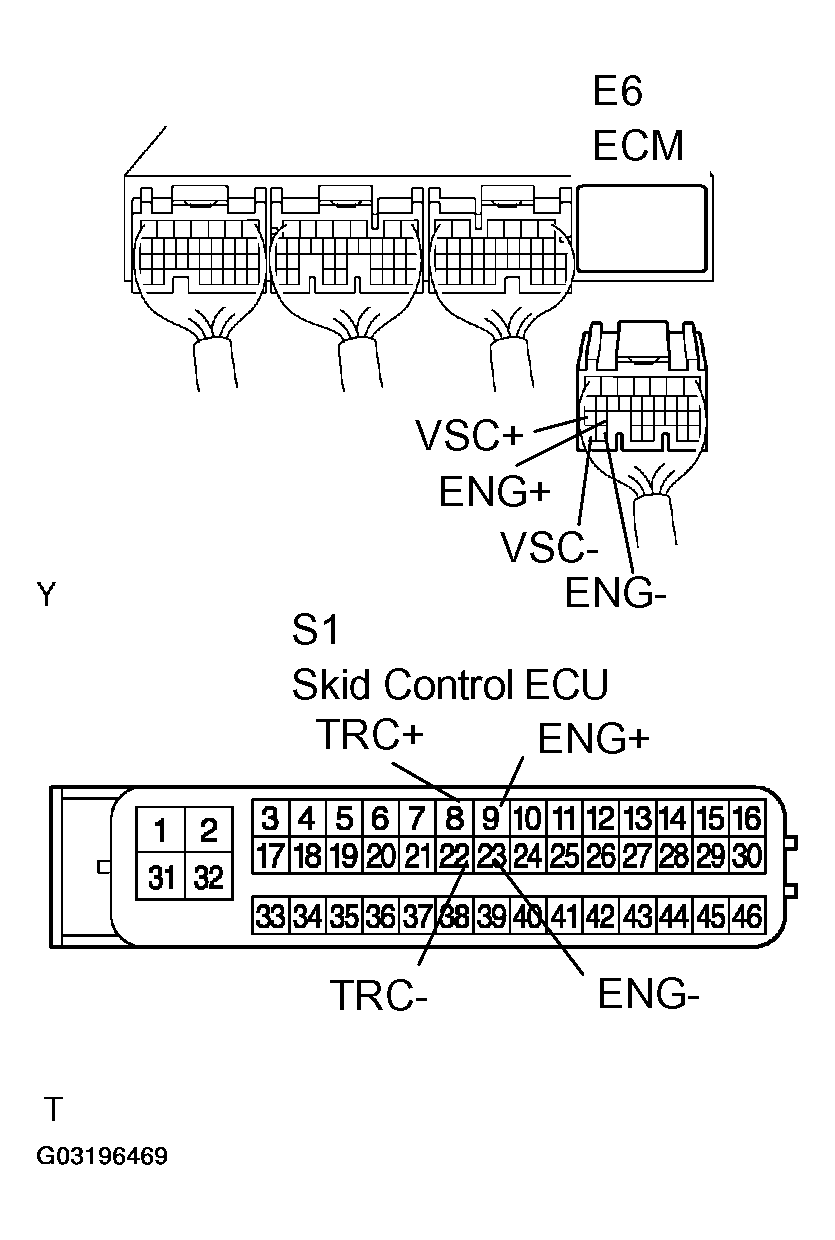

      Fig 1: Disconnecting Skid Control Connector & ECM Connector
      G03196469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : GO TO NEXT STEP.
  2. CHECK WIRE HARNESS (ECM - BODY GROUND)
    1. Disconnect ECM connector.
    2. Measure the resistance according to the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      E4-7 (E1) - Body ground Below 1 Ω
      Fig 2: Disconnecting ECM Connector
      G03196470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK : REPLACE ECM
