DTC C0278/11, C0279/12: Open Circuit In Abs Solenoid Relay Circuit, Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

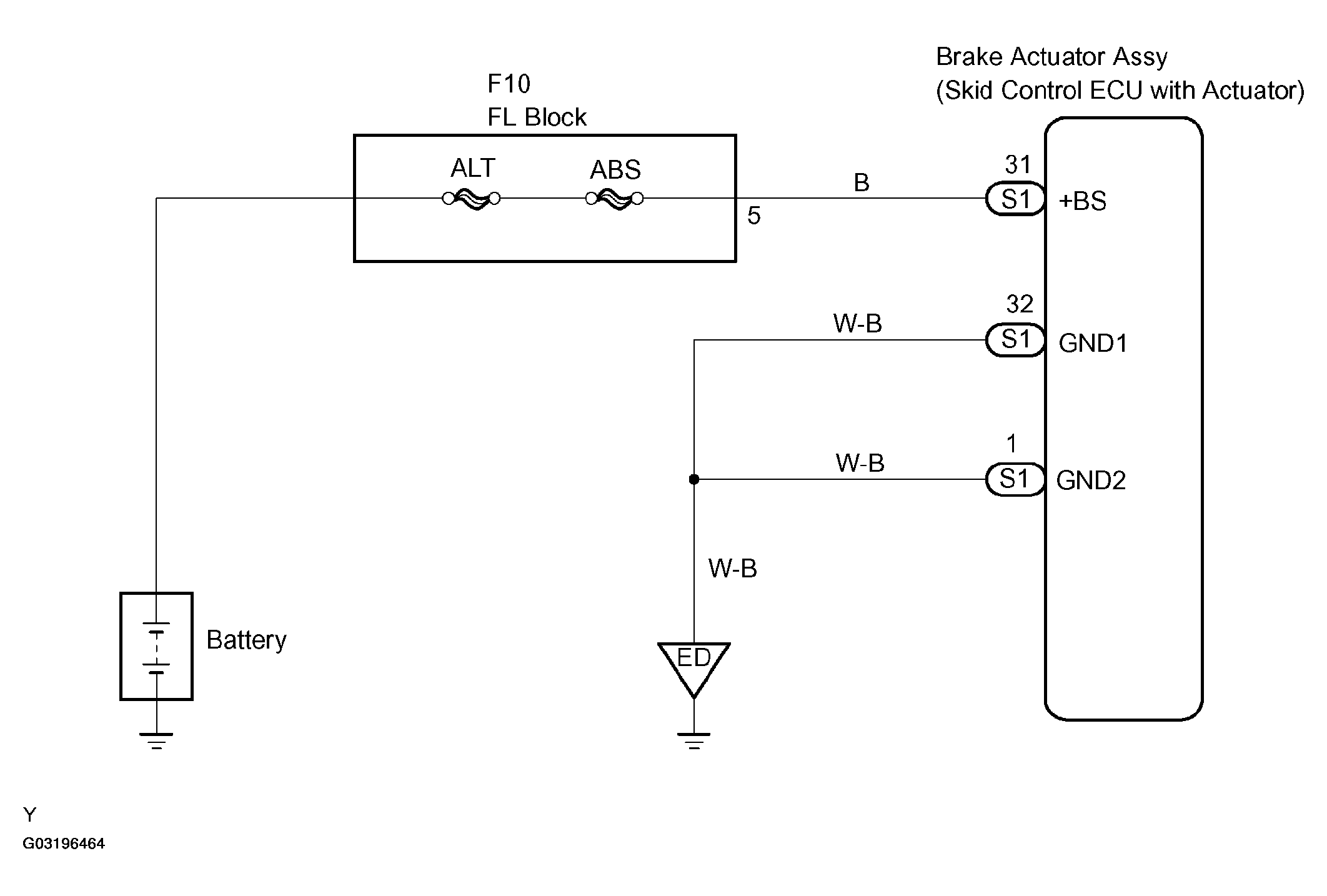

Fig 1: Wiring Diagram

G03196464

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
