Diagnostic Trouble Code Table

DTC COMBINATION TABLE
NOTE: Complete the CHECK CAN BUS LINE inspection procedures (see CHECK CAN BUS LINE ). Confirm that the CAN main bus line does not have the following: 1) disconnections, 2) short circuits, 3) short to +B, or 4) short to ground.
1. Confirm the trouble mode according to the combination of CAN communication system DTCs that are output.

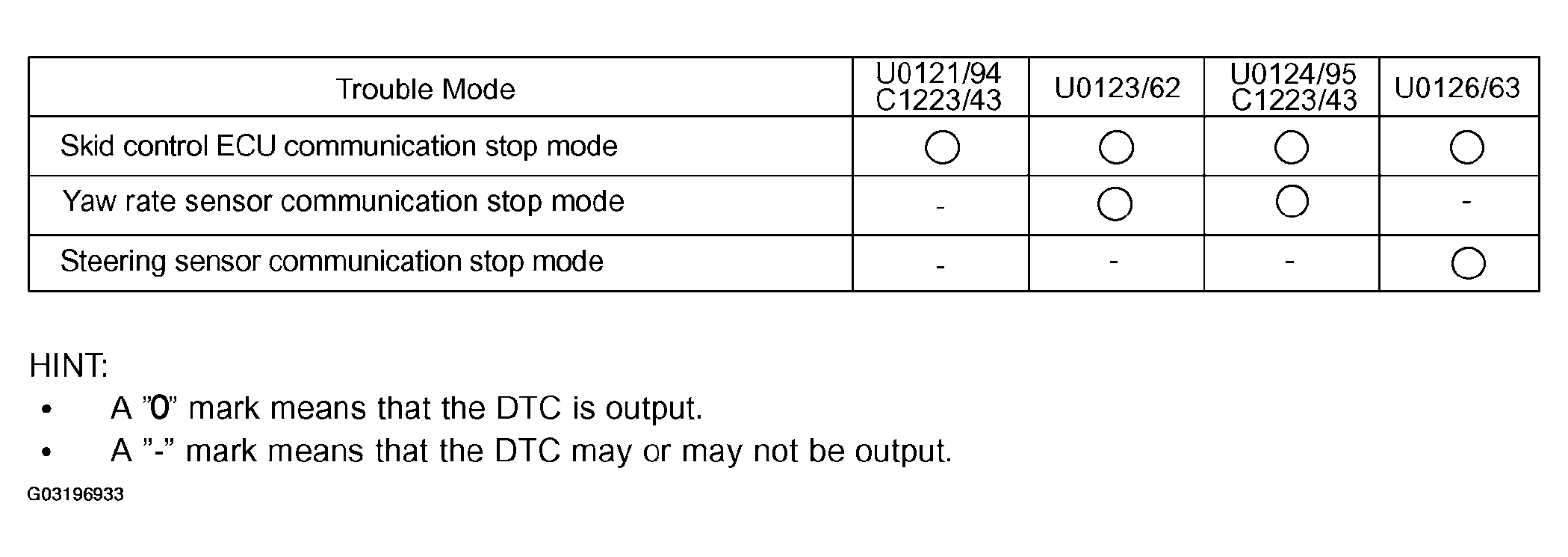

  Fig 1: CAN Communication System Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Depending on the trouble mode, check the trouble areas in Fig 2 .

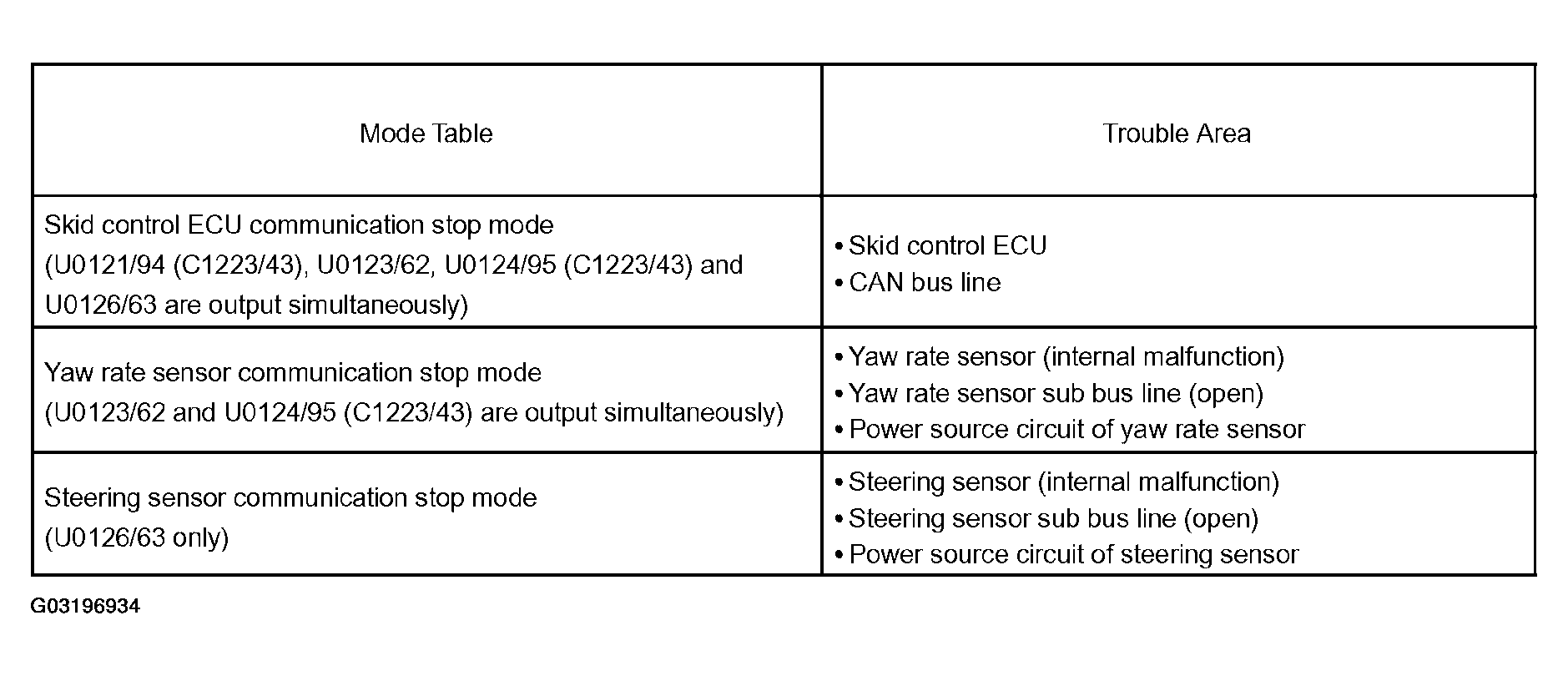

  Fig 2: CAN Communication Troubleshooting Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
