Instrument Panel Air Bag ASSY Lower No.1: Replacement

HINT:

Installation is in the reverse order of removal.

1. PRECAUTION (See  SUPPLEMENTAL RESTRAINT SYSTEM   )
2. DISCONNECT BATTERY NEGATIVE TERMINAL
   CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.
3. REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1
   1. Remove the 3 bolts and the instrument panel airbag assy lower No.1.
   2. Disconnect the connector from the instrument panel airbag assy lower No.1.
   NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

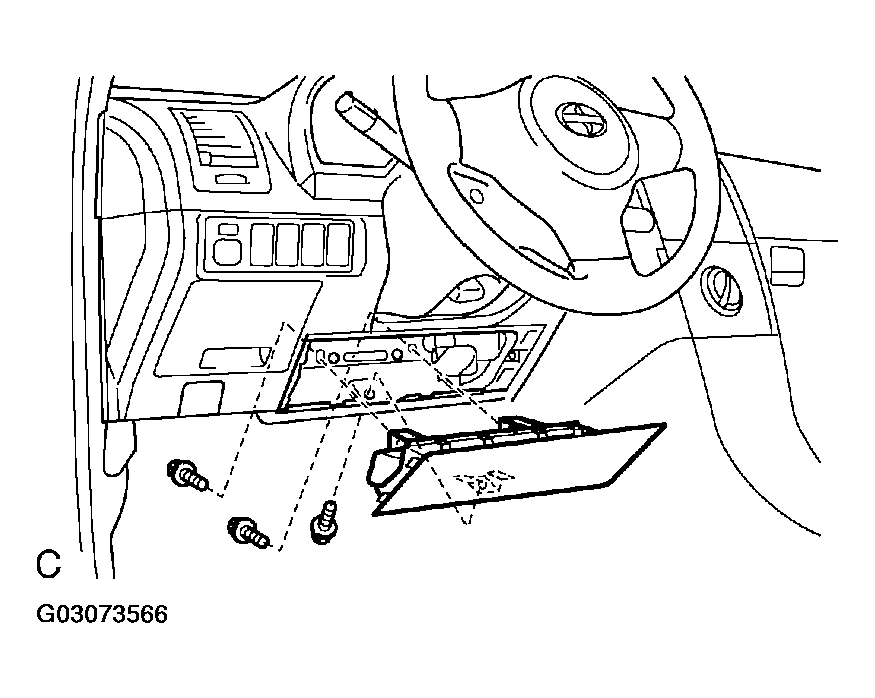

   Fig 1: Removing Bolts And Instrument Panel Airbag Assembly Lower

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSPECT INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (See  ON-VEHICLE INSPECTION   )
5. INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1
   1. Connect the connector to the instrument panel airbag assy lower No.1.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
   2. Install the instrument panel airbag assy lower No.1 with the 3 bolts.
      1. Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
6. CONNECT BATTERY NEGATIVE TERMINAL

   WHEN DISCONNECTING THE BATTERY TERMINAL, INITIALIZE THE FOLLOWING SYSTEMS AFTER THE TERMINAL IS RECONNECTED.

   SYSTEM DESCRIPTION



   System	Refer To
   Power window control system	INITIALIZATION
   Sliding roof system	INITIALIZATION

7. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
