TS Terminal Circuit: Wiring Diagram: Notes

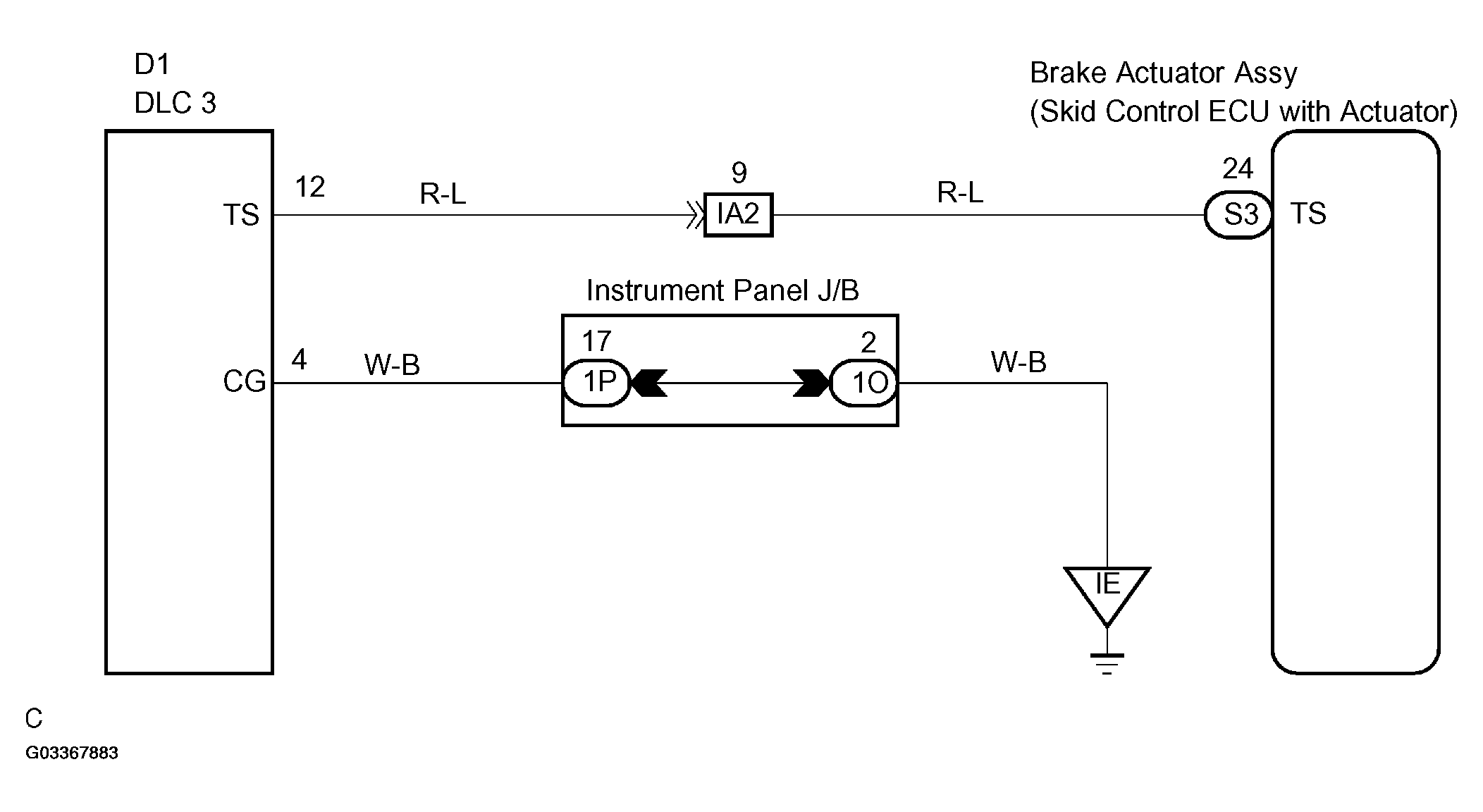

Fig 1: Wiring Diagram - TS Terminal Circuit

G03367883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
