TRAC Off Indicator Light, TRAC Off Switch Circuit: Wiring Diagram

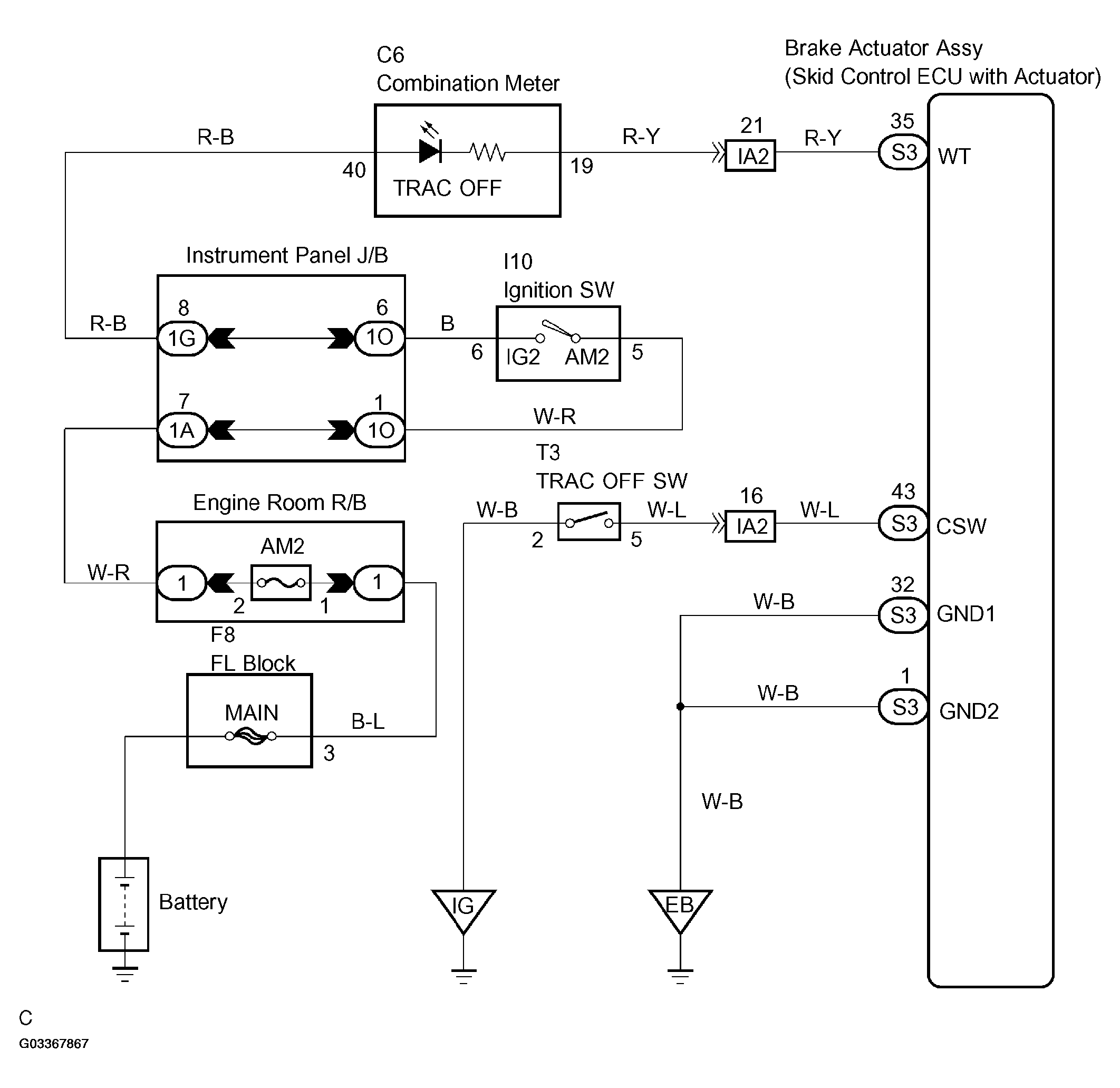

Fig 1: Wiring Diagram - TRAC Off Indicator Light, TRAC Off Switch Circuit

G03367867

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
