Slip Indicator Light Circuit: Wiring Diagram: Notes

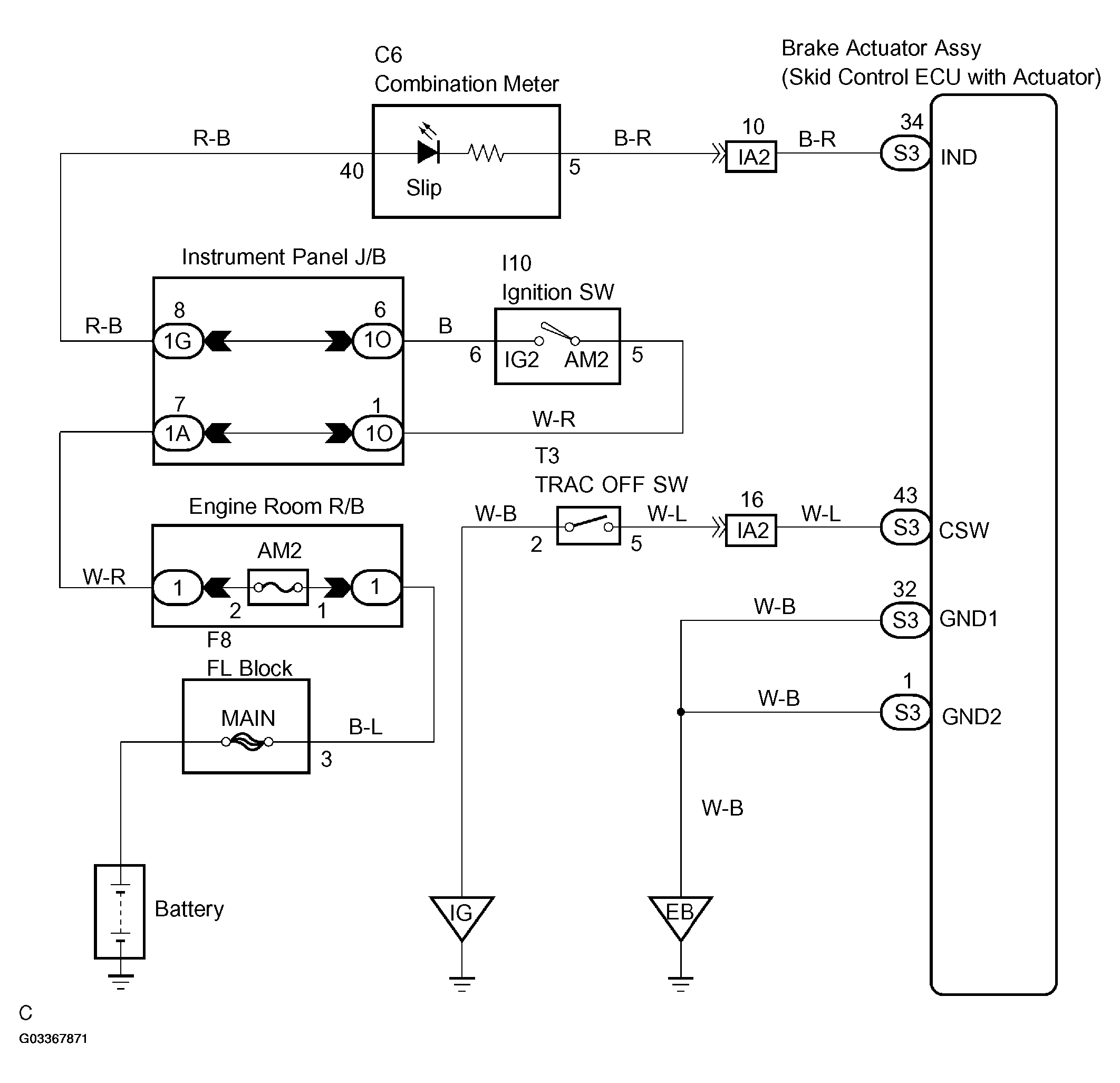

Fig 1: Wiring Diagram - Slip Indicator Light Circuit

G03367871

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
