Skid Control Buzzer Circuit: Wiring Diagram: Notes

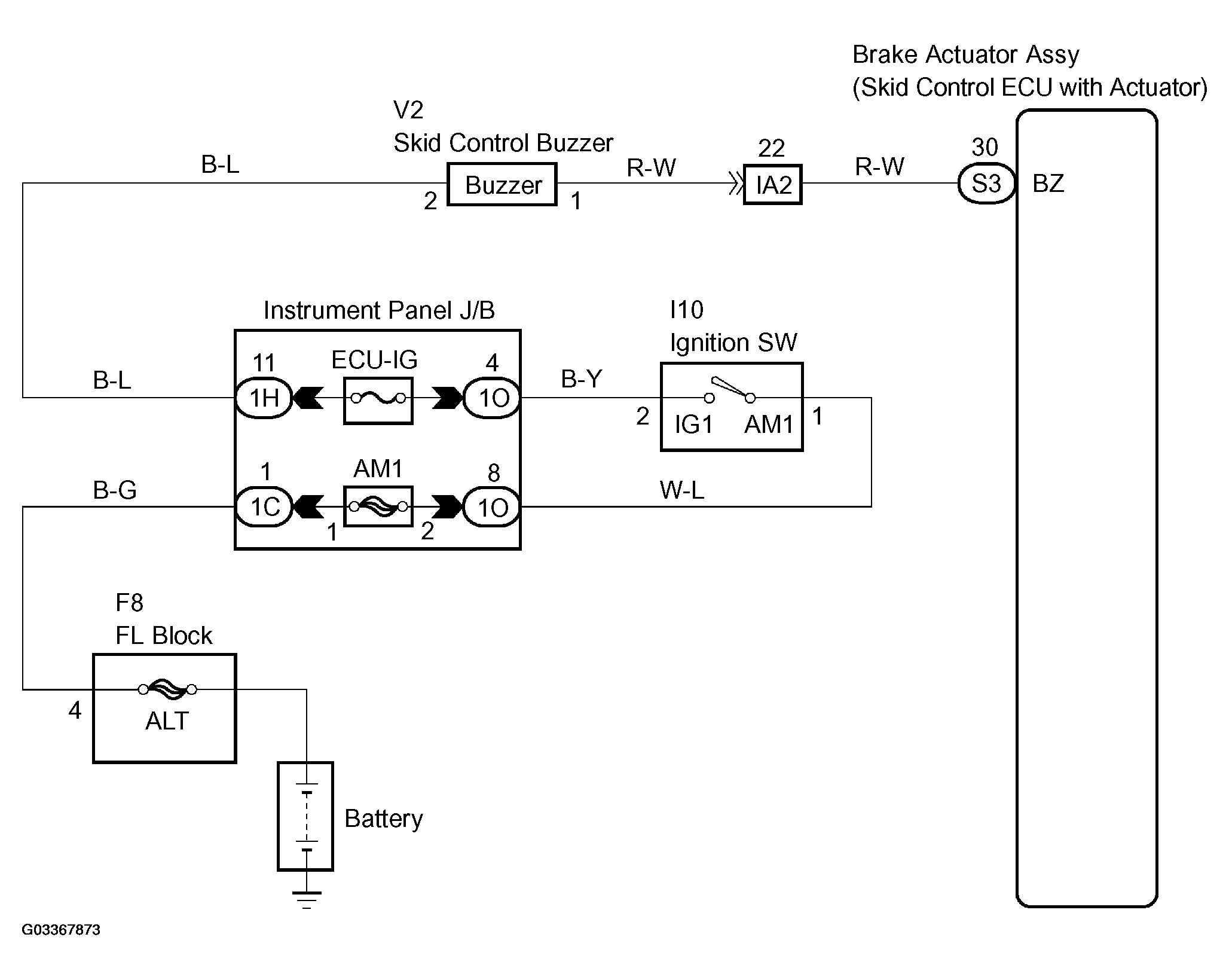

Fig 1: Wiring Diagram - Skid Control Buzzer Circuit

G03367873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
