Home >> Scion >> 2004 >> xB Standard >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs With EBD & BA & TRAC & VSC System - Diagnosis >> Location

Abs With EBD & BA & TRAC & VSC System - Diagnosis: Location

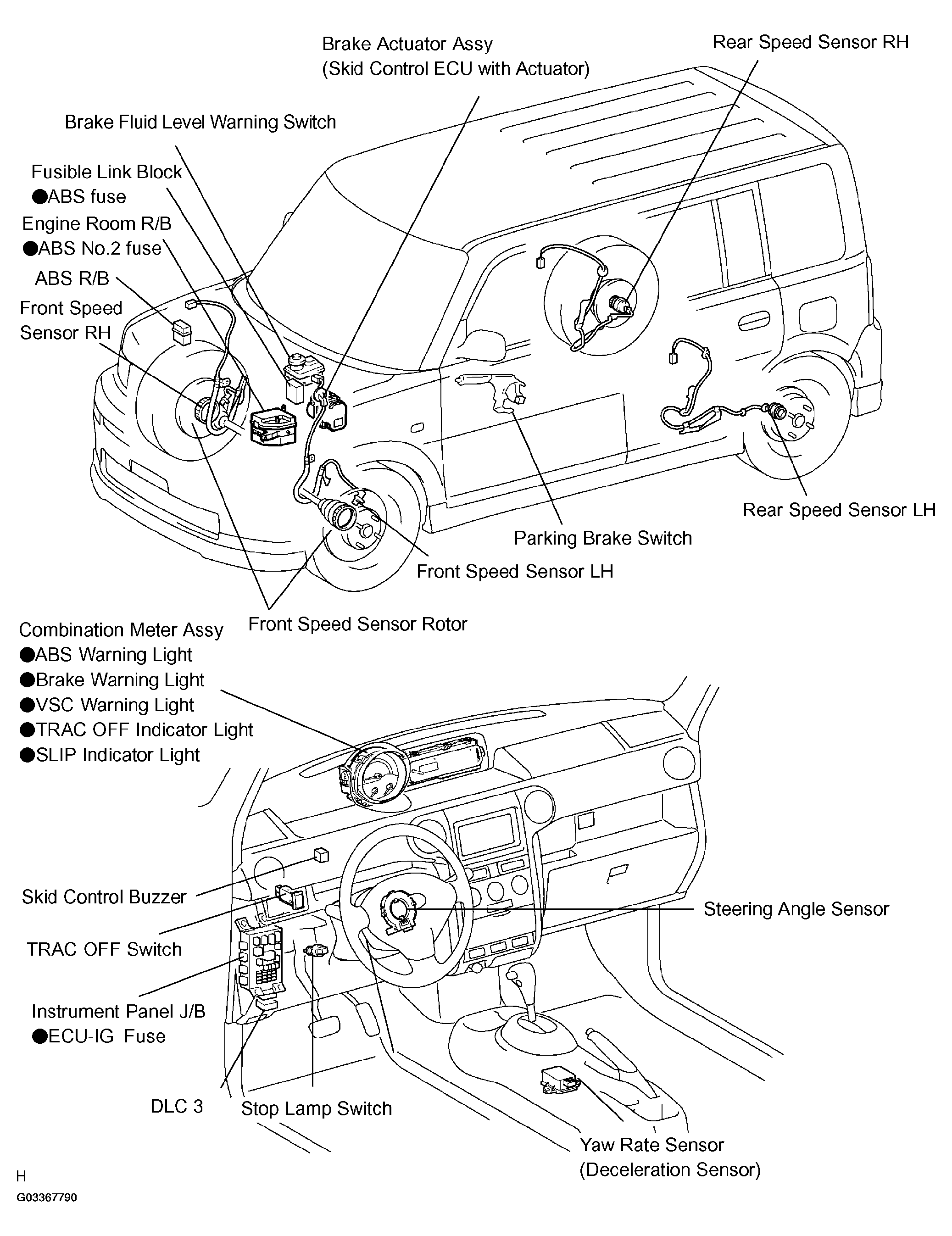

Fig 1: Identifying ABS With EBD , BA , TRAC & VSC System Components Location

G03367790

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
