DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground: Wiring Diagram

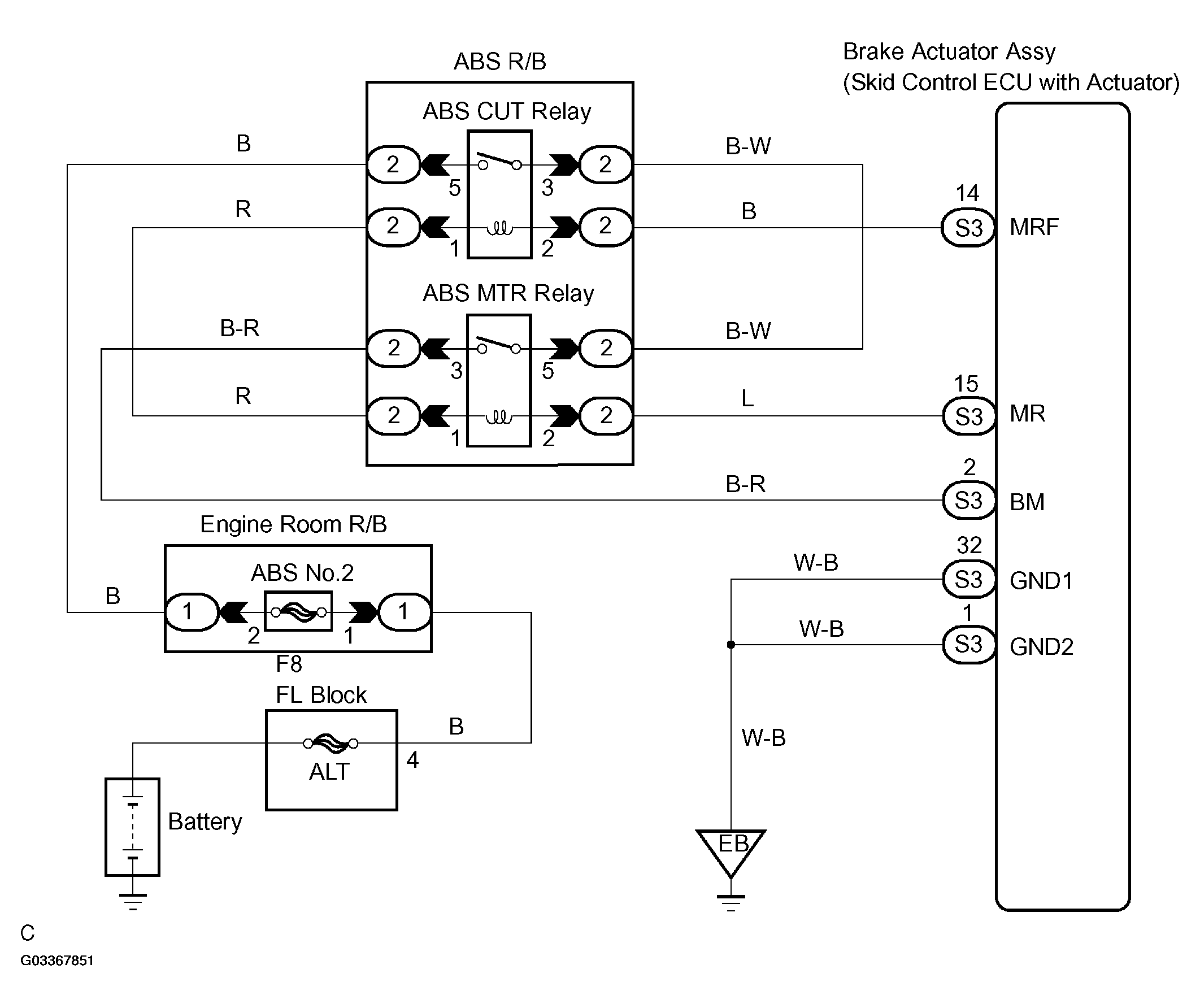

Fig 1: Wiring Diagram - DTC C1251/51

G03367851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
