Home >> Scion >> 2004 >> xB Standard >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs With EBD & BA & TRAC & VSC System - Diagnosis >> DTC C1224/44: Ne Signal Circuit >> Wiring Diagram

DTC C1224/44: Ne Signal Circuit: Wiring Diagram

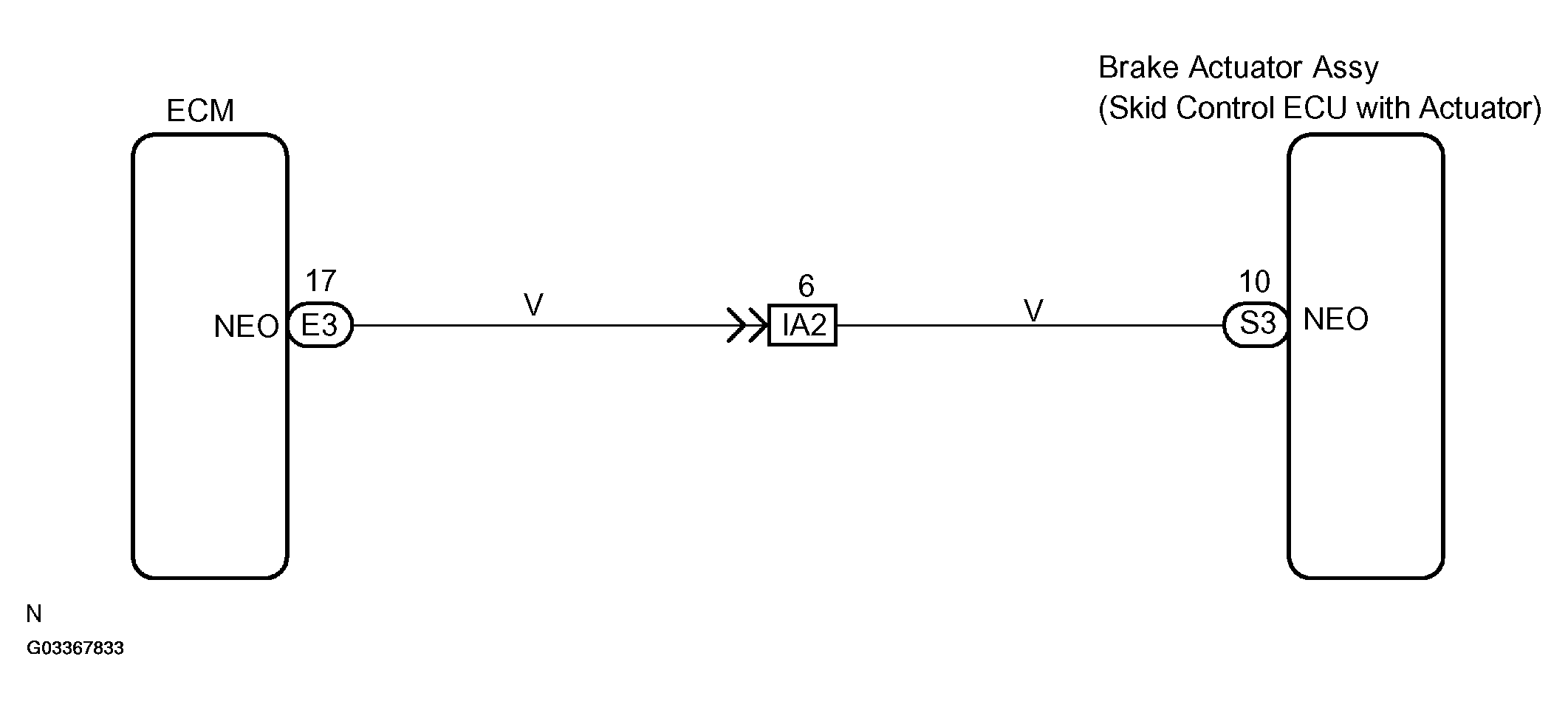

Fig 1: Wiring Diagram - DTC C1224/44

G03367833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
