Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - ECM)
    1. Disconnect the skid control ECU connector and the ECM connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      SKID CONTROL ECU - ECM REFERENCE

      Tester Connection Specified Condition
      NEO (S3-10) - NEO (E3-17) 1 Ωor less
    3. Measure the resistance according to the value (s) in the table below.

    Standard:

    SKID CONTROL ECU - ECM REFERENCE

    Tester Connection Specified Condition
    NEO (S3-10) - Body ground 10 kΩor higher

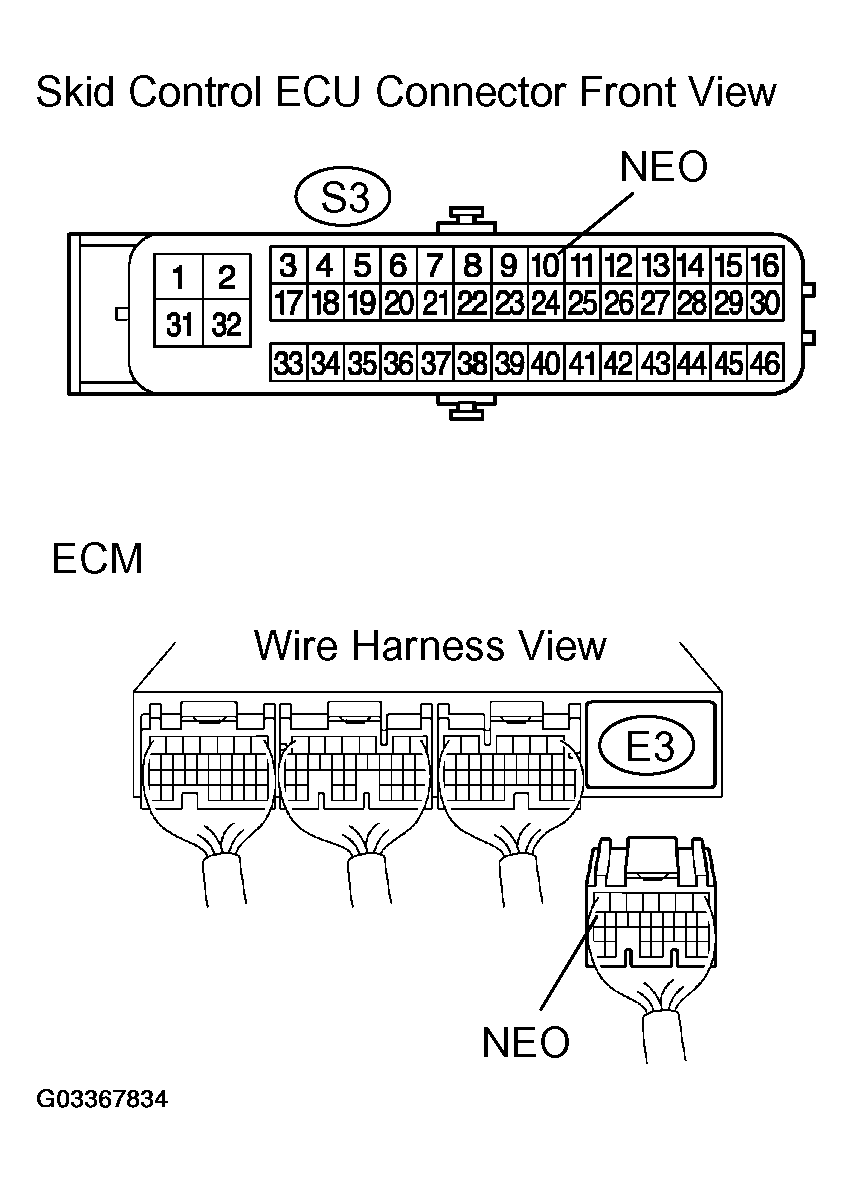

    Fig 1: Identifying Skid Control ECU - ECM Connector Terminals
    G03367834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: Go to next step.
  2. INSPECT ECM TERMINAL VOLTAGE (NEO TERMINAL)
    1. Measure the voltage according to the value in the table below.
      Fig 2: Identifying ECM Terminal
      G03367835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    ECM TERMINAL VOLTAGE

    Tester Connection Engine Condition Specified condition
    NEO (E3 17) Body ground OFF (Ignition switch ON) 10 to 14 V or below 1 V
    ON (Idling) 10 to 14 V <->below 1 V (Pulse)
    Fig 3: ECM Terminal Voltage Reference Graph
    G03367836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: CHECK AND REPLACE ECM
    2. OK: IF THE SAME CODE IS STILL OUTPUT AFTER THE DTC IS DELETED, CHECK THE CONTACT CONDITION OF EACH CONNECTION
