DTC C1210/36, C1336/39: Zero Point Calibration Of Yaw Rate Sensor Undone, Zero Point Calibration Of Deceleration Sensor Undone: Wiring Diagram

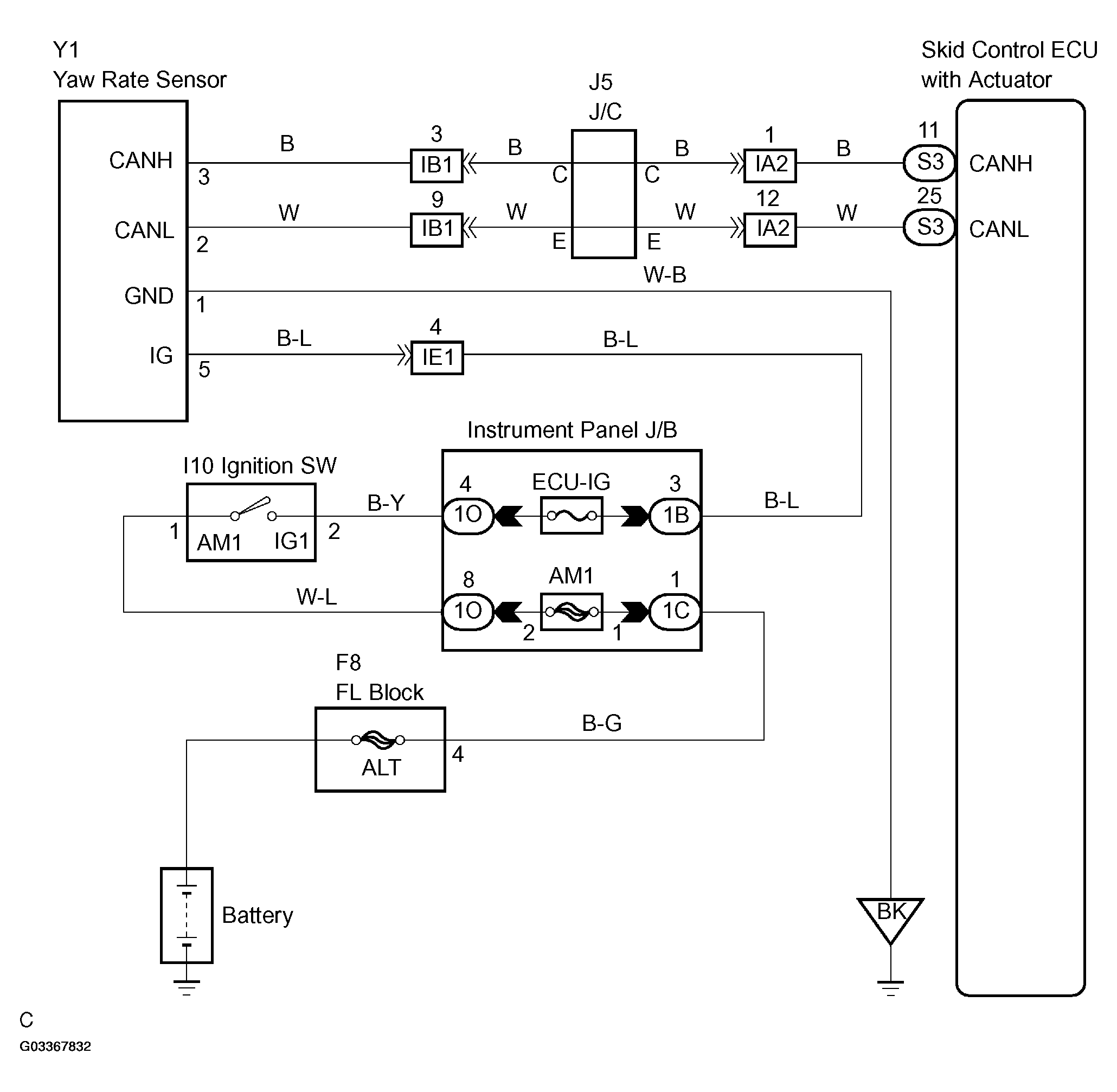

Fig 1: Wiring Diagram - DTC C1210/36, C1336/39
G03367832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
