Inspection Procedure

1. Disconnect the skid control connector and ECM connector.
2. Measure the resistance according to the value (s) in the table below.

   Standard:

   ENG+, ENG-, TRC+, TRC- OF ECM AND SKID CONTROL ECU RESISTANCE



   Tester Connection	Specified Condition
   TRC+ (E3-25) - TRC+ (S3-8)	1 Ωor less
   ENG+ (E3-24) - ENG+ (S3-9)
   TRC- (E3-31) - TRC- (S3-22)
   ENG- (E3-30) - ENG- (S3-23)

3. Measure the resistance according to the value (s) in the table below.

Standard:

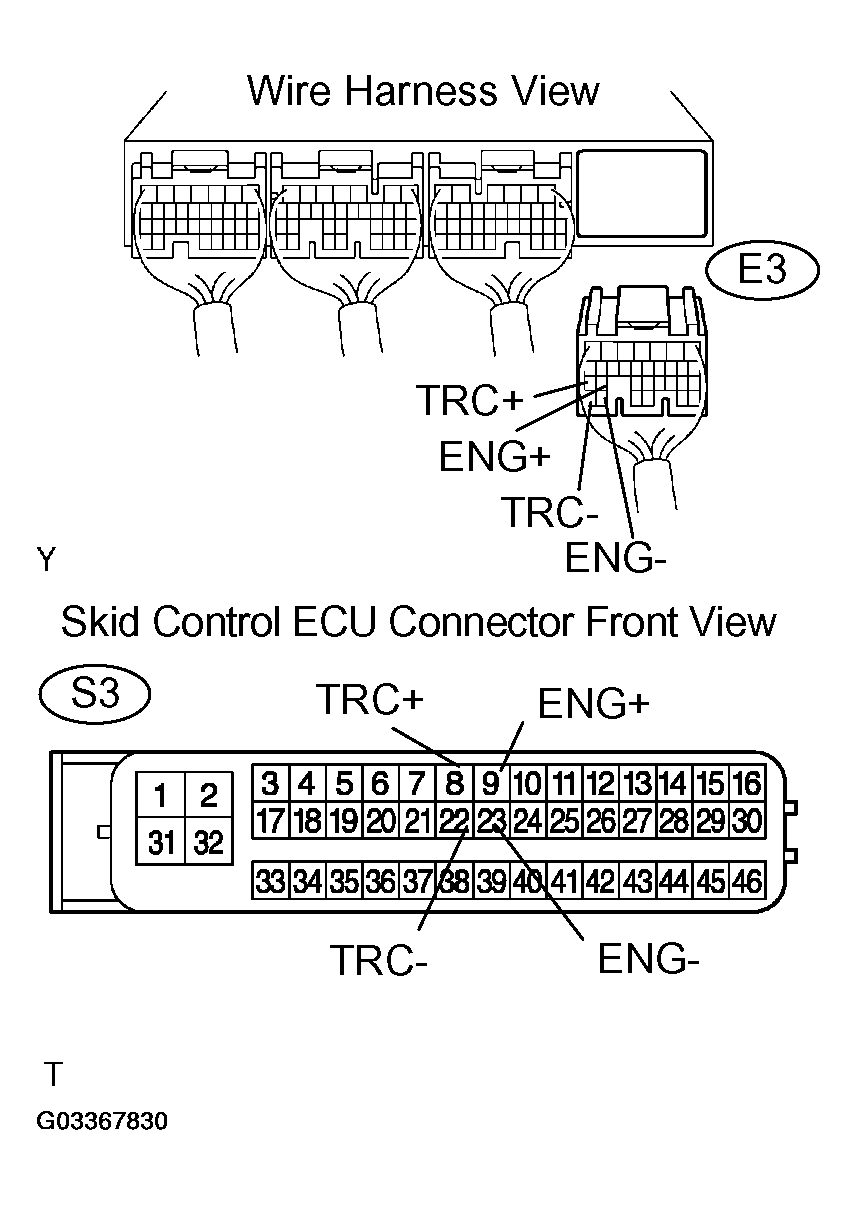

Fig 1: Identifying ENG+, ENG-, TRC+, TRC- OF ECM & Skid Control ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: Go to next step.

1. Disconnect ECM connector.
2. Measure the resistance according to the value (s) in the table below.

Standard:

Fig 2: Identifying E1 Of ECM & Body Ground Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
2. OK: REPLACE ECM
