DTC C0278/11, C0279/12: Open Circuit In Abs Solenoid Relay Circuit, Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

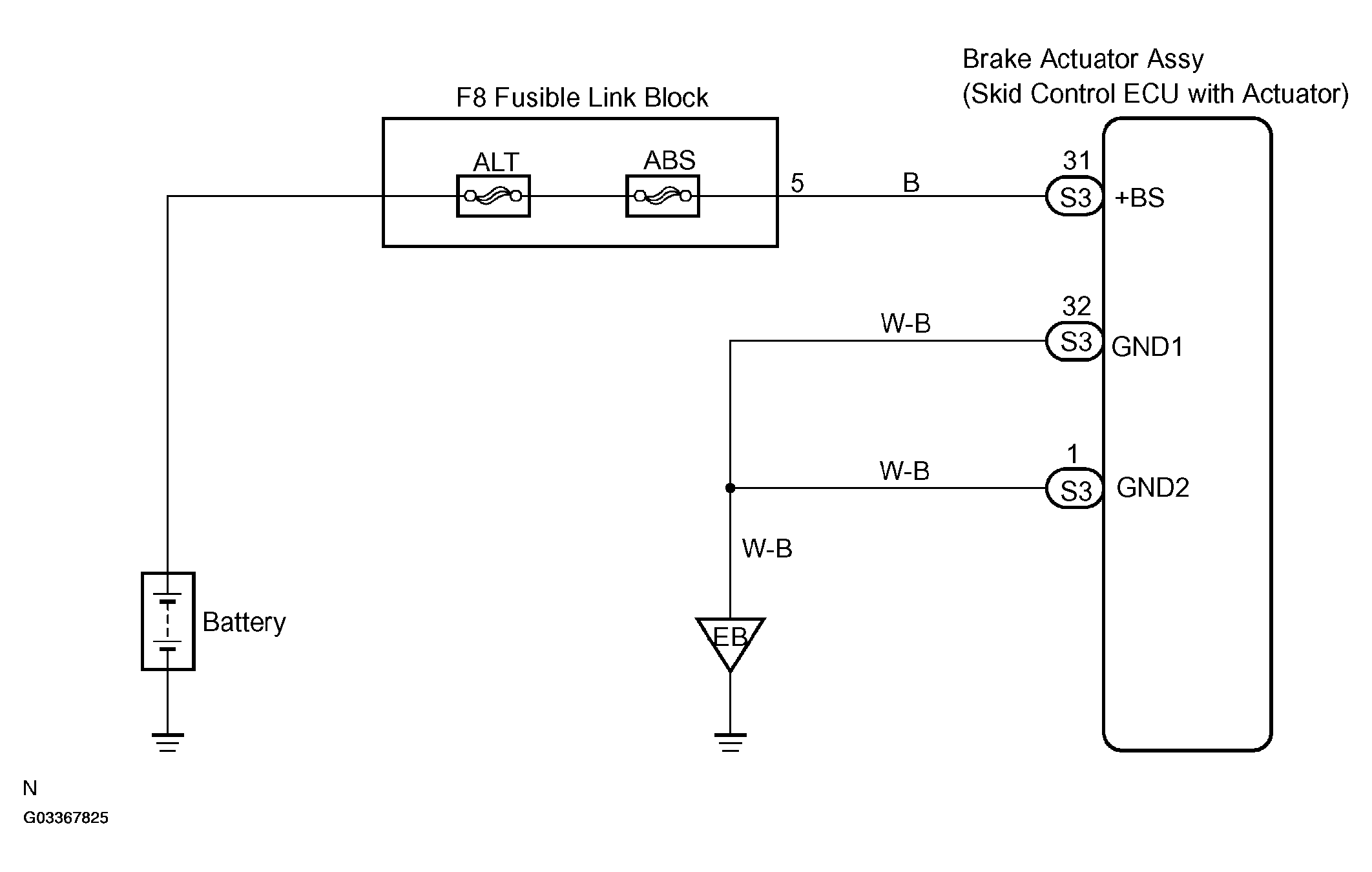

Fig 1: Wiring Diagram - DTC C0278/11, C0279/12
G03367825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
