DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25: SFR Solenoid Circuit, SFL Solenoid Circuit, SRR Solenoid Circuit, SRL Solenoid Circuit, SMC Solenoid Circuit: Wiring Diagram

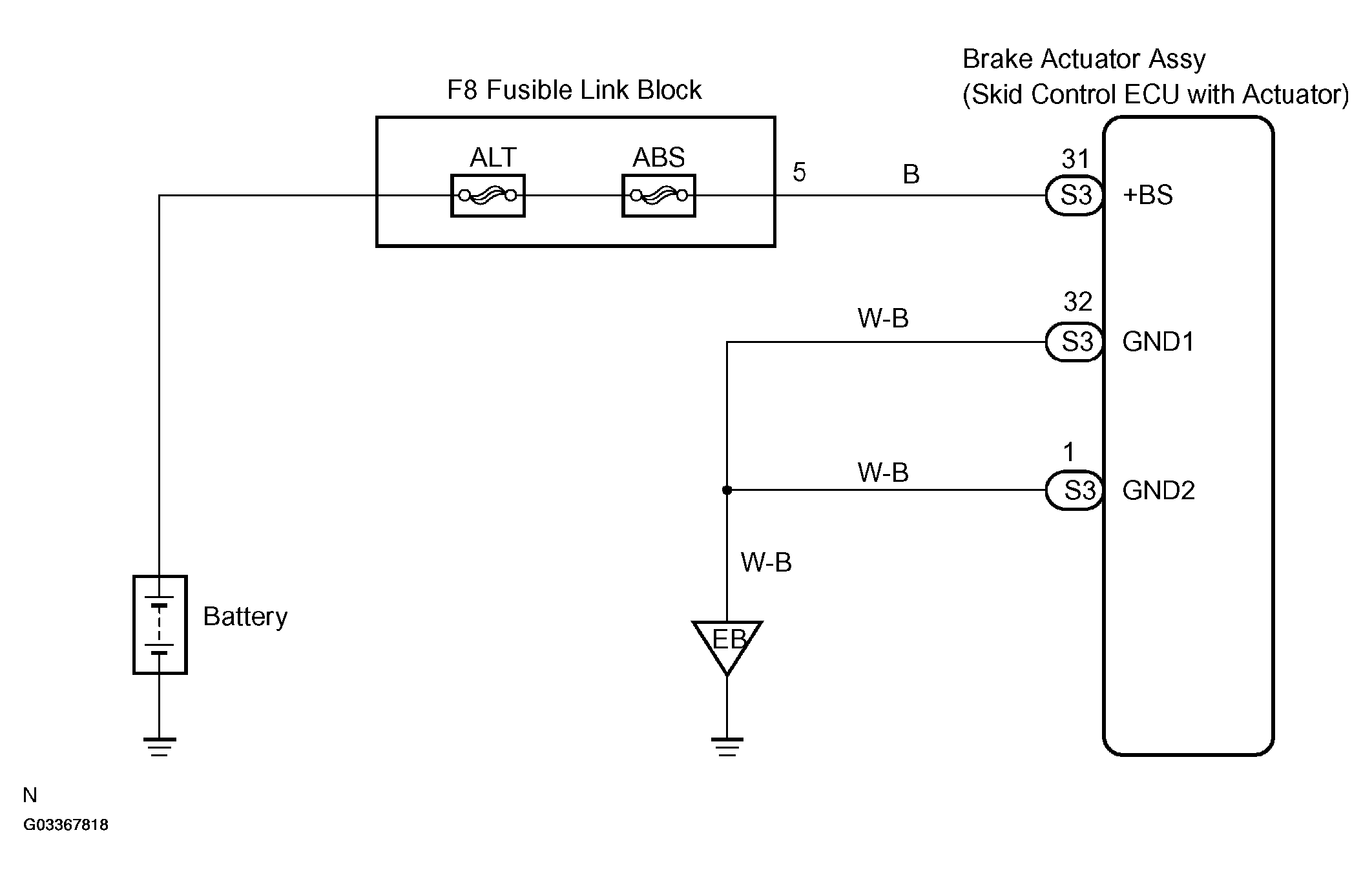

Fig 1: Wiring Diagram - DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
