Head Light Dimmer Switch: Replacement

REMOVE STEERING COLUMN COVER (See STEERING COLUMN ASSY )
REMOVE HEADLAMP DIMMER SWITCH ASSY
1. Disconnect the connecter.
2. Using a screwdriver, disengage the claw and pull out the headlamp dimmer switch assy.
  HINT:

  Tape up the screwdriver tip before use to avoid damage.

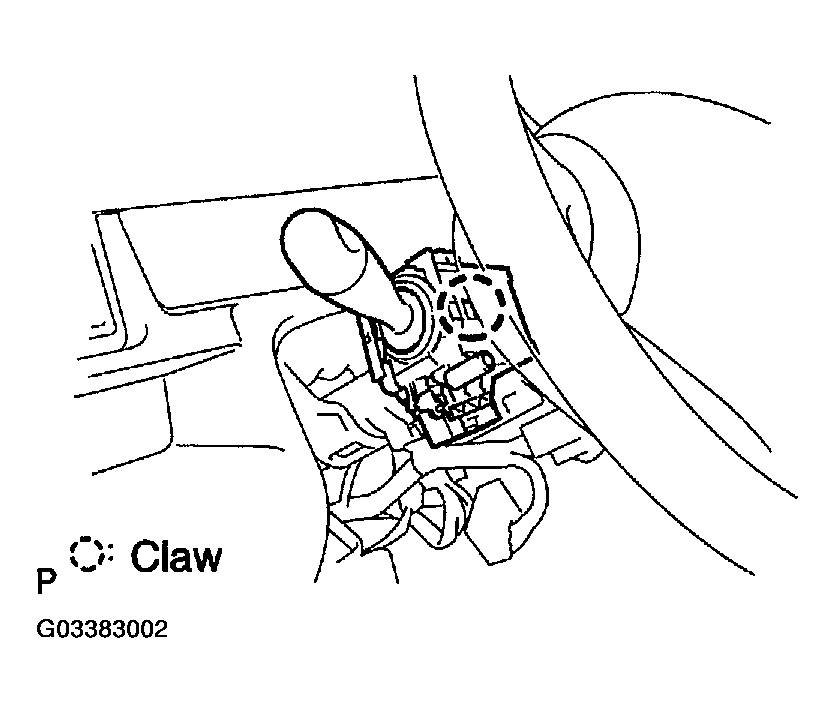

  Fig 1: Identifying Head Light Dimmer Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (See STEERING COLUMN ASSY )
