Warning Buzzer Does Not Sound: Wiring Diagram

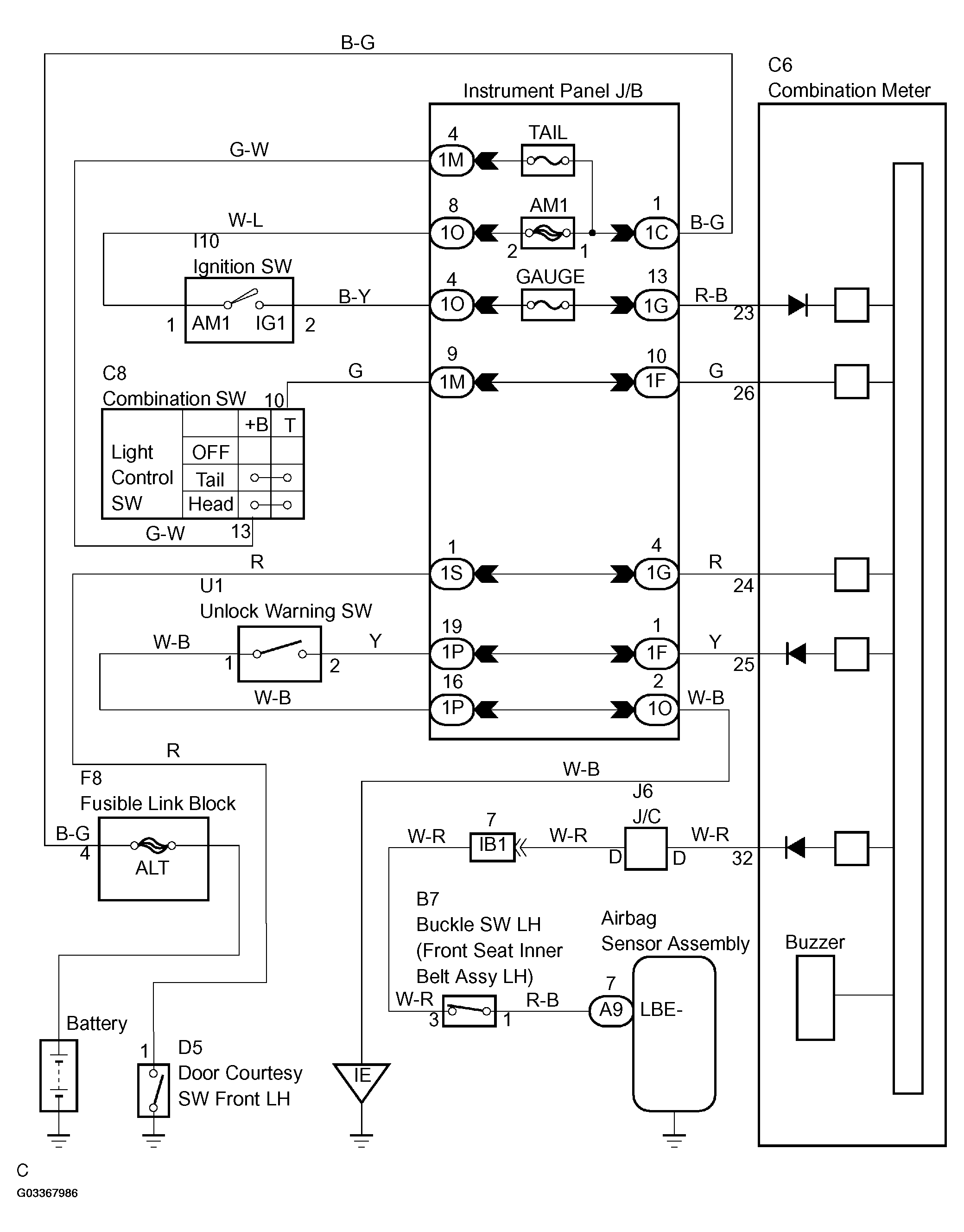

Fig 1: Identifying Wiring Diagram (Warning Buzzer Does Not Sound)

G03367986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
