Seat Belt Warning Lamp For Front Passenger's Seat Does Not Flash: Wiring Diagram

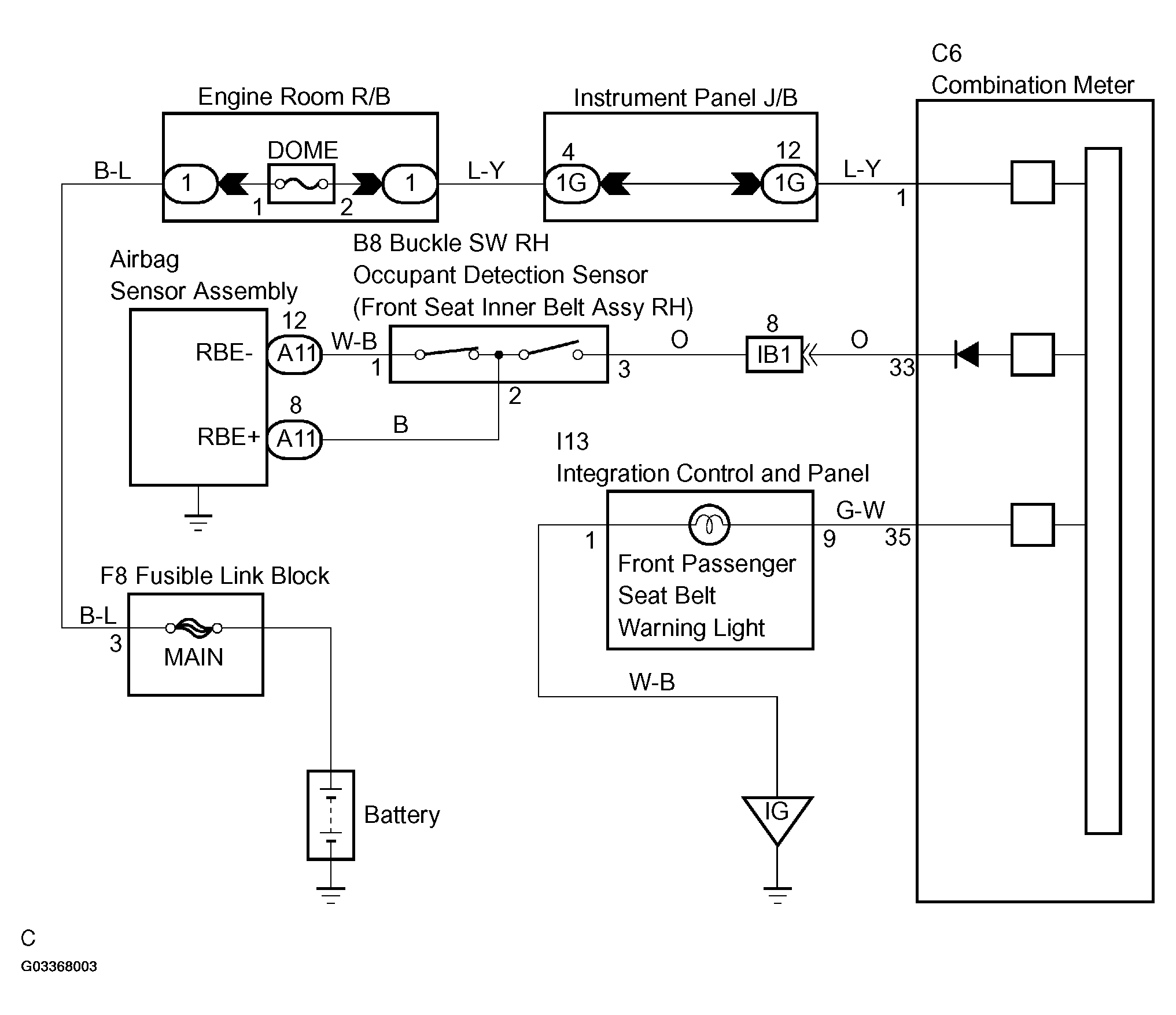

Fig 1: Identifying Wiring Diagram (Seat Belt Warning Lamp For Front Passenger's Seat Does Not Flash)
G03368003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
