Inspection Procedure
- INSPECT FUSE
- Inspect the MAIN fuse in the FL block.
Standard:
Below 1 Ω
- Inspect the DOME fuse in the engine room R/B.
Standard:
Below 1 Ω
- NG: INSPECT FOR SHORT CIRCUIT IN HARNESS AND ALL COMPONENTS CONNECTED TO FUSE
- OK: Go to next step.
- Inspect the MAIN fuse in the FL block.
- Inspect Combination Meter Assy
- Disconnect the combination meter connector.
- Measure the voltage according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITIONTester connection Condition Specified condition C6-1 - Body ground Always 10 to 14 V
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - COMBINATION METER ASSY) (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
- OK: Go to next step.
- INSPECT FRONT SEAT INNER BELT ASSY RH
- Disconnect the front seat inner belt assy RH connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITIONTester connection Condition Specified condition 1 - 3 Front passenger seat is occupied and front passenger side seat belt is fastened 1,200 to 1,460 Ω 1 - 3 Front passenger seat is occupied and front passenger side seat belt is unfastened 300 to 360 Ω
- NG: REPLACE FRONT SEAT INNER BELT ASSY RH
- OK: Go to next step.

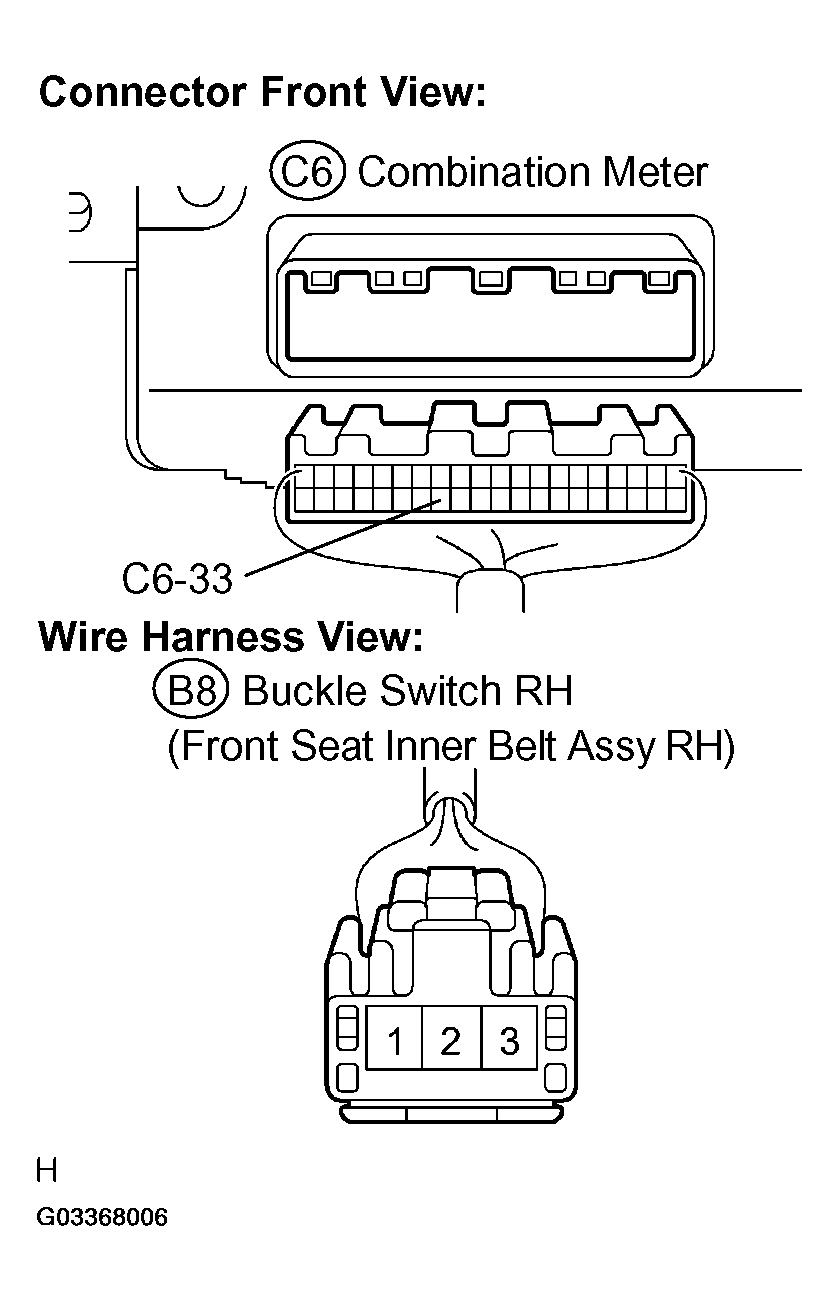

- CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSY - FRONT SEAT INNER BELT ASSY RH)
- Disconnect the combination meter connector and front seat inner belt connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITIONTester connection Condition Specified condition C6-33 - B8-3 Always Below 1 Ω B8-1 - Body ground Always Below 1 Ω C6-33 - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
- OK: Go to next step.
- INSPECT CENTER CLUSTER MODULE SWITCH
- Disconnect the I13 connector of center cluster module switch.
- Connect the positive (+) lead from the battery to terminal I13-9, negative (-) lead from the battery to terminal I13-1.
Standard:
Passenger side seat belt warning light comes on.
- NG: REPLACE CENTER CLUSTER MODULE SWITCH (See )
- OK: Go to next step.

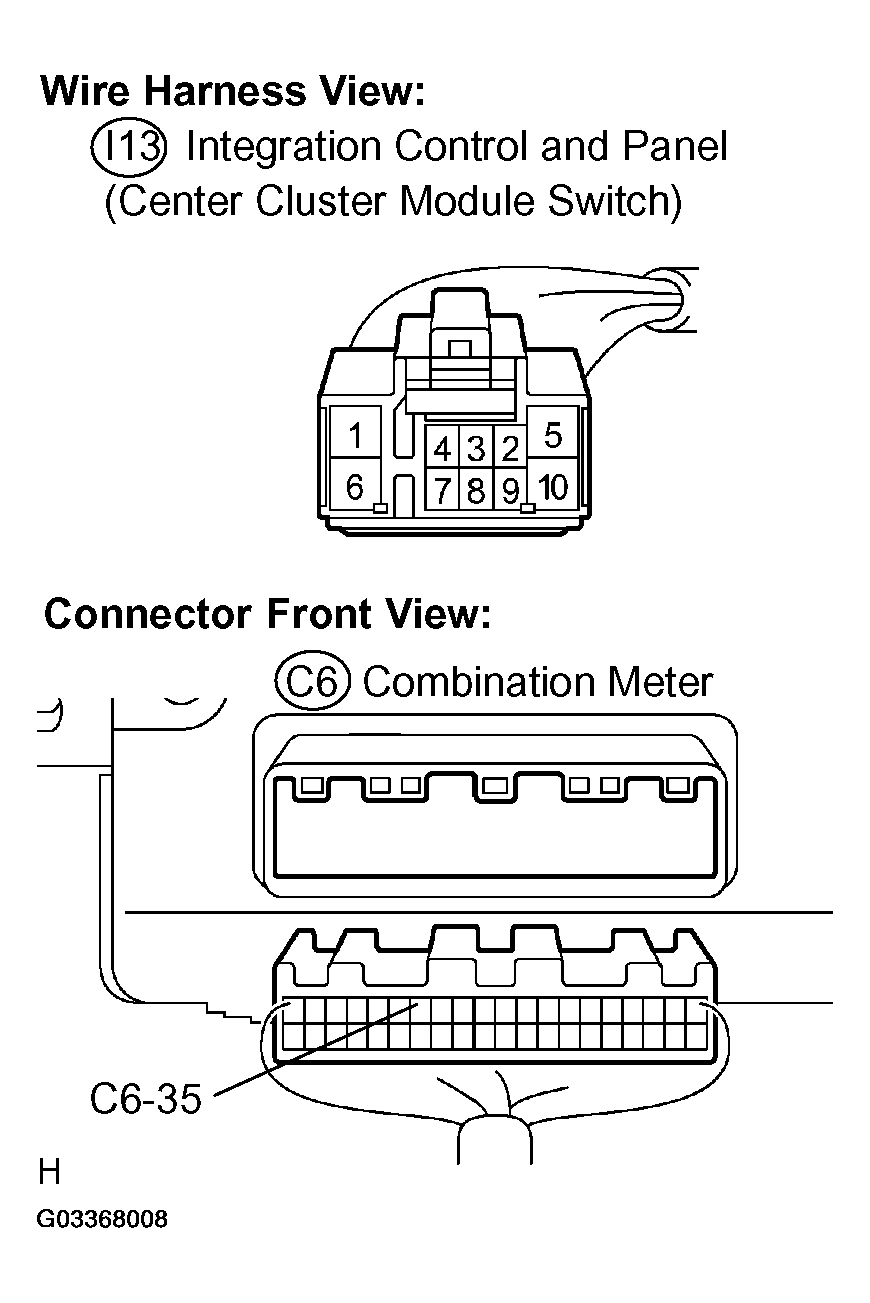

- CHECK HARNESS AND CONNECTOR (CENTER CLUSTER MODULE SWITCH - COMBINATION METER ASSY)
- Disconnect the I13 connector of center cluster module switch and combination meter connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITIONTester connection Condition Specified condition I13-9 - C6-35 Always Below 1 Ω I13-1 - Body ground Always Below 1 Ω C6-35 - Body ground Always 10 kΩ or higher
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
- OK: REPLACE COMBINATION METER ASSY (See COMBINATION METER ASSY )
