Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

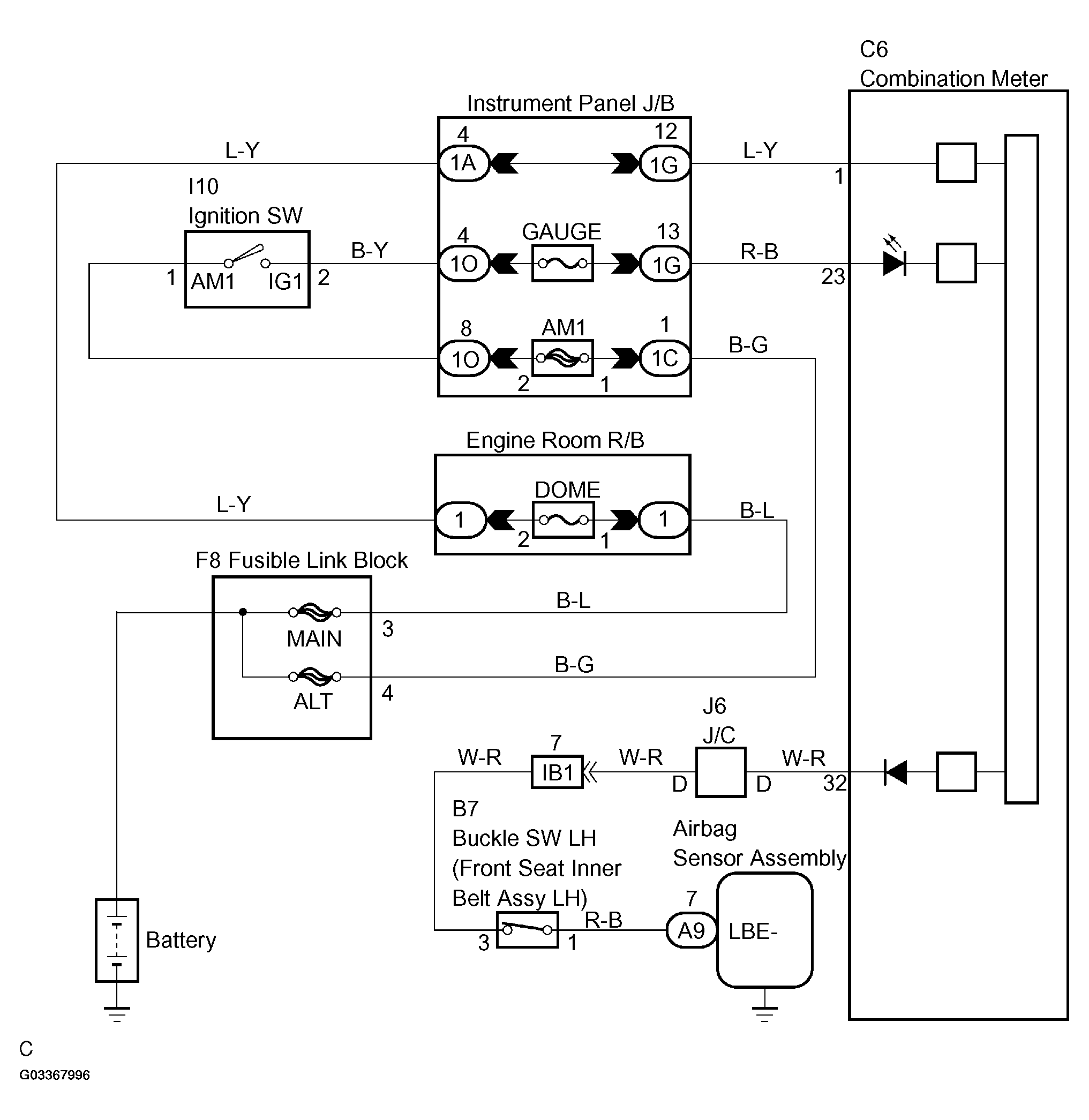

Fig 1: Identifying Wiring Diagram (Seat Belt Warning Lamp For Driver's Seat Does Not Operate)
G03367996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
