Home >> Scion >> 2004 >> xB Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Combination Meter - Diagnosis >> Operating Light Control Rheostat Does Not Change Light Brightness >> Wiring Diagram

Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

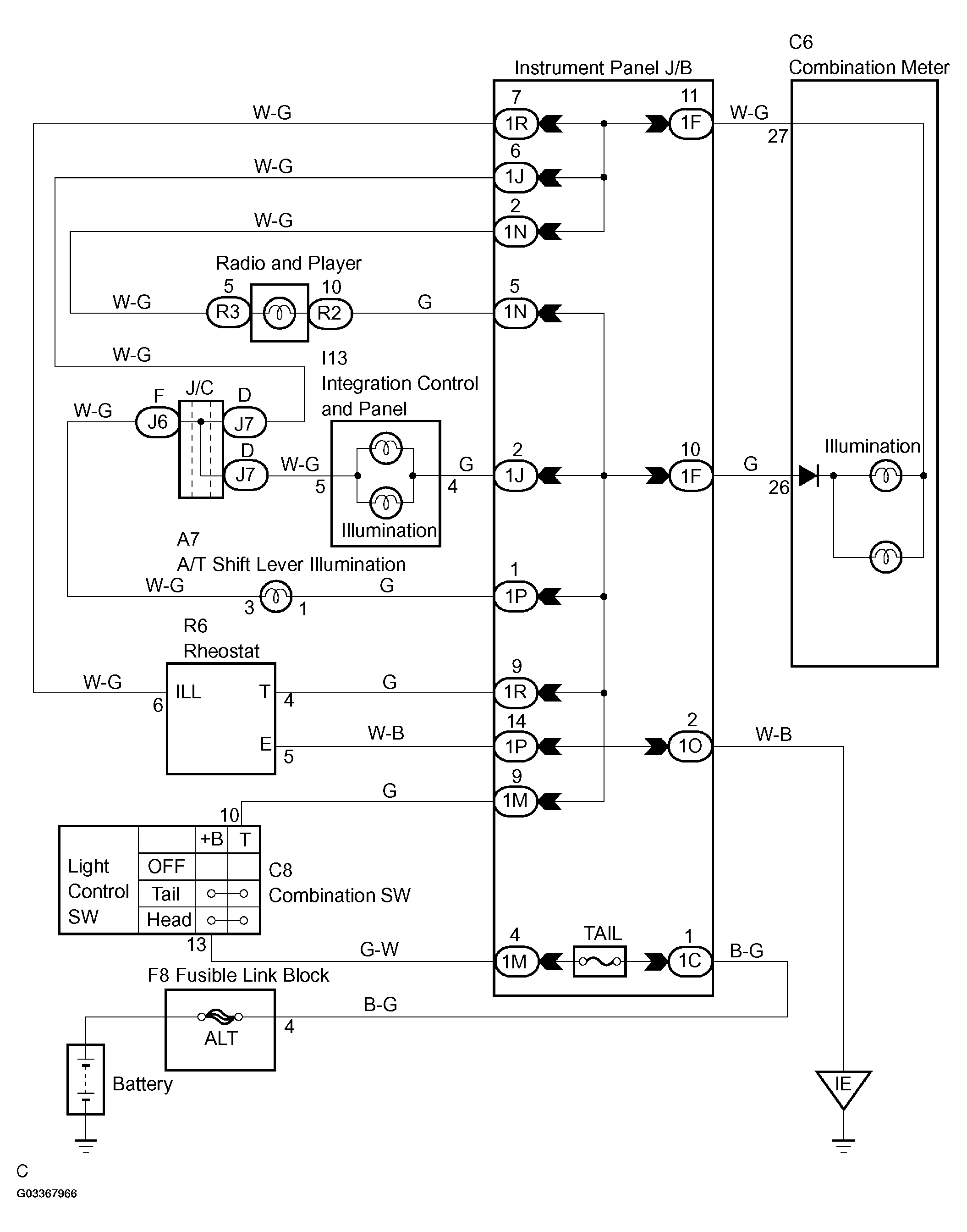

Fig 1: Identifying Wiring Diagram (Operating Light Control Rheostat)

G03367966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
