Malfunction In Tachometer: Wiring Diagram

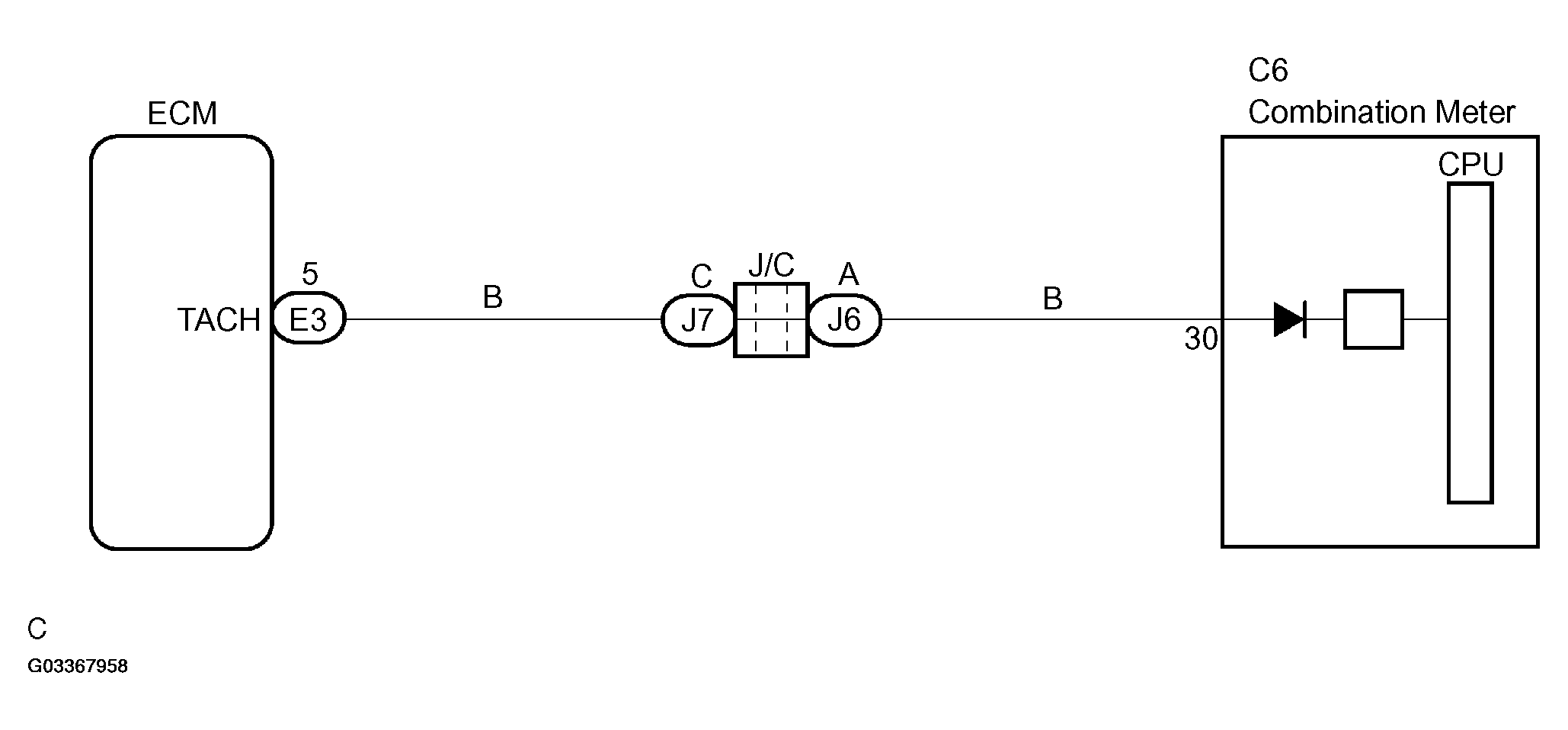

Fig 1: Identifying Wiring Diagram (Malfunction In Tachometer)

G03367958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
