Inspection Procedure

HINT:

Start the inspection from step 1 when using the hand-held tester, and start from step  2 when not using the hand-held tester.

1. READ VALUE OF HAND-HELD TESTER
   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to the ON position and press the hand-held tester main switch on.
   3. Select the item below in the DATA LIST, and read the displays on the hand-held tester.

   ALL:

   DATA LIST



   Hand-held Tester Display	Measurement Item/Range (Display)	Normal Condition	Diagnostic Note
   ENGINE SPD((1))	Engine speed/ Min.: 0 rpm, Max.: 16383 rpm	Idling: 650 to 750 rpm	-
   (1) ECM Data

   1. NG: GO TO FLOW CHART (SFI SYSTEM) (See  HOW TO PROCEED WITH TROUBLESHOOTING  )
   2. OK: Go to next step.
2. INSPECT COMBINATION METER ASSY
   1. Measure the voltage according to the value(s) in the table below.

      Standard:

      INSPECTING COMBINATION METER ASSY



      Tester connection	Condition	Specified condition
      C6-30 - Body ground	Engine running	Pulse generation (*1)

      Fig 1: Inspecting Combination Meter Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *1: Reference: Using oscilloscope:

      REFERENCE: USING OSCILLOSCOPE (ENGINE IDLE SPEED)



      Item	Contents
      Tool setting	5 V/ DIV, 10 ms/ DV
      Vehicle condition	Engine idle speed

      Fig 2: Identifying Oscilloscope Graph At Engine Idle Speed

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: Go to step 3
   2. OK: REPLACE COMBINATION METER ASSY (See  COMBINATION METER ASSY  )
3. CHECK HARNESS AND CONNECTOR (ECM - COMBINATION METER ASSY)
   1. Disconnect the combination meter connector and E3 connector of ECM.
   2. Measure the resistance according to the value(s) in the table below.

      Standard:

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester connection	Condition	Specified condition
      C6-30 - E3-5 (TACH)	Always	Below 1 Ω
      C6-30 - Body ground	Always	10 kΩ or higher

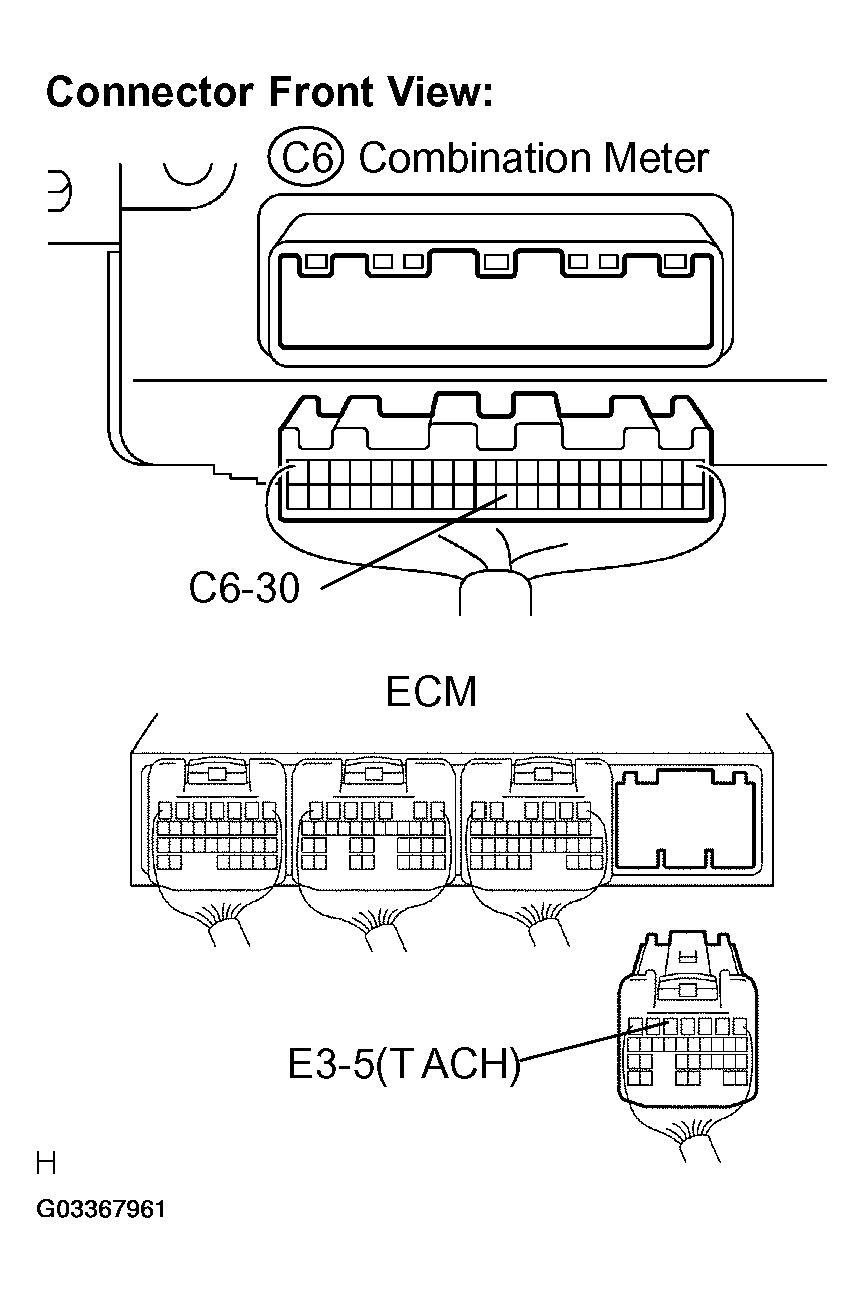

      Fig 3: Checking Harness And Connector (ECM - Combination Meter Assy)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
   2. OK: REPLACE ECM (See  REPLACEMENT  )
