Inspection Procedure

HINT:

Start the inspection from step 1 when using the hand-held tester, and start from step 2 when not using the hand-held tester.

READ VALUE OF HAND-HELD TESTER

Connect the hand-held tester to the DLC3.
Turn the ignition switch to the ON position and press the hand-held tester main switch on.
Select the item below in the DATA LIST, and read the displays on the hand-held tester.

ALL:

VALUE OF HAND-HELD TESTER

Hand-held Tester Display

Measurement Item/Range (Display)

Normal Condition

Diagnostic Note

VEHICLE SPD(⁽¹⁾)

Wheel speed sensor (FR) reading / min.: 0 km/h (0 MPH, max.: 326 km/h (202 MPH)

Actual vehicle speed

⁽¹⁾

ABS Data

NG: GO TO FLOW CHART OR PROBLEM SYMPTOMS TABLE (ABS with EBD & BA & TRAC & VSC SYSTEM) (See HOW TO PROCEED WITH TROUBLESHOOTING )
OK: Go to next step.

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER ASSY)

Measure the resistance according to the value(s) in the table below.

Standard:

TESTER CONNECTION AND SPECIFIED CONDITION

Tester connection	Condition	Specified condition
C6-28 - S3-12 (SP1)	Always	Below 1 Ω
C6-28 - Body ground	Always	10 kΩ or higher

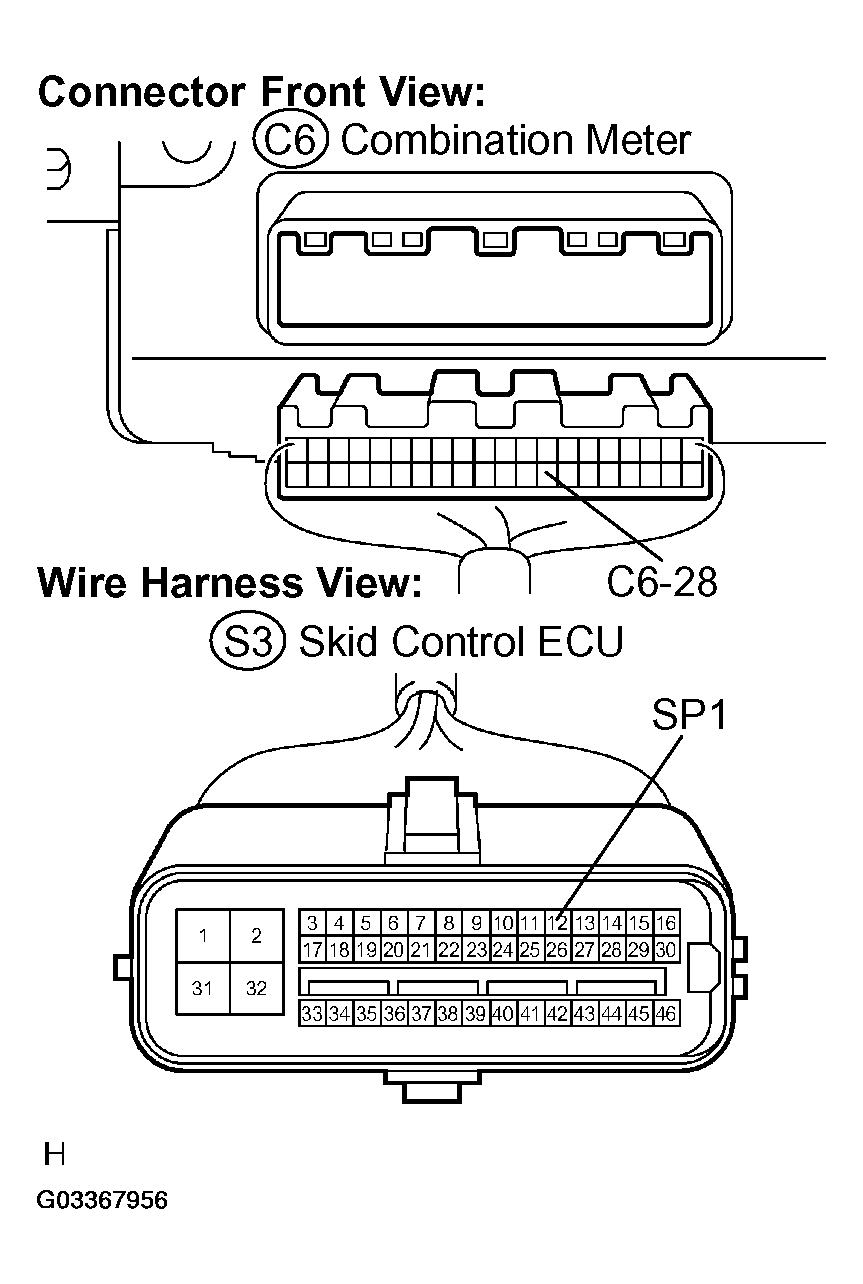

Fig 1: Checking Harness And Connector (Skid Control ECU - Combination Meter Assy)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
OK: Go to next step.

INSPECT COMBINATION METER ASSY

Measure the voltage according to the value(s) in the table below.

Standard:

TESTER CONNECTION AND SPECIFIED CONDITION

Tester connection	Condition	Specified condition
C6-28 - Body ground	Ignition switch OFF --> ON	Below 1 V --> 10 to 14 V

Fig 2: Inspecting Combination Meter Assy
