Inspection Procedure

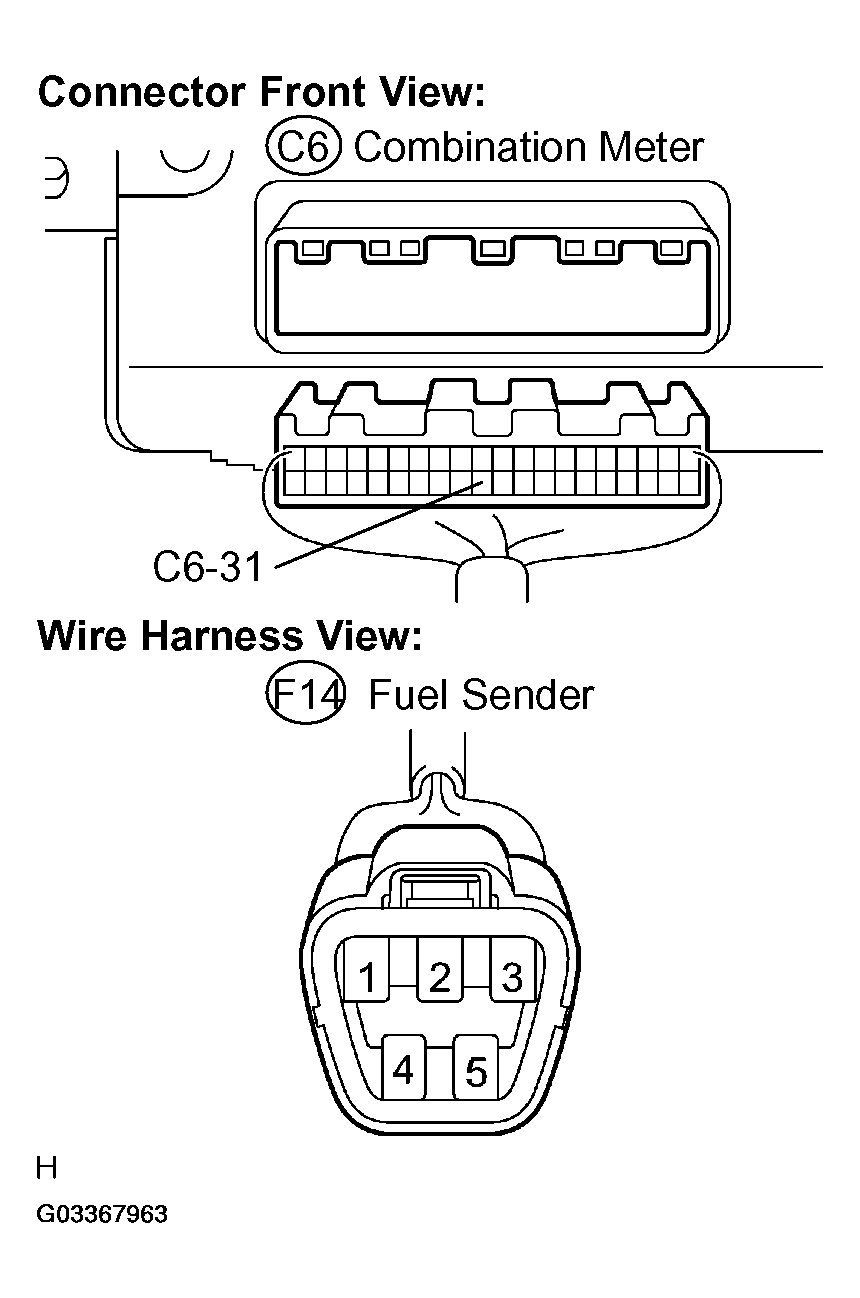

- CHECK HARNESS AND CONNECTOR (FUEL SENDER GAGUE ASSY - COMBINATION METER ASSY)
- Disconnect the fuel sender gauge connector and combination meter connector.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION AND SPECIFIED CONDITIONTester connection Condition Specified condition C6-31 - F14-2 Always Below 1 Ω C6-31 - Body ground Always 10 kΩ or higher F14-3 - Body ground Always Below 1 Ω
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
- OK: Go to next step.
- INSPECT FUEL SENDER GAUGE ASSY
- Remove the fuel sender gauge.
- Connect the ohmmeter to terminals 2 and 3.
- Measure the resistance according to the value(s) in the table below.
Standard:
FLOAT POSITION AND RESISTANCEFloat level Float position Specified condition F 80.8 to 86.8 mm (3.181 to 3.417 in.) 3.0 to 5.0 Ω 1/2 15.9 to 21.9 mm (0.626 to 0.862 in.) 52.0 to 58.0 Ω E 52.2 to 58.2 mm (2.055 to 2.291 in.) 106.0 to 108.0 Ω
- NG: REPLACE FUEL SENDER GAUGE ASSY
- OK: REPLACE COMBINATION METER ASSY (See COMBINATION METER ASSY )
