Combination Meter - Diagnosis: Location

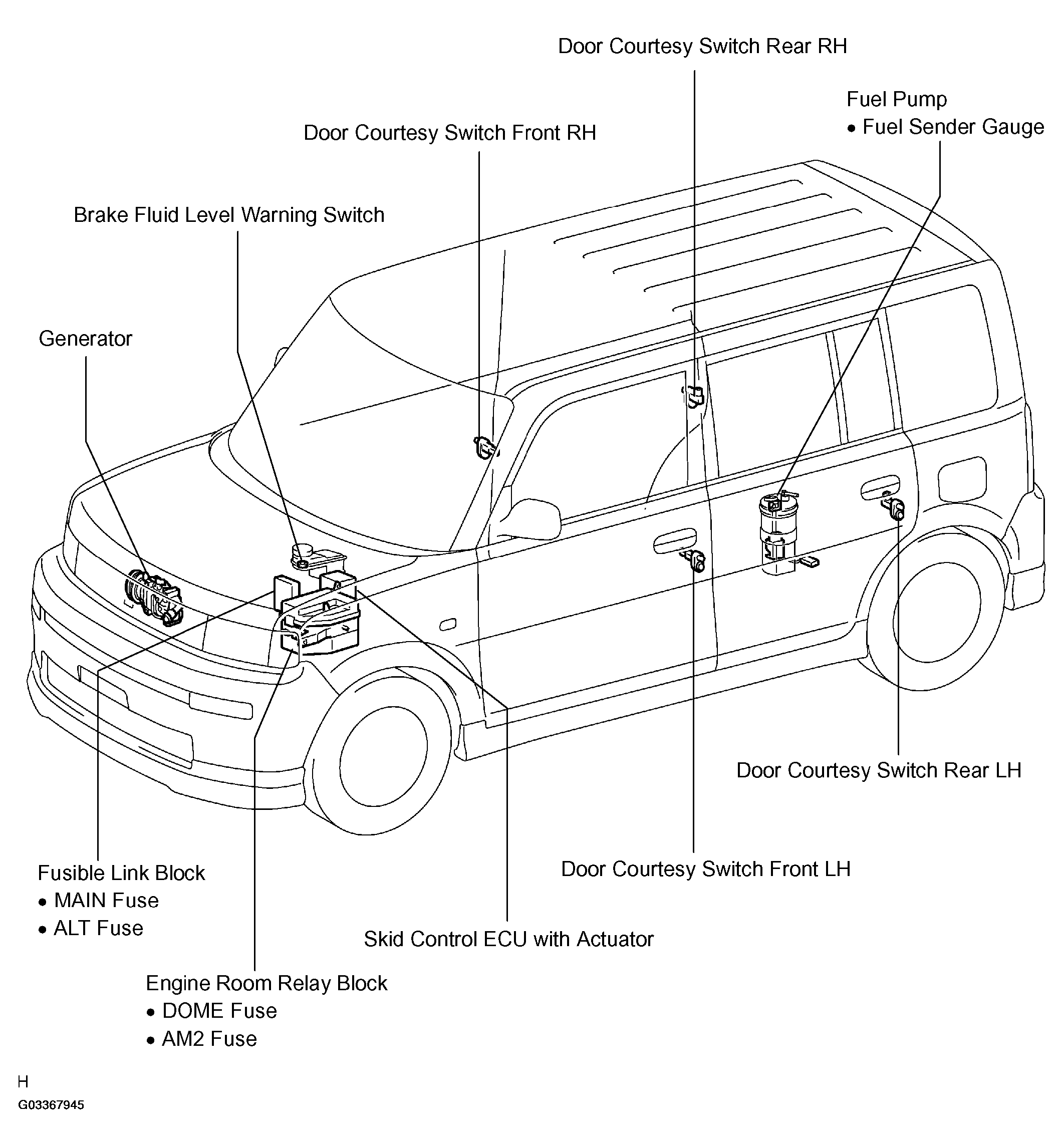

Fig 1: Identifying Location Combination Meter System Components
G03367945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

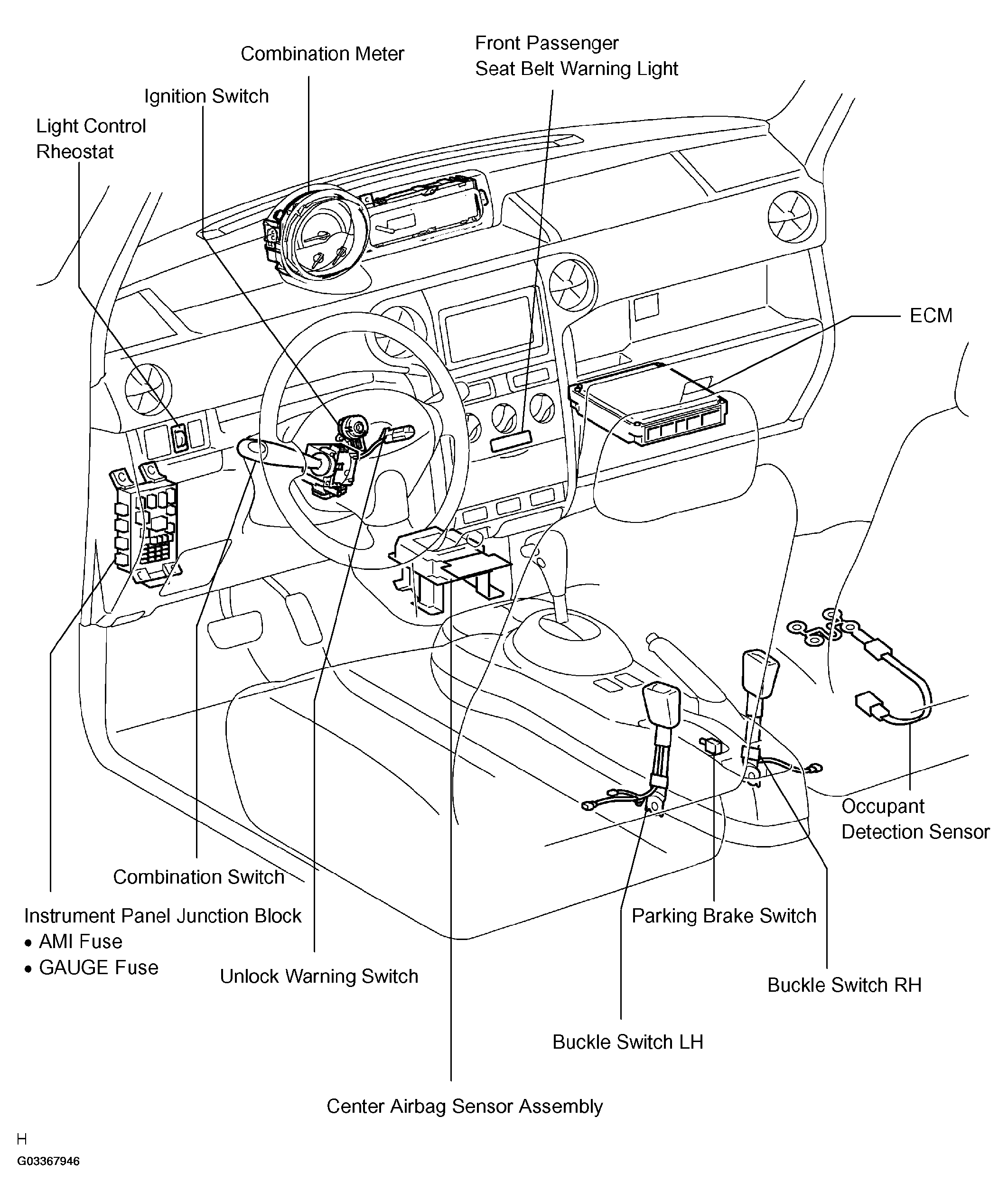

Fig 2: Identifying Location Of Combination Meter, ECM And Switches
G03367946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

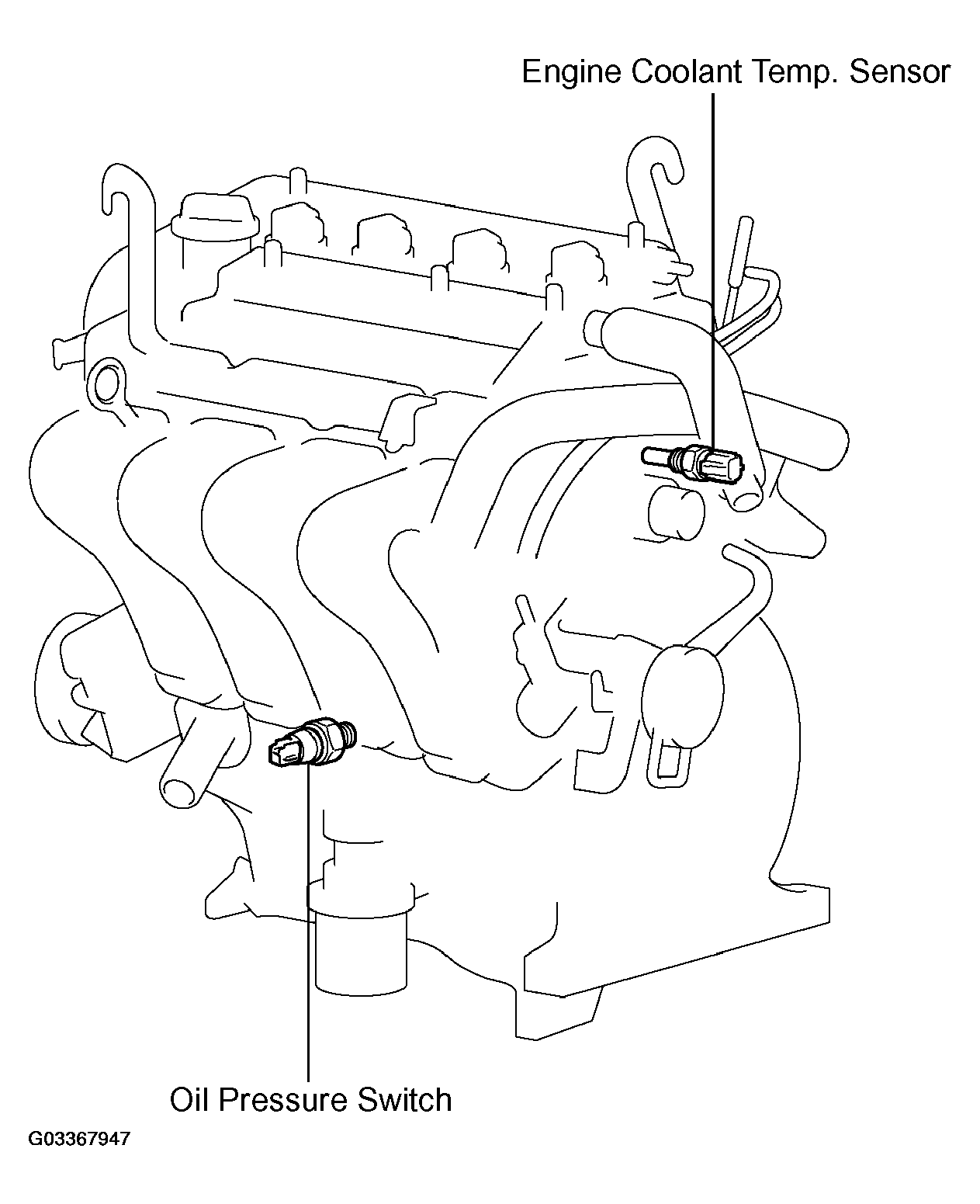

Fig 3: Identifying Engine Coolant Temperature Sensor And Oil Pressure Switch
G03367947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
