xB Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Combination Meter - Diagnosis
>>
Entire Combination Meter Does Not Operate
>>
Wiring Diagram

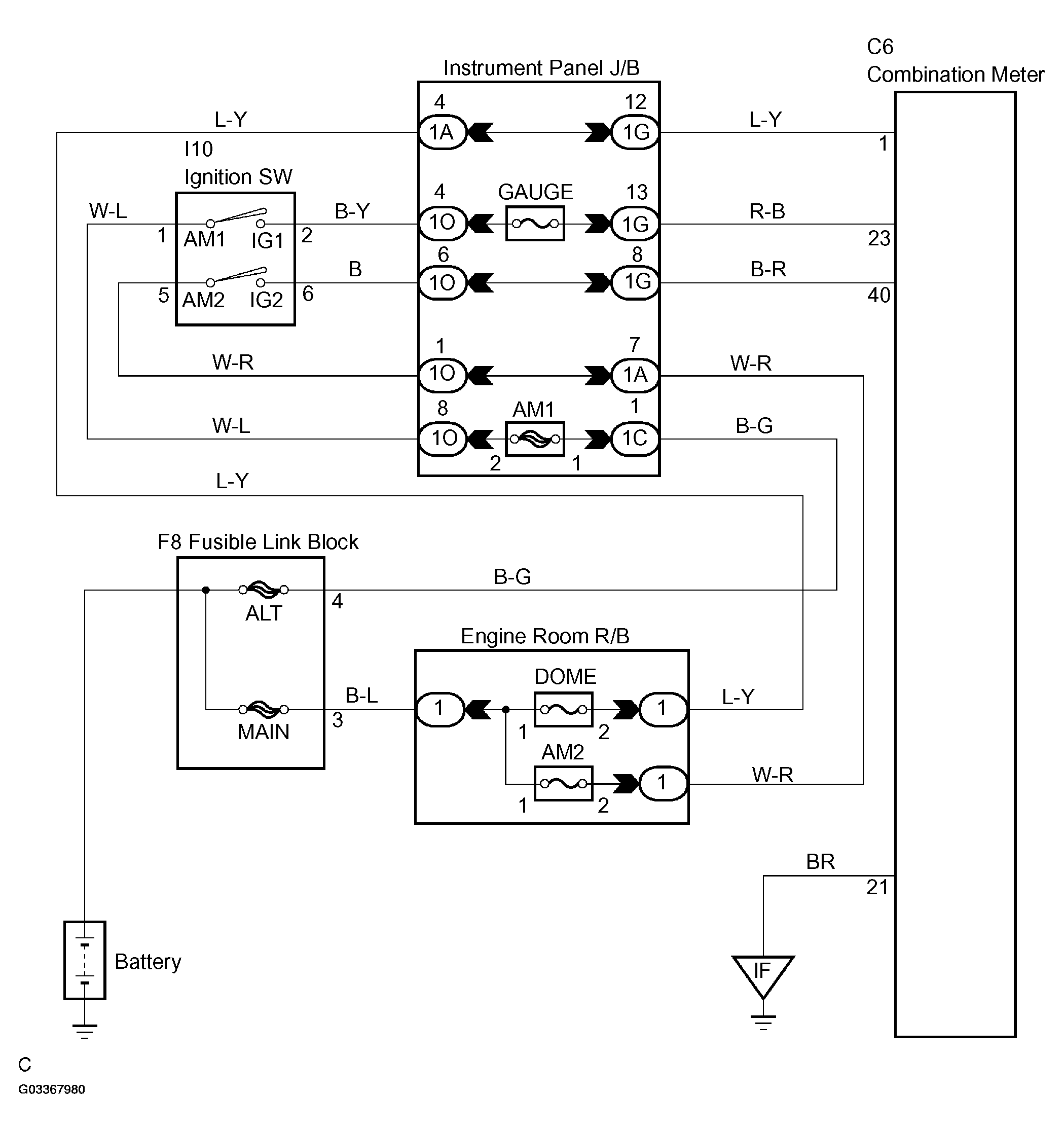

Entire Combination Meter Does Not Operate: Wiring Diagram
Fig 1: Identifying Wiring Diagram (Entire Combination Meter Does Not Operate)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
