Wiring Diagram - TAIL/L -

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see GROUND DISTRIBUTION and POWER SUPPLY ROUTING CIRCUIT .

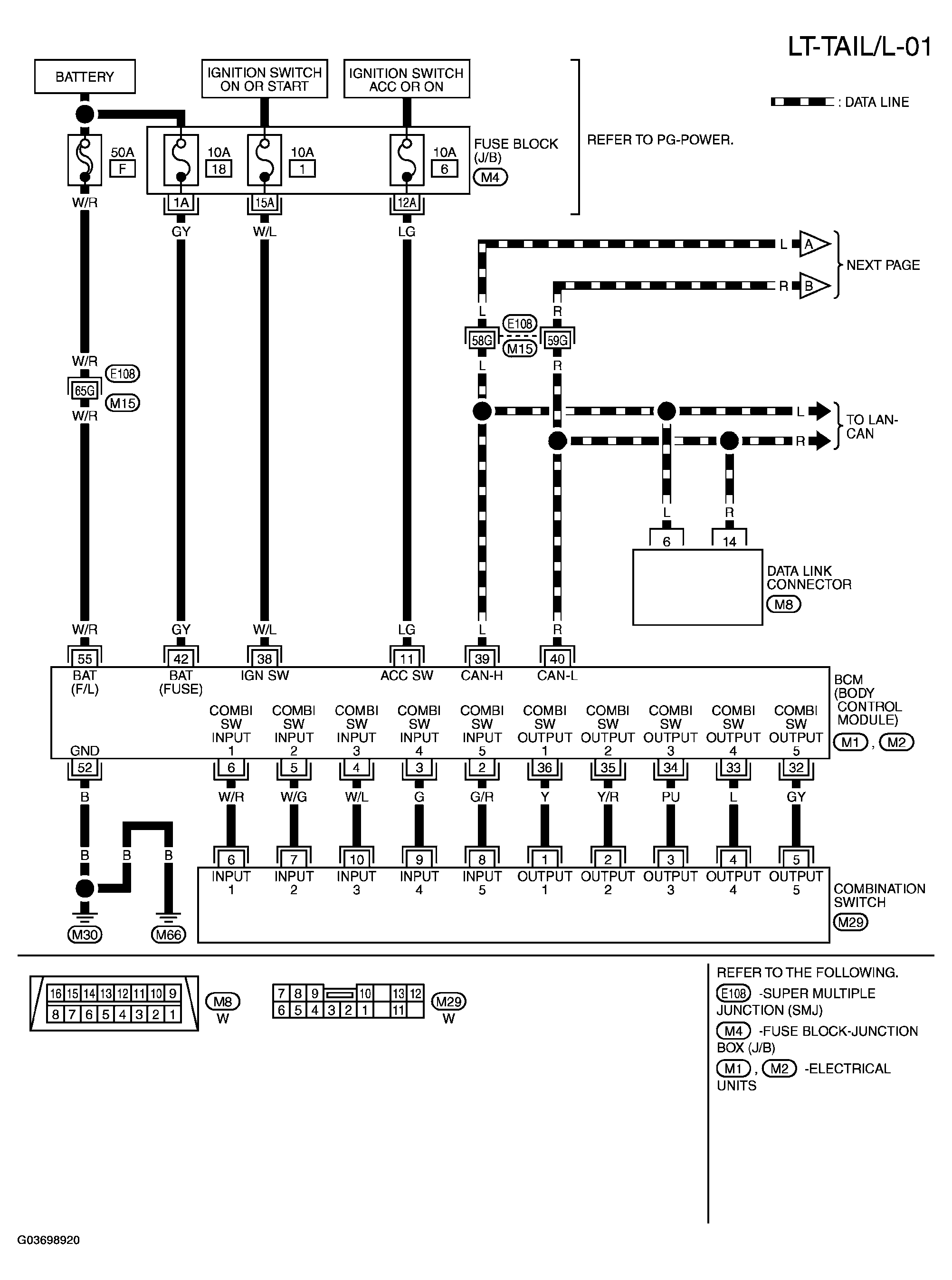

Fig 1: Wiring Diagram - LT-TAIL/L-01

Courtesy of NISSAN MOTOR CO., U.S.A.

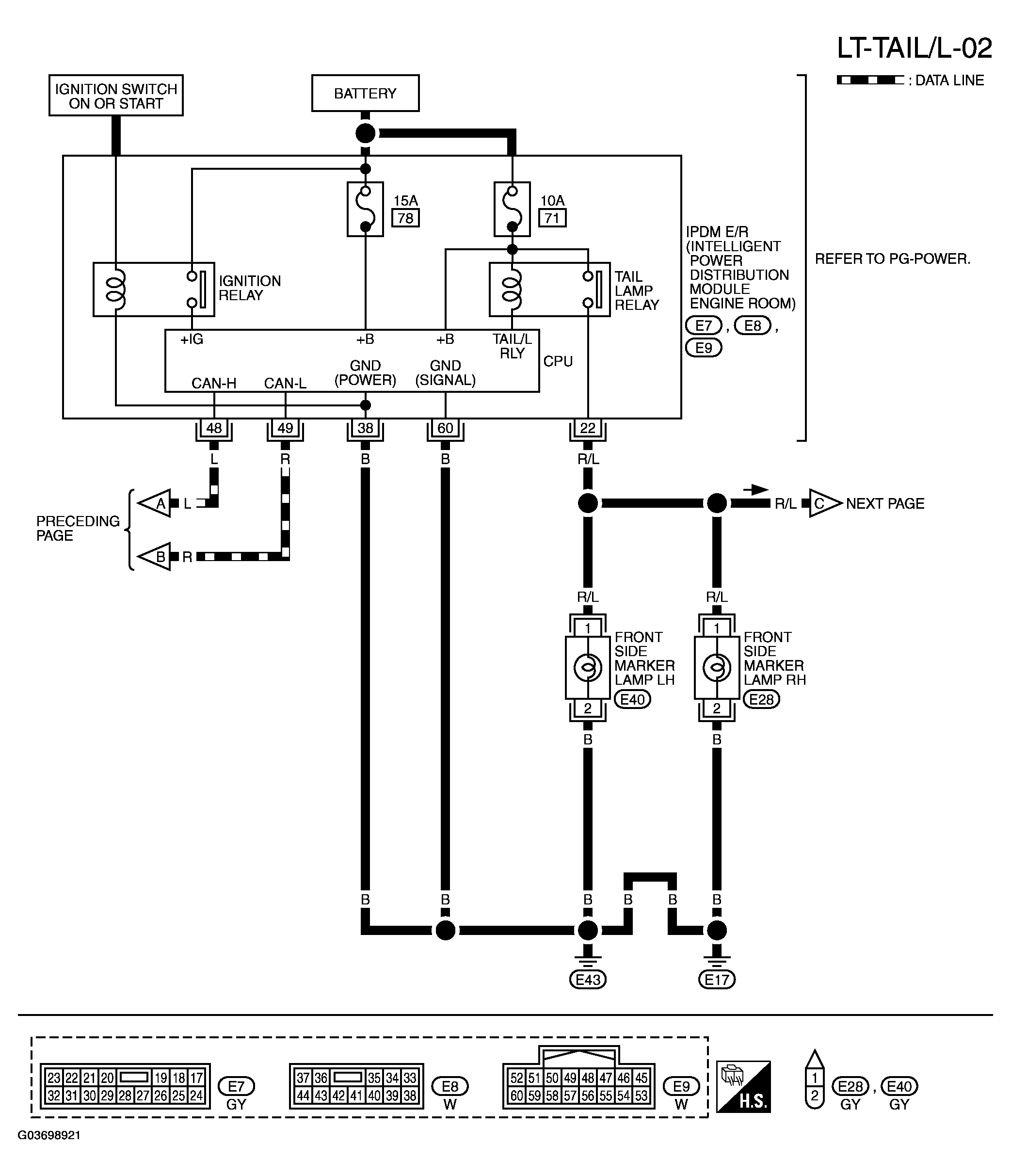

Fig 2: Wiring Diagram - LT-TAIL/L-02

Courtesy of NISSAN MOTOR CO., U.S.A.

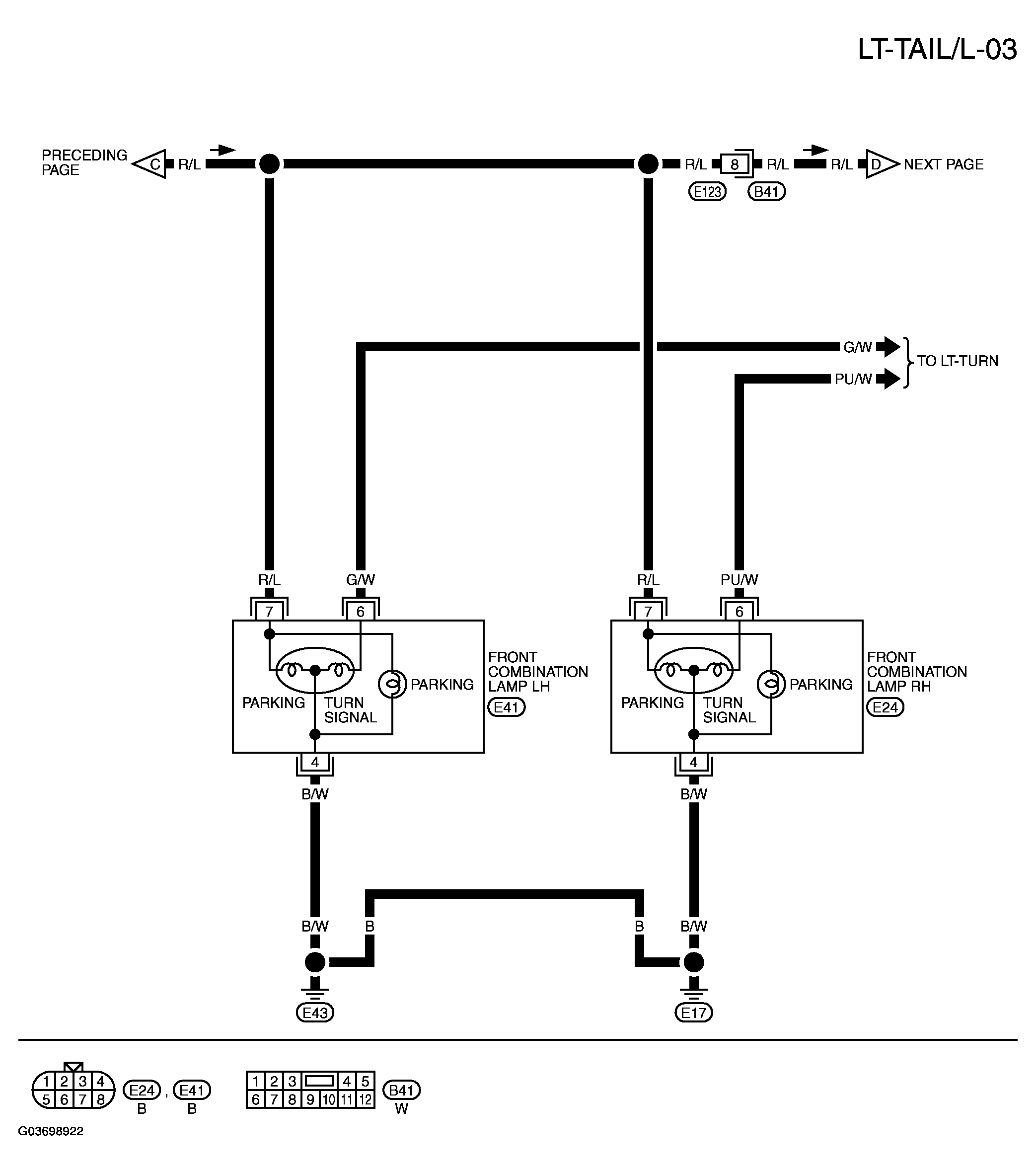

Fig 3: Wiring Diagram - LT-TAIL/L-03

Courtesy of NISSAN MOTOR CO., U.S.A.

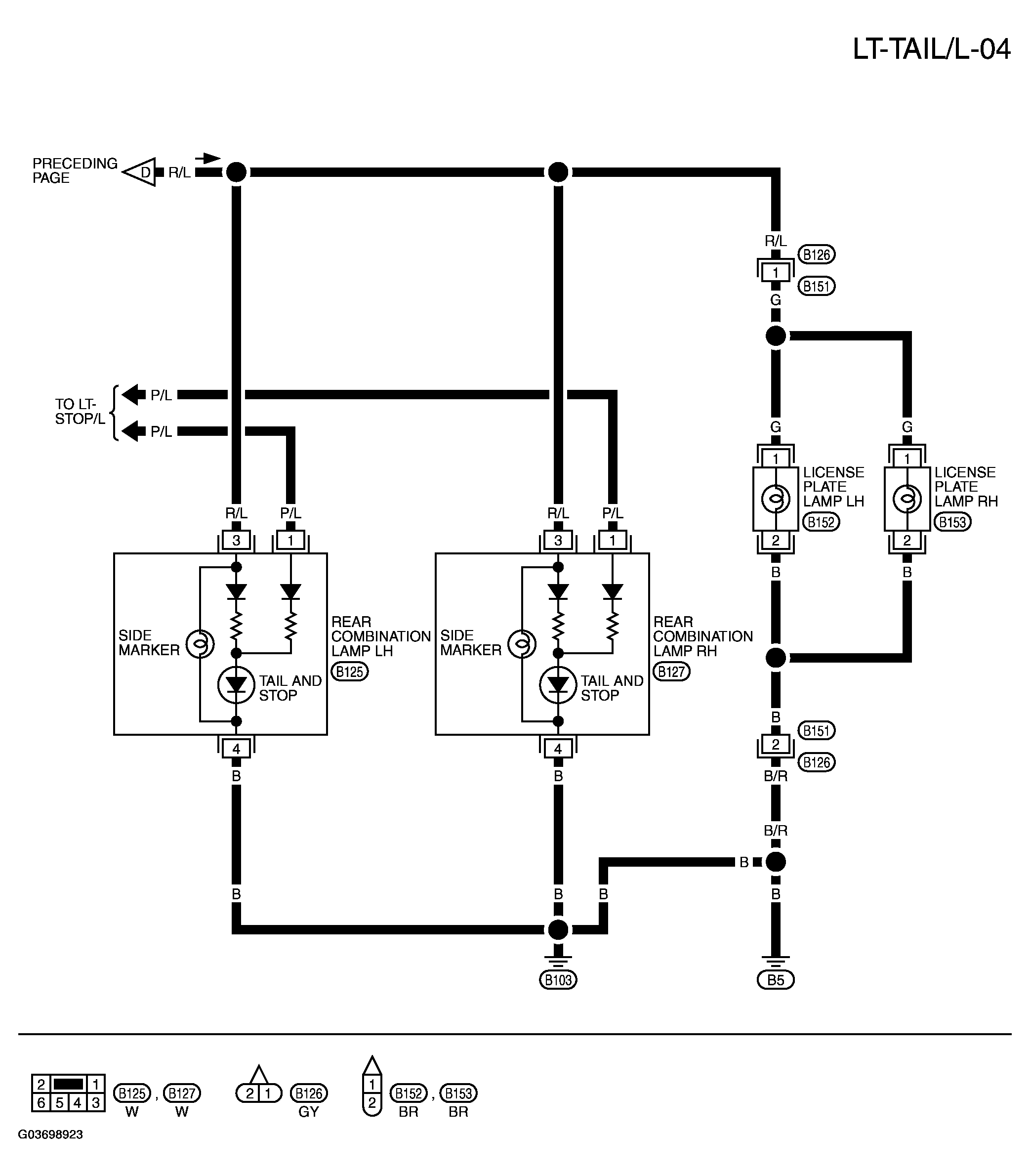

Fig 4: Wiring Diagram - LT-TAIL/L-04

Courtesy of NISSAN MOTOR CO., U.S.A.
